ASTM A335 P22 Alloy Steel Seamless Pipe for High-Temperature Use

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A335 P22

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7DAYS
Payment Terms:	L/C,T/T
Supply Ability:	1000Tons/Month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Product Name:	Alloy Steel Seamless Tube	Standard:	ASTM A335 / ASME SA335
Material:	P22,T22	O.D:	1/2" TO 24 "
End:	Plain End, Beveled End	Length:	Single Random, Double Random & Cut Length
Highlight:	ASTM A335 P22 alloy steel pipe , high-temperature seamless steel tube , alloy steel pipe with warranty

ASTM A335 Grade P22 Alloy Steel Pipe for Boiler and Superheaters

Product Specifications

Attribute	Value
Product Name	Alloy Steel Seamless Tube
Standard	ASTM A335 / ASME SA335
Material	P22, T22
O.D	1/2" TO 24"
End	Plain End, Beveled End
Length	Single Random, Double Random & Cut Length

Product Description

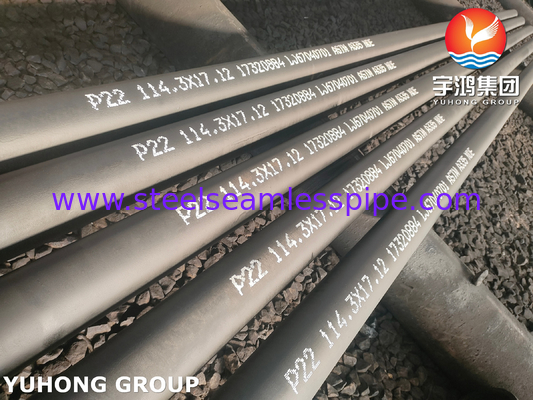

A335 P22 alloy steel pipe, made of 2.25Cr-1Mo chromium molybdenum high-temperature ferrite steel for boilers and superheaters, is a high-temperature and high-pressure pipeline material for power plants.

The chemical composition and properties of T22 and P22 alloy steel pipes are similar. T22 is used for the heating surface of boilers, in direct contact with flue gas. Seamless steel pipes are used for connecting pipes T/P22, which is equivalent to German 10CrMo910.

Standards and Materials

Category	Standards
Pipes & Tubes	ASTM A335, ASTM A213, ASTM A691
Pipes Fittings	ASTM A234
Fittings & Flanges	ASTM A182
Grades	P1/P5/P9/P11/P12/P22/P91 & T5/T9/T11/T22/T91
Form (Pipes)	Seamless / E.R.W / EFSW

Available Shapes and Sizes

Tubes & Pipes (SEAMLESS) up to 30"
Tubes & Pipes (ERW) up to 60"
Sheets / plates up to 150 MM
Rod / Bar up to 350 MM
Circle up to 1000 & Above as per your requirements
Thickness up to 200 MM & Above as per requirements

Chemical Composition (%)

Grade	C	Mn	P ≤	S ≤	Si	Cr	Mo
P11	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65
P22	0.05-0.16	0.30-0.60	0.025	0.025	≤0.50	1.90-2.60	0.87-1.13
P5	≤0.15	0.30-0.60	0.025	0.025	≤0.50	4.00-6.00	0.45-0.65
P9	≤0.15	0.30-0.60	0.025	0.025	0.25-1.00	8.00-10.00	0.90-1.10
P91	0.08-0.12	0.30-0.60	0.020/0.010	0.020/0.010	0.02-0.50	8.00-9.50	0.85-1.05
P92	0.07-0.13	0.30-0.60	0.020/0.010	0.020/0.010	≤0.50	8.50-9.50	0.30-0.60

Mechanical Properties

Grade	Tensile strength	Yield strength	Elongation
P11, P22, P5, P9	≥415	≥205	≥30/20
P91	≥585	≥415	≥20
P92	≥620	≥440	≥20

Applications

Pharmaceutical equipment
Chemical equipment
Sea water equipment
Heat exchangers
Condensers
Pulp and paper industry
Off-shore oil drilling companies
Power generation
Petrochemicals
Gas processing
Specialty chemicals

Product Summary

ASTM A335 P22 alloy steel pipe is a 2.25% chromium-1% molybdenum high-temperature ferritic alloy steel seamless pipe with a stable and reliable performance and mature application, capable of maintaining excellent strength, creep resistance, and oxidation corrosion resistance in high-temperature and high-pressure environments below 593°C (1100°F). Its rigorous heat treatment and sophisticated welding process control make it widely used in key high-temperature components in power plant boilers, petrochemicals, and other fields.
