ASTM B163 UNS N08825 Nickel Alloy Tube Incoloy 825 Seamless Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B163 Incoloy 825 (NO8825) DIN 2.4858

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Product Name:	Nickel Alloy Tube	Standard:	ASTM B163 / ASME SB163
Material:	Incoloy 825 / UNS N08825 / DIN 2.4858	O.D.:	1/4", 3/8", 1/2", 5/8", 1", 1 1/4", Etc
W.T.:	BWG 10, 12, 14, 16, 18, 20, Etc	Length:	Single Random, Double Random & Cut Length
Shape:	Straight Tube, U Bend Tube	NDT:	EDDY CURRENT TEST, HYDROSTATIC TEST
Type:	Seamless	Application:	Boiler, Heat Exchanger, Chemical Process Equipment, Etc.
Highlight:	no8825 heat exchanger tube , astm b163 incoloy 825 tube , din 2.4858 incoloy 825 tube

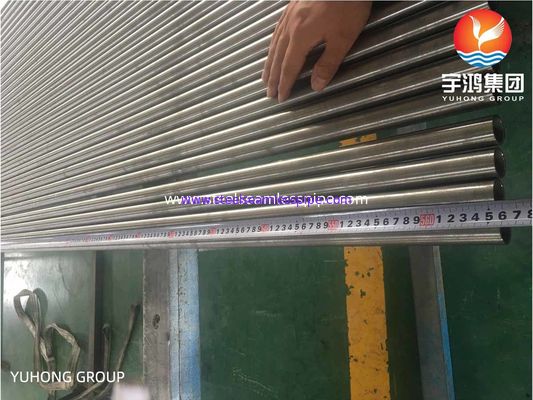

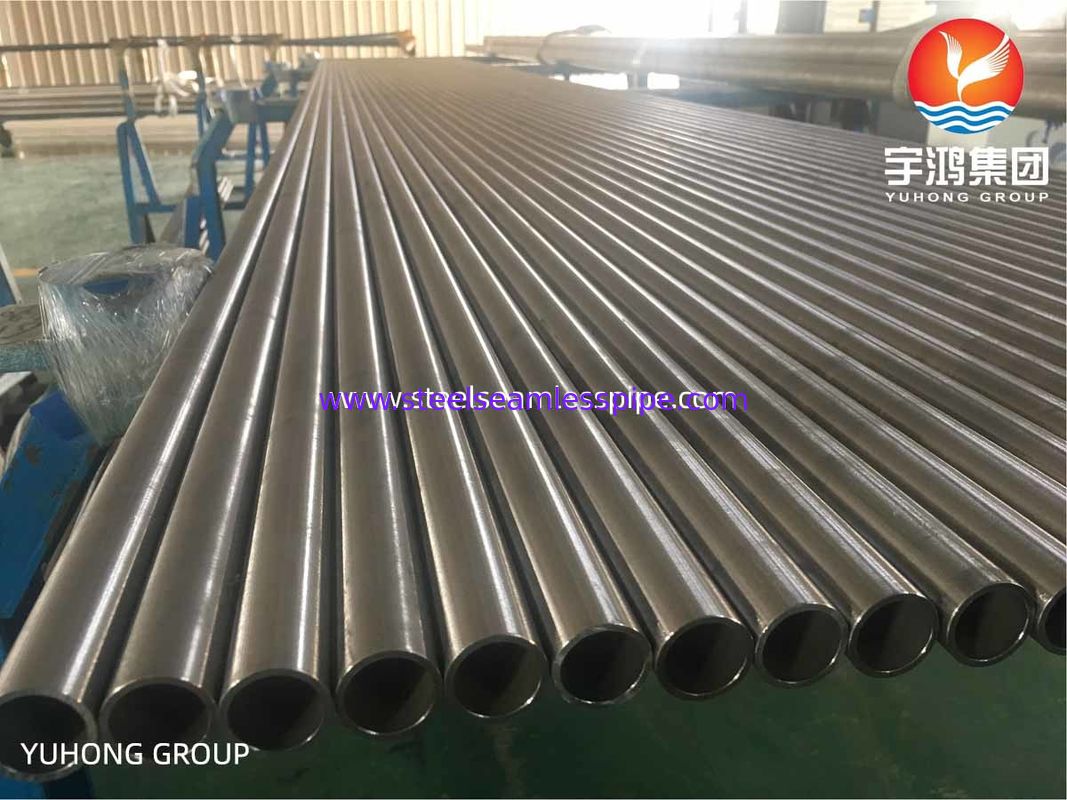

ASTM B163 UNS N08825 / DIN 2.4858 / Incoloy 825 Seamless Nickel Alloy Heat Exchanger Tube

ASTM B163 Incoloy 825 seamless tube represents a high-performance, corrosion-resistant product designed and manufactured to exacting standards for critical service in heat exchangers, condensers, and demanding process environments where reliability under pressure and corrosion is paramount. Its seamless construction and the proven properties of Incoloy 825 make it a cornerstone material for challenging industrial applications.

Sizes: Typically covers a wide range of OD and wall thickness combinations common for heat exchanger tubing (e.g., OD from ~1/4" to 3"+, WT as per schedule or BWG).

Temper: Usually supplied in the solution annealed condition (as required by ASTM B163 for corrosion resistance).

Chemical Composition of ASTM B163 Incoloy 825 Seamless Nickel Alloy tube

Element	%	Element	%
Nickel	38.0 – 46.0	Carbon	0.05 max
Chromium	19.5 – 23.5	Manganese	1.0 max
Molybdenum	2.5 – 3.5	Sulfur	0.03 max
Copper	1.5 – 3.0	Silicon	0.5 max
Titanium	0.6 – 1.2	Aluminium	0.2 max
Iron	22.0 min (~33%)

Mechanical Property of ASTM B163 Incoloy 825 Seamless Nickel Alloy tube

Form	Condition	0.2% Proof Stress MPa	Tensile Strength MPa	Elong %
Tube	Annealed	440	770	35
Tube	Cold drawn	880	1000	15
Bar	Annealed	325	690	45
Plate	Annealed	340	660	45
Sheet	Annealed	420	760	39

Primary Properties:

Excellent Corrosion Resistance: Specifically designed for harsh environments.
- Resists sulfuric & phosphoric acids.
- Excellent resistance to chloride-ion stress-corrosion cracking (SCC).
- Good resistance to reducing and oxidizing acids.
- Resists corrosion in seawater, brine, sour gas (H2S), and caustic solutions.
Good Mechanical Properties: High strength and toughness across a wide temperature range.
High-Temperature Stability: Suitable for service up to approximately 540°C (1000°F) in many environments.
Fabricability: Good weldability and formability using standard techniques for nickel alloys

ASTM specifications for Incoloy Alloy 825.

Specification	Title
B163	Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
B423	Nickel-Iron-Chromium-Molybdenum-Copper Alloy (UNS N08825 and N08221)* Seamless Pipe and Tube
B424	Ni-Fe-Cr-Mo-Cu Alloy (UNS N08825 and UNS N08221)* Plate, Sheet, and Strip
B425	Ni-Fe-Cr-Mo-Cu Alloy (UNS N08825)
B704	Welded UNS N06625 and UNS N08825 Alloy Tubes
B705	Nickel-Alloy (UNS N06625 and N08825) Welded Pipe
B751	General Requirements for Nickel and Nickel Alloy Welded Tube

Application

Shell & Tube Heat Exchangers / Condensers
Feedwater Heaters
Process Piping in Chemical & Petrochemical Plants (handling acids, chlorides, H2S)
Offshore Oil & Gas Production Systems (seawater cooling, process fluids)
Flue Gas Desulfurization (FGD) Systems
Acid Production, Handling, and Recovery
Seawater Handling Equipment
Nuclear Fuel Reprocessing
