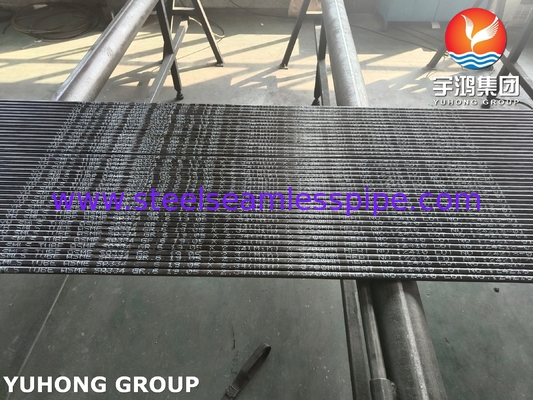

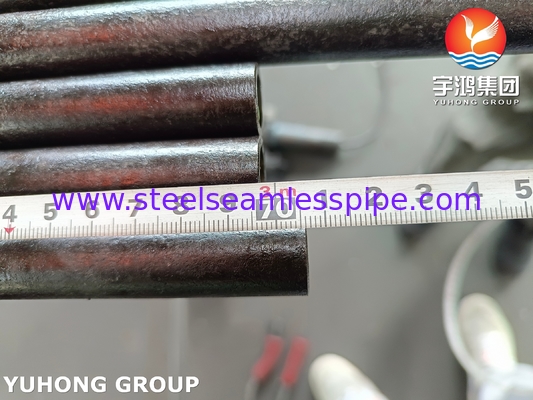

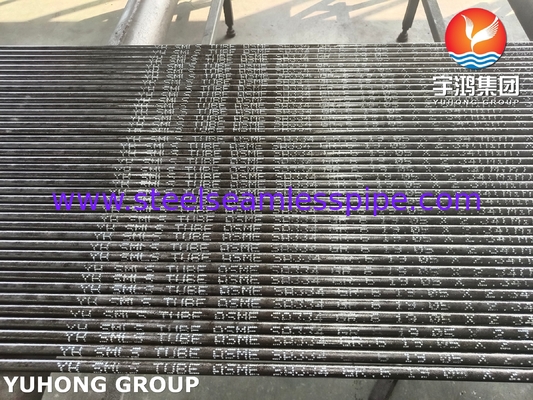

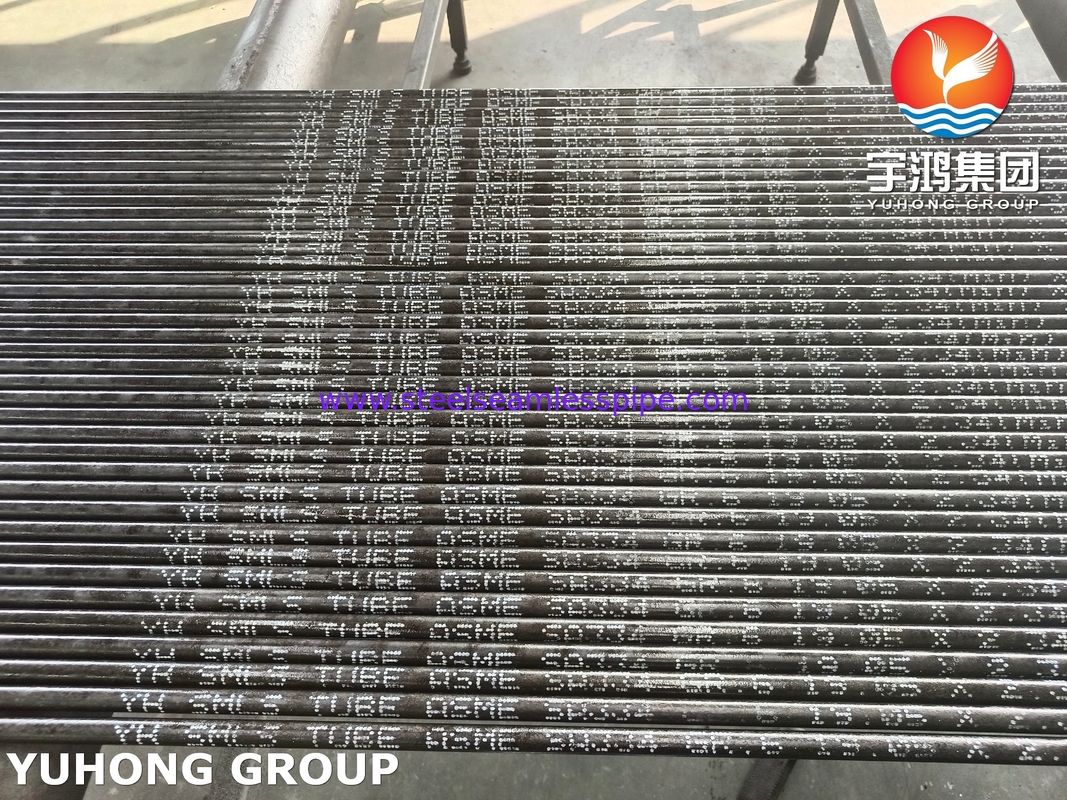

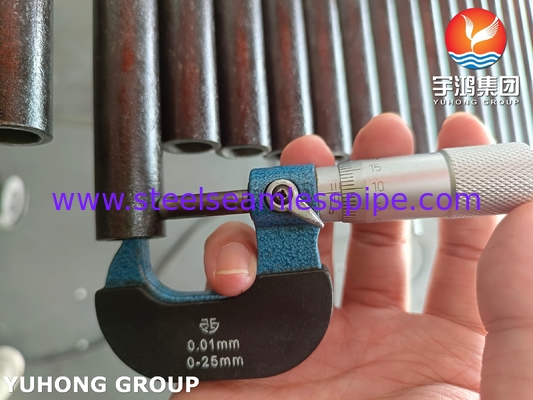

ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service

ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service

  • ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service
  • ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service
  • ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service
  • ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service
ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SA334 Gr.6
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: Negotiable
Packaging Details: Plywooden Case /Iron Case
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 1500 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (288)
Stainless Steel Seamless Tube (276)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (105)
Fin Tube (626)
Heat Exchanger (17)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (79)
Copper Alloy Tube (224)
Alloy Steel Tube (183)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (143)
Steel Fitting (801)
Steel Flange (588)
Others (388)
Cladding Parts (7)
Detailed Product Description
Standard: ASME SA334 Grade: Gr.6
Type: Seamless, Weld Application: Low Temperature Service
​​Mechanical Tests: Tensile Test， Hardness Test ， Flattening Test ， Bend Test Non-Destructive Tests: Ultrasonic Testing (UT) ， Eddy Current Testing (ET) ， Radiographic Testing (RT) ， Hydrostatic Pressure Test
Highlight:

ASME SA334 Nickel Alloy Tube

,

Low Temperature Service Steel Tube

,

Seamless Nickel Alloy Steel Tube

ASME SA334 Gr.6 Seamless Nickel Alloy Steel Tube for Low Temperature Service



Yuhong specializes in manufacturing ​​ASME SA334 Gr.6 seamless nickel alloy steel tubes​​, utilizing advanced metallurgical and forming processes to ensure superior material integrity and performance in low-temperature environments. The production involves precise heat treatment to optimize mechanical properties, followed by stringent non-destructive testing to guarantee defect-free quality.

Yuhong company adheres to international standards, offering certified products with optional supplementary testing to meet specific project requirements. Customization is available for specialized dimensions and additional quality verifications, ensuring compatibility with global engineering specifications for low-temperature service.

Chemical Composition Requirements for Grade 6



Element Requirement (%)
Carbon, max 0.3
Manganese 0.29 - 1.06
Phosphorus, max 0.025
Sulfur, max 0.025
Silicon, min 0.1

Mechanical Requirements for Grade 6 (SA-334/SA-334M)​



Property ksi MPa
Tensile Strength, min​​ 60 415
Yield Strength, min​​ 35 240
Elongation Requirements:​​
Basic minimum elongation (walls ≥5/16" [8mm]) 30% 30%
Standard round specimen (4D gage length) 22% 22%
Strip test deduction (per 1/32" [0.8mm] below 5/16") 1.50% 1.50%

Maximum Hardness Number​



Grade Rockwell Brinell
1 B 85 163
3 B 90 190
6 B 90 190
7 B 90 190
8 ... ...
11 B 90 190

​​Advantages of ASME SA334 Gr.6 Seamless Nickel Alloy Steel Tube for Low Temperature Service​

  1. Superior Low-Temperature Toughness​​
  2. High Strength and Reliability​​
  3. Excellent Fabrication and Weldability​​
  4. Broad Application Compatibility​​
  5. Rigorous Quality Assurance​​

ASME SA334 Gr 6 Seamless Nickel Alloy Steel Tube for Low Temperature Service 0
