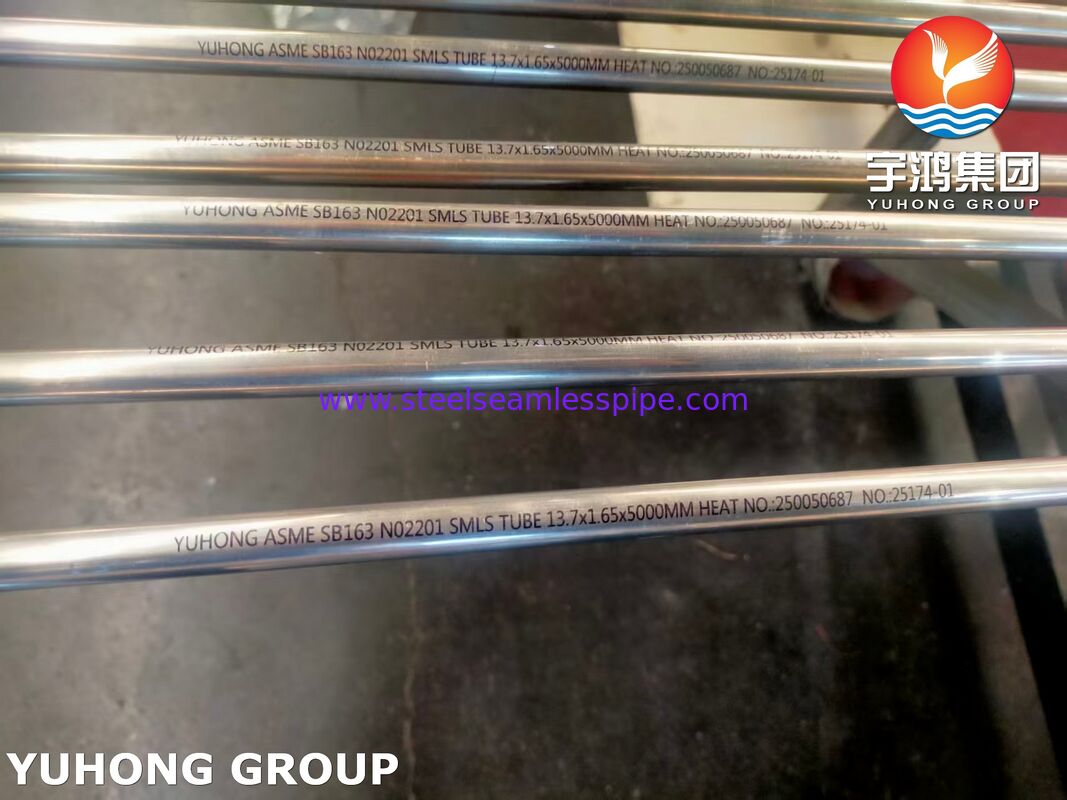

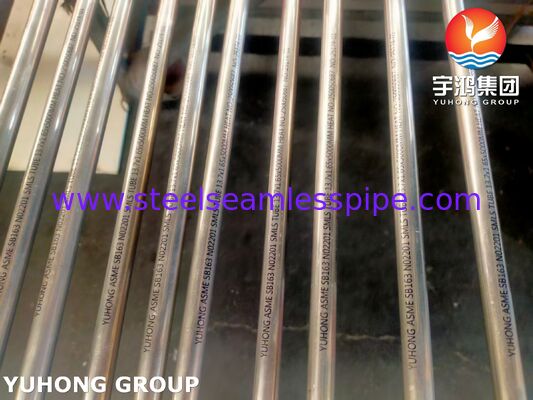

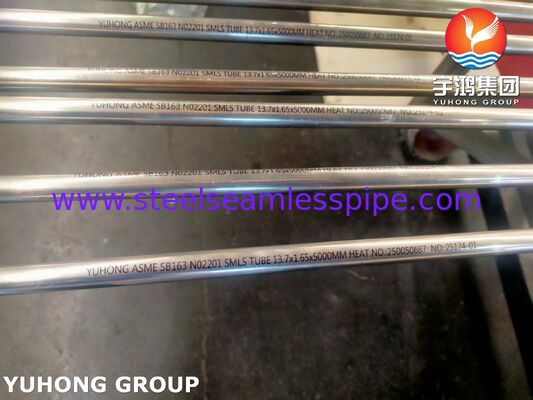

ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers

ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers

  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
  • ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
ASME SB163 N02201 Seamless Tube for Heat Exchangers & Condensers
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASME SB163 N02201
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable

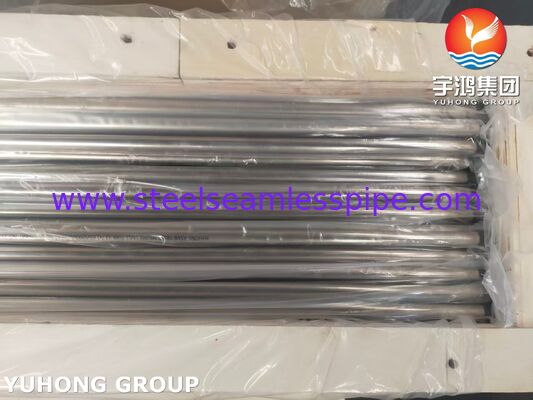

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time: Depends on quantity
Payment Terms: ,L/C,T/T
Supply Ability: 1000 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Standard & Equivalent Standards: ASME SB163 / ASTM B163 Material Grade & Equivalents: UNS N02201 / Nickel Alloy 201
Non-Destructive Testing (NDT): Hydrostatic Test, Eddy Current Test Product Type: Seamless Nickel Alloy Tube
Outer Diameter (OD):: 1/8" - 8" (3.18mm - 203.2mm) Wall Thickness (WT): 0.015" - 0.5" (0.38mm - 12.7mm)
Typical Applications: Chemical Processing Equipment, Petrochemical Plants, Aerospace Components, Marine Engineering, Nuclear Power
Highlight:

ASME SB163 N02201 seamless nickel tube

,

nickel alloy tube for heat exchangers

,

N02201 condenser tube with warranty

ASME SB163 N02201 Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes


N02201 Seamless Tube: Nickel Alloy Excellence


ASME SB163 N02201 (UNS N02201) seamless tubing offers exceptional purity (>99% nickel), outstanding thermal/electrical conductivity, and superior corrosion resistance in reducing and alkaline environments. Ideal for high-temperature applications up to 600°C (1,112°F), this low-carbon variant minimizes carbide precipitation, ensuring stability in critical industrial processes.


N02201 Chemical Composition Purity


The high-nickel chemistry guarantees resistance to caustic solutions, organic acids, and chlorine ions.


Element Ni C Mn Fe Si S Cu
% Min 99.0 – – – – – –
% Max – 0.02 0.35 0.40 0.35 0.01 0.25



Global Material Equivalents for N02201 Alloy


Standard UNS EN DIN/W.Nr. JIS
Grade N02201 Ni 99.2 2.4061 NW 2201


N02201 Mechanical Strength & Formability


Optimized for ductility in annealing conditions:


Property Value
Tensile Strength ≥ 380 MPa (55 ksi)
Yield Strength (0.2% OS) ≥ 103 MPa (15 ksi)
Elongation (50mm Gauge) ≥ 40%
Hardness (Rockwell B) ≤ 65 HRB

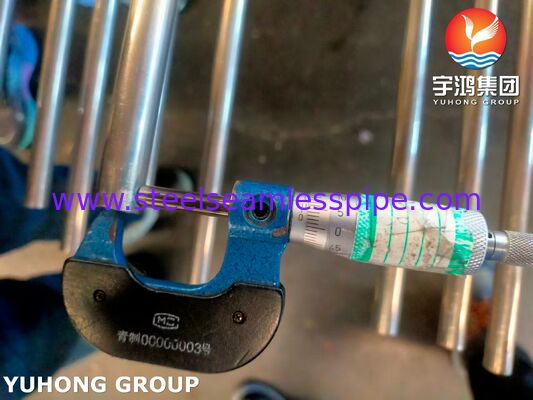

Precision Tolerances for NICKEL 201 Tubes


Manufactured to ASME SB163 dimensional standards:


Parameter Tolerance (±)
Outer Diameter ≤25.4mm: 0.10mm
>25.4mm: 0.5% of OD
Wall Thickness 10% of nominal wall
Length (Cut) +3.2mm / -0mm
Straightness 0.5mm per 1m length


N02201 Industrial Applications


Deployed where purity and corrosion resistance are critical:


  • Chemical Processing: Reactors, heat exchangers handling caustic soda, chlorine.


  • Electronics: Semiconductor furnace components, lead frames.


  • Aerospace: Hydraulic lines, fuel injection systems.


  • Food/Pharma: Distillation columns, ultra-pure fluid transfer.


  • Energy: Molten salt reactors, alkaline fuel cells.
