| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |

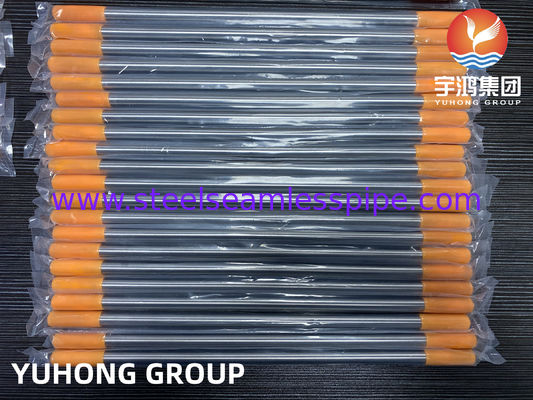

| Model Number: | ASME SA249/ASTM A249 TP316/316L/316H/316TI BA TUBE |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | according to quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Tons Per Month |
| Material Grade: | TP316/316L/316H/316TI | Standard: | ASTM A249/ASME SA249 |
|---|---|---|---|
| Certificate: | ABS, BV , LR , DNV , KR, Rina , ISO , TS, NACE 0175 | NDT: | ET, UT, HT, PT |
| High Light: | bright annealed stainless steel tube,stainless steel coil tube |
||
Overview
SS 316L Tubes is an improved version of Alloy 304, with the addition of molybdenum and slightly higher nickel content. The resultant composition of AISI 316L Tubes gives the steel much increased corrosion resistance in many aggressive environments. The molybdenum makes Type 316L Pipes more resistant to pitting and crevice corrosion in chloride-contaminated media, sea water and acetic acid vapours. The lower rate of general corrosion in mildly corrosive environments gives Type 316L Tubes good atmospheric corrosion resistance in polluted marine atmospheres.
It is the preferred steel for use in marine environments because of its greater resistance to pitting corrosion than other grades of steel. The fact that it is negligibly responsive to magnetic fields means that it can be used in applications where a non-magnetic metal is required. In addition to molybdenum, 316 also contains a number of other elements in varying concentrations. Like other grades of stainless steel, marine grade stainless steel is a relatively poor conductor of both heat and of electricity when compared to metals and other conductive materials.
| Grade | 316/316H/316L | |
|---|---|---|
| min | max | |
| C | – | 0.035 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | – |
| Grade | 316/316H/316L | |
|---|---|---|
| Tensile Strength (MPa) min | 515 | |
| Yield Strength 0.2% Proof (MPa) min | 205 | |
| Elongation (% in 50mm) min | 40 | |
| Hardness | Rockwell B (HR B) max | 95 |
| Brinell (HB) max | 217 | |
| Grade | 316/316H/316L | |
|---|---|---|
| Density (kg/m3) | 7750 | |
| Elastic Modulus (GPa) | 200 | |
| Mean Coefficient of Thermal Expansion (m/m/0C) | 0-1000C | 15.9 |
| 0-3150C | 16.2 | |
| 0-5380C | 17.0 | |
| Thermal Conductivity (W/m.K) | at 1000C | 14.2 |
| at 5000C | 18.7 | |
| Specific Heat 0-1000C (J/kg.K) | 500 | |
| Electrical Resistivity (n.m) | 720 | |
| STANDARD | SS 316/316H/316L |
| WERKSTOFF NR. | 1.4401 |
| UNS | S31600 |
| JIS | SUS 316 |
| BS | 316S31 |
| GOST | – |
| AFNOR | Z7CND17‐11‐02 |
| EN | X5CrNiMo17-12-2 |
