ASTM A213 ASME SA213 TP304 / 304L/TP316 /TP316L Stainless Steel Heat Exchanger Tube Pickled And Annealed Surface Seamless Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG HOLDING GROUP
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317

Payment & Shipping Terms:

Minimum Order Quantity:	100kgs
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10 days
Payment Terms:	L/C, T/T
Supply Ability:	According to customer's request

Contact Now

All Products

Stainless Steel Seamless Pipe (324)

Stainless Steel Seamless Tube (318)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (149)

Fin Tube (692)

Heat Exchanger (23)

Heat Exchanger Tube (456)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (59)

Stainless Steel Welded Tube (127)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (18)

Bright Annealed Tube (171)

Boiler Tube (151)

Steel Fitting (852)

Steel Flange (650)

Others (404)

Cladding Parts (8)

Detailed Product Description

Specification:	ASTM A213/A213M-2013 , ASME SA213/SA213M-2013 , A789 , SA789	Material:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Type:	Straight Tube , U Bend Tube, Coil Tube	Surface:	Bright Annealed, Pickled And Annealed , Polished
Package:	PLY-WOODEN CASE
Highlight:	heat exchanger pipe , heat recovery pipe

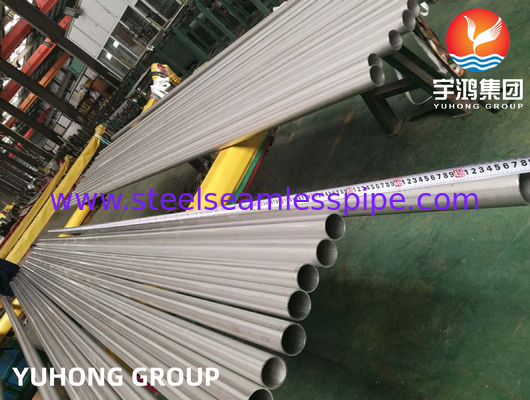

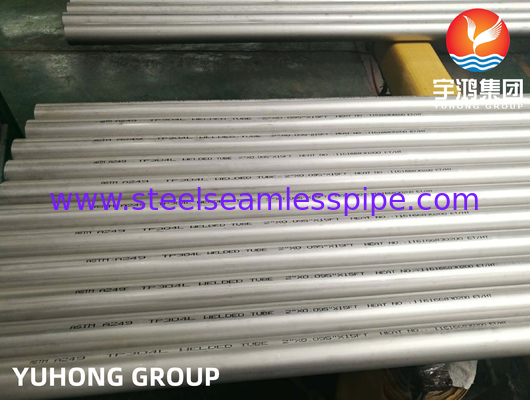

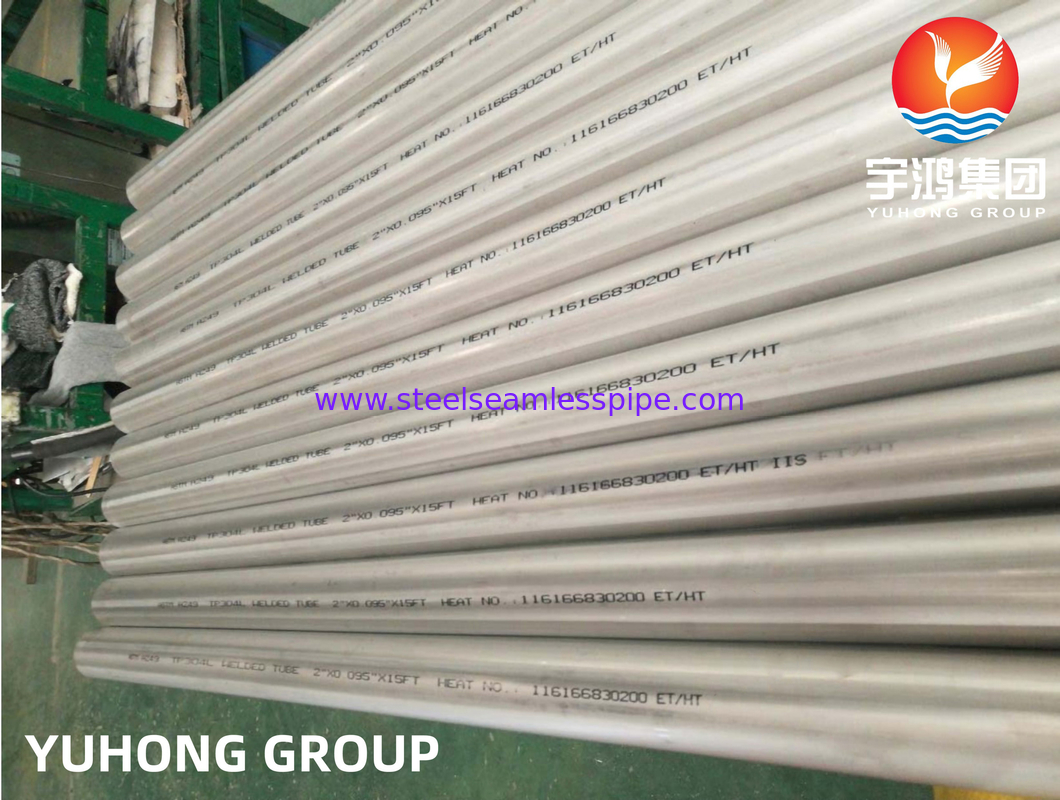

TP304 / 304L/TP316 /TP316L Stainless Steel Heat Exchanger Tube Pickled And Annealed Surface Seamless And Welded Tube

YUHONG GROUP we are one of the leading manufacturers of Stainless steel tube and pipe for Heat Exchanger ,Oil and Gas Application .Witth More Than 35 years' experience we have exporting more than 85 counftries and won the great praise from our clients all around the world .

Stainless steel seamless tube Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-

Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A789/A789M, ASME SA789/SA789M Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

Other Standard:DIN 17456 , DIN 17458, EN10216-5, JIS-G3463,...

Stainless steel seamless tube Size Range:

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Stainless steel seamless tube Final Finishing

Solution Annealed & Pickled/Bright Annealed.

Type of Tubes:

U-bend & Straight.

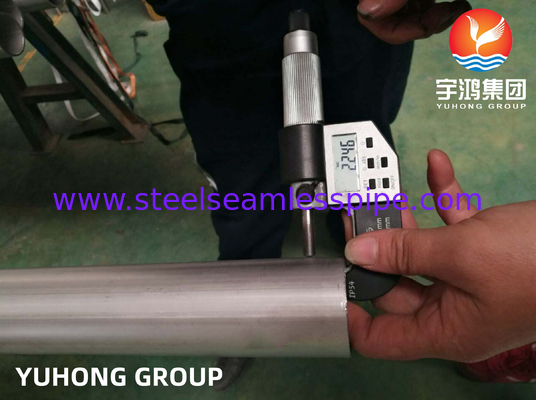

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client

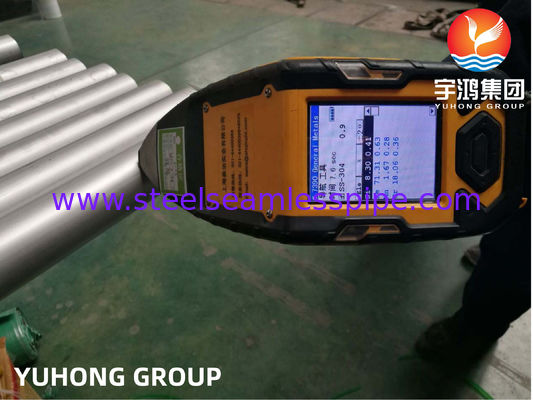

Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections
