ASTM A268 UNS S41000 TP410 Stainless Steel Seamless Tube Steel Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, ISO 9001-2008, GL, DNV, BV, NK, PED, AD 2000, GOST9941-81
Model Number:	ASTM A268 TP410 Stainless Steel Seamless Tube

Payment & Shipping Terms:

Minimum Order Quantity:	1000KGS
Packaging Details:	Plywood Case /Iron Case/ Bundle with plastic Cap/requirements
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (350)

Stainless Steel Seamless Tube (346)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (172)

Fin Tube (750)

Heat Exchanger (41)

Heat Exchanger Tube (480)

Heat Exchanger Tube Bundle (55)

Heat Exchanger Tubesheet (130)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (135)

Nickel Alloy Pipe (275)

Nickel Alloy Tube (110)

Copper Alloy Tube (258)

Alloy Steel Tube (224)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (163)

Steel Fitting (881)

Steel Flange (683)

Others (412)

Cladding Parts (9)

Detailed Product Description

Product Name:	Stainless Steel Seamless Tube	Standard:	ASTM A268, ASME SA268
Material:	UNS S41000 , TP410	OD:	1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc.
WT:	BWG 25, 22, 20, 18 ... 10	Length:	Single Random, Double Random & Cut Length
End:	Beveled End, Plain End	Type:	Seamless
Application:	Heat Exchanger, Heater, Condenser, Machining, Bearing Machining, API Service	Highlight:	ASTM A268 TP410 Stainless Steel Seamless Tube, TP410 Heat Exchanger Tube
Highlight:	ASTM A268 stainless steel seamless tube , ferritic stainless steel tube UNS S41000 , EN 1.4006 seamless steel tube

ASTM A268 TP410 / UNS S41000 / EN 1.4006 Ferritic Stainless Steel Seamless Tube for Heat Exchanger

ASTM A268 UNS S41000 TP410 seamless tube is a martensitic stainless steel tubular product, manufactured without a weld seam, specifically intended for use in heat exchangers operating at moderate temperatures (≤600°C) and pressures, offering good oxidation resistance, high tensile strength, and superior wear resistance, but requiring strict control of thermal cycling to avoid 475°C embrittlement and mandatory PWHT for any welded fabrication. Each tube shall pass the flattening test and flaring test per ASTM A268. Supplementary requirement S1 (hydrostatic test) or S5 (eddy-current test) applies per ASTM A1016.

Equivalent Grades of ASTM A268 UNS S41000 TP410 Stainless Steel Seamless Tube Heat Exchanger Tube

Grade	UNS No	Euronorm		Swedish	Japanese
		No	Name	SS	JIS
410	S41000	1.4006	X12Cr13	-	SUS410

Chemical compositions of ASTM A268 UNS S41000 TP410 Stainless Steel Seamless Tube Heat Exchanger Tube

Grade	C	Si	Mn	P	S	Cr	Ni	N
TP410, UNS S41000	0.15 max	1.00 max	1.00 max	0.040 max	0.030 max	11.5~13.5	-	-

Mechanical properities of ASTM A268 UNS S41000 TP410 Stainless Steel Seamless Tube Heat Exchanger Tube

Tensile strength

(MPa) min.

Yield strength

(MPa) min.

Elongation

(%)min.

Hardness

Rockwell B

(HR B) max

Brinell

(HB) max

415

205

207

Other Material Grades

American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

GOST

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Applications

1. Off-Shore Oil Drilling Companies

2. Power Generation

3. Petrochemicals

4. Gas Processing

5. Specialty Chemicals

6. Pharmaceutical Equipment

7. Sea Water Equipment

8. Heat Exchangers

9. Condensers

10. Pulp & Paper Industry

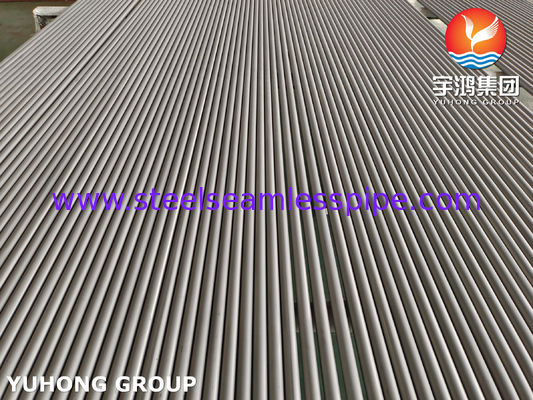

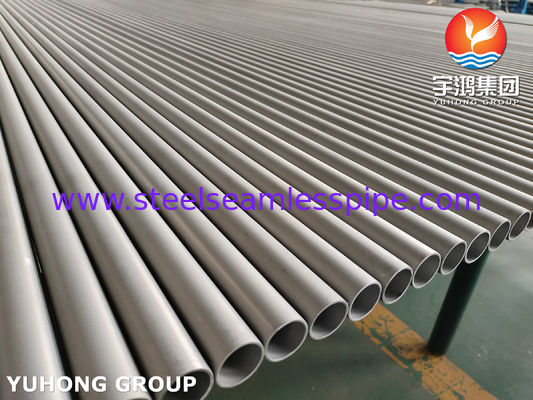

ASTM A268 UNS S41000 TP410 Stainless Steel Seamless Tube Steel Heat Exchanger Tube
