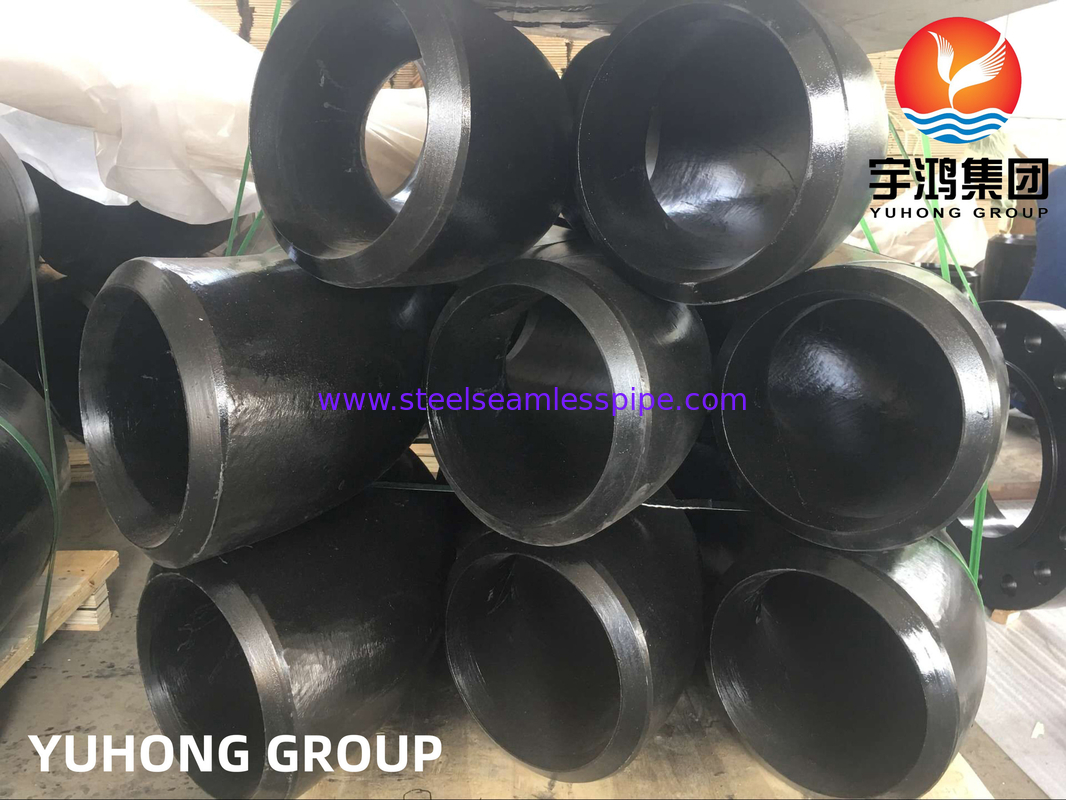

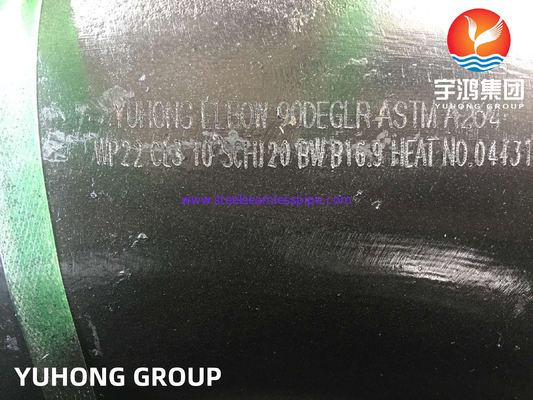

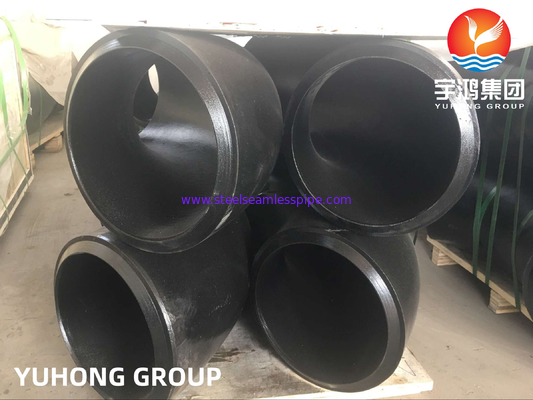

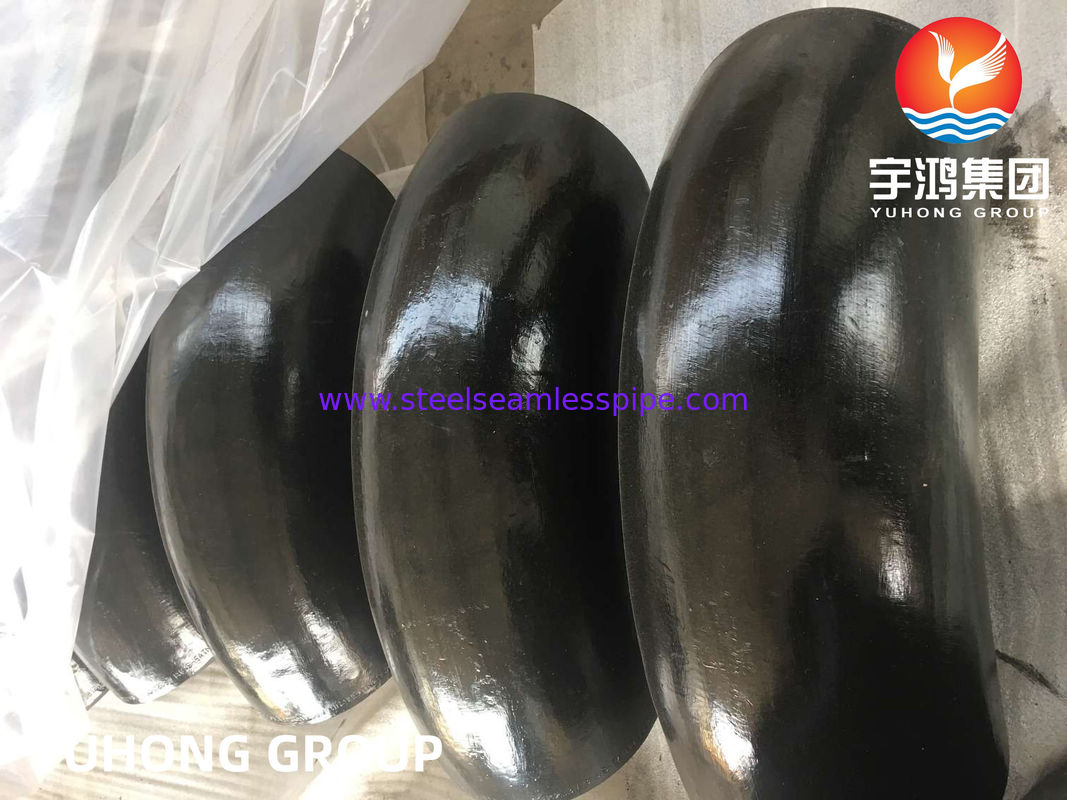

Carbon Steel Butt Weld Fitting ASTM A234 WP22 CL3 90DEG ELBOW LR16'' SCH120

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG HOLDING GROUP
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A234 WPB , ASTM A860, ASTM A420

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	NEGOTIABLE
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	10-15 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	ACCORDING TO CUSTOMER'S REQUEST

Contact Now

All Products

Stainless Steel Seamless Pipe (324)

Stainless Steel Seamless Tube (318)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (149)

Fin Tube (692)

Heat Exchanger (23)

Heat Exchanger Tube (456)

Heat Exchanger Tube Bundle (46)

Heat Exchanger Tubesheet (122)

Heat Exchanger Baffle (39)

Air Cooler (10)

Pressure Vessel (4)

Stainless Steel Welded Pipe (59)

Stainless Steel Welded Tube (127)

Nickel Alloy Pipe (270)

Nickel Alloy Tube (95)

Copper Alloy Tube (247)

Alloy Steel Tube (208)

Titanium Tube (18)

Bright Annealed Tube (171)

Boiler Tube (151)

Steel Fitting (852)

Steel Flange (650)

Others (404)

Cladding Parts (8)

Detailed Product Description

Standard:	ASTM A234 , ASTM A860, ASTM A420	Material:	WPB , WPC , WPHY 42, WPHY 46, WPHY52, WPHY 56, WPHY 60 , WPHY 65 , WPHY 70 , WPHY 80
Size:	1/4" To 100" Sch10s To XXS	Surface:	Black Painting Or Other Color Coating
Package:	Wooden Box Package
Highlight:	carbon steel fittings , forged steel fittings

Carbon Steel Butt Weld Fitting ASTM A234 WP22 CL3 90DEG ELBOW LR16'' SCH120

YUHONG GROUP we are one of the leading manufacturer of tubes and pipes ,pipe fittings especially for oil and gas in China .With more than 35 years' experience ,we have won a great many clients all around the world exporting 85 countries .

ASTM A234 is a standard developed by the American Society for Testing and Materials (ASTM) for carbon steel and alloy steel butt welded pipe fittings used in medium to high temperature services. These fittings are mainly used in pipeline systems in industries such as petroleum, chemical, and power, especially in environments that require high temperature resistance and corrosion resistance.

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness	Center To End	Pipe Schedule	Weight Pounds
1/2	0.84	0.622	0.109	0.62	40	0.09
3/4	1.05	0.824	0.113	0.75	40	0.1
1	1.32	1.05	0.133	0.88	40	0.22
1 1/4	1.66	1.38	0.14	1	40	0.33
1 1/2	1.9	1.61	0.145	1.12	40	0.43
2	2.38	2.07	0.154	1.38	40	0.85
2 1/2	2.88	2.47	0.203	1.75	40	1.7
3	3.5	3.07	0.216	2	40	2.5
3 1/2	4	3.55	0.226	2.25	40	3.4
4	4.5	4.03	0.237	2.5	40	4.5
5	5.56	5.05	0.258	3.12	40	7.5
6	6.62	6.06	0.28	3.75	40	11.7
8	8.62	7.98	0.322	5	40	23.3
10	10.75	10.02	0.365	6.25	40	40.9
12	12.75	12	0.375	7.5	*	61.4
14	14	13.25	0.375	8.75	30	78.1
16	16	15.25	0.375	10	30	101
18	18	17.25	0.375	11.25	*	128
20	20	19.25	0.375	12.5	20	159
24	24	23.25	0.375	15	20	231
30	30	29.25	0.375	18.5	*	358
36	36	35.25	0.375	22.25	*	518
42	42	41.25	0.375	26	*	707
48	48	47.25	0.375	29.88	*	1,000

Extra Strong

Nominal Pipe Size	Outside Diameter	Inside Diameter	Wall Thickness	Center To End	Pipe Schedule	Weight Pounds
1/2	0.84	0.546	0.147	0.62	80	0.15
3/4	1.05	0.742	0.154	0.75	80	0.16
1	1.32	0.957	0.179	0.88	80	0.28
1 1/4	1.66	1.28	0.191	1	80	0.45
1 1/2	1.9	1.5	0.2	1.12	80	0.61
2	2.38	1.94	0.218	1.38	80	1.2
2 1/2	2.88	2.32	0.276	1.75	80	2
3	3.5	2.9	0.3	2	80	3.3
3 1/2	4	3.36	0.318	2.25	80	4.5
4	4.5	3.83	0.337	2.5	80	6.2
5	5.56	4.81	0.375	3.12	80	10.5
6	6.62	5.76	0.432	3.75	80	17
8	8.62	7.63	0.5	5	80	34.3
10	10.75	9.75	0.5	6.25	60	53.5
12	12.75	11.75	0.5	7.5	*	77.6
14	14	13	0.5	8.75	*	100
16	16	15	0.5	10	40	134
18	18	17	0.5	11.25	*	170
20	20	19	0.5	12.5	30	209
24	24	23	0.5	15	*	302
30	30	29	0.5	18.5	20	475.1
36	36	35	0.5	22.25	20	686.1
42	42	41	0.5	26	*	936.1
48	48	47	0.5	29.88	*	1250

Product range:

Size : 1/8"NB TO 100"NB

Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Seamless / ERW / Welded / Fabricated /Forged

Form : Eccentric Reducer, Concentric Reducer

Carbon Steel Reducer - CS Reducer
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Reducer - LTCS Reducer
ASTM A420 WPL3 / A420WPL6

Alloy Steel Reducer - AS Reducer
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel Reducer
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy Reducer
