Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | UNS N10675, Hastelloy B3 |
| Minimum Order Quantity: | 3 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case, Pallet |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According To Customers' Request |
| Standard: | ASTM B366, ASME SB366 | Material Grade: | UNS N10675, Hastelloy B3 |
|---|---|---|---|
| Type: | Elbow,Nipple,Pipe Threaded,Reducer | Size: | 1/2''-48''(DN15-DN1200) |
| Schedule: | SCH 10 - SCH XXS | Technics: | Butt Weld |
| Connection: | Welding,Female,Male | Application: | Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water |
| High Light: | Pipe Lap Joint Stub End,Hastelloy B3 Lap Joint Stub End,Steel Pipe Fittings ASTM B366 |
||

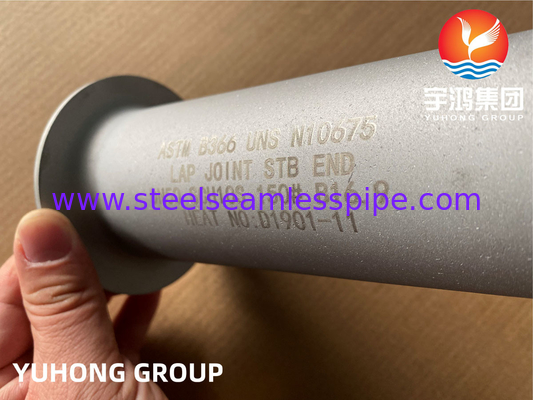

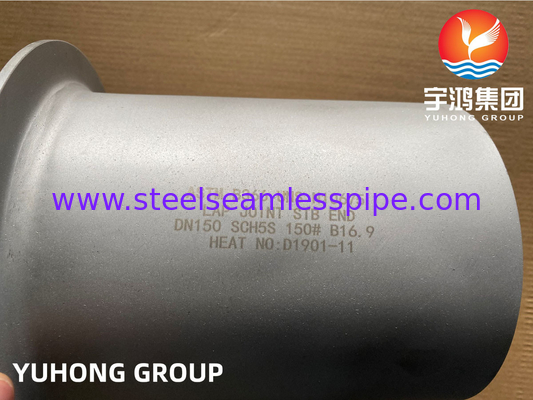

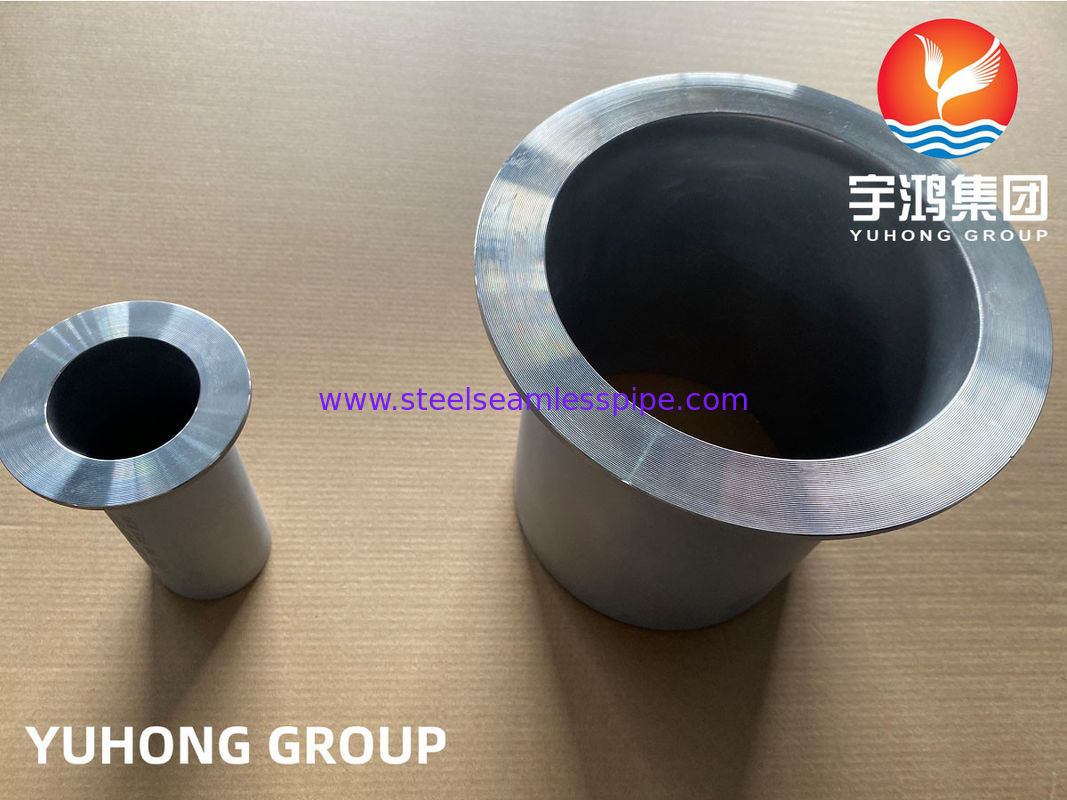

Nickel Alloy Steel Pipe Fittings ASTM B366 UNS N10675, Hastelloy B3 Lap Joint Stub End
Hastelloy B-3 is a nickel-molybdenum alloy with excellent resistance to corrosion, and stress-corrosion cracking plus, thermal stability. HastelloyB-3 Pipe Fittings, which have good resistance to pit and stress corrosion cracking. Stub Ends are mechanical joints that consist of two components.The Stub End is essentially a short length of pipes, which has one end that’s flared outward and the other end prepared to be welded to the pipe.
| Grade | Hastelloy B-3, UNS N10675 |
| Standard | ASTM B366, ASME SB366 |
| Dimensions | ASME B16.28, ASME/ANSI B16.9, MSS-SP-43 |
| Sizes | 1/2”– 48” |
| Class / Pressure Rating | Class150, Class300, Class900, Class1500, Class2500, PN6, PN10, PN16, PN25, PN40, PN64, etc. |
| Forms | Elbow, Reducer, Tee, Cross, Bends, Stub End, End Cap, Cap |
| Types | Seamless / Welded / Fabricated |
Equivalent Grades:
| Grdes | GB | ASTM | UNS | DIN | W.Nr |
| Hastelloy B-3 | NS3203 | Hastelloy B-3 | N10675 | NiMo29Cr | 2.46 |
Chemical Composition:
| Grade | C | Al | Fe | Ni | Mn | Si | Mo | Cr | W | Ti |
| Hastelloy B-3 | 0.01 max | 0.5 max | 1.5 | 65 min | 3 max | 10 max | 28.5 | 1.5 | 3 max | 0.2 max |
Mechanical Composition:
| Density | Melting Point | Tensile Strength | Yield Strength,(0.2% offset) | Elongation |
| 9.22 g/cm³ | 2500-2585°F (1370-1418°C) | 125 Ksi (860 MPa) | 60 KSI (420 MPa) | 50% |
Applications:
Power Generation
Petrochemicals Industry
Gas Processing Equipment
Pharmaceuticals Industry
Pharmaceutical Equipment
Chemical Industry
Sea Water System
Heat Exchangers & Condensers
Pulp and Paper Plant
