Stainless Steel Seamless Tube ASME SA213 ASTM A213 Pickled and Annealed Bright Annealed for Oil Equipment Application

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG GROUP
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 ASME SA213 -10a 0Cr18Ni12Mo2Ti TP 316Ti UNS S31635 1.4571

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	NEGOTIABLE
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	10-15 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	ACCORDING TO CUSTOMER'S REQUEST

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM A213 , ASME SA213, ASTM A269 , ASTM A789 , ASTM B677	Grade:	TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP316H, TP316LN, TP317, TP317L , TP321, TP321H, TP347, TP347H , TP329 , TP314 , TP904L
NDT:	EDDY CURRENT TEST, HYDROSTATIC TEST, ULTRASONIC TEST	TEST STANDARD:	ASTM A450, A999, A1016, E213, E262, E426, E112
Surface:	Pickled And Annealed	Package:	Wooden Box Package
Highlight:	seamless stainless steel tube , seamless boiler tubes

Stainless Steel Seamless Tube ASME SA213 ASTM A213 Pickled and Annealed Bright Annealed for Oil Equipment Application

0Cr18Ni12Mo2Ti, TP 316Ti=UNS S31635=1.4571, This is one of the family of 17%Cr12-13%Ni steels containing Mo of 2,0-2,4% stabilized with Ti which minimizes chromium carbide precipitation and improves resistance to intergranular corrosion. In the damp industrial or coastal atmospheres of Europe, they perform better than TP 304/304L and ferritic grades. In low temperature seawater they offer limited resistance to pitting but are susceptible to crevice attack. Their short- and long-time properties at elevated temperatures are also superior to those of comparable TP 304/304L grades.

Stainless steel seamless tube Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-
Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater
Heat-Exchanger, and Condenser Tubes.

Other Standard:DIN 17456 , DIN 17458, EN10216-5, GOST 9940-81, GOST 9941-81, JIS-G3463,...

Stainless steel seamless tube Size Range:

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Stainless steel seamless tube final Finishing:

Solution Annealed & Pickled/Bright Annealed.

Stainless steel seamless tube type :

U-bend & Straight.

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client

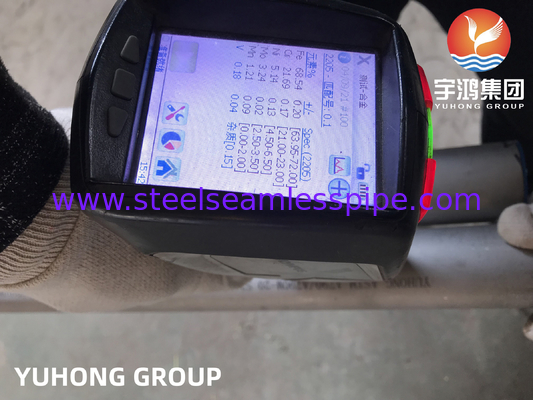

Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:
