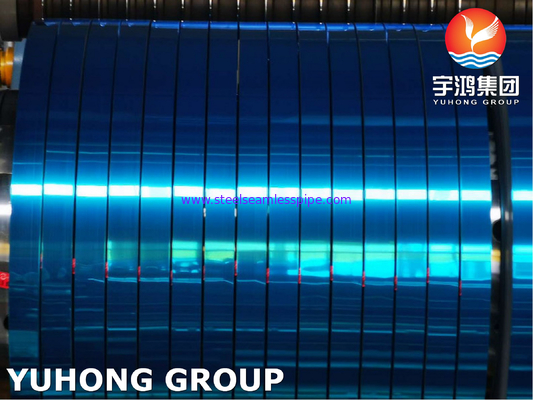

ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE

ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE

  • ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE
  • ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE
  • ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE
ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: SUS430J1L,SS304,SS316L
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: PLYWOOD CASE,PALLET
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
STANDARD: ASTM A240 MATERIAL: SUS430J1L,321,301,304,347,309
TYPE: PLATE,COIL,STRIP PACKAGE: PLYWOOD CASE,PALLET
BRAND: YH,YHSS,YUHONG SURFACE: BA,NO.1,2B
High Light:

stainless steel strip

,

steel strip coil

ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE





INTRODUCTION OF STAINLESS STEEL SUS 430J1L



1. Summary



Compared with 430, the content of Cr is higher, Cu and Nb are added, and the content of C and N is lower.


2. Features


1) Excellent processability; 2) excellent weldability; 3) excellent corrosion resistance; 4) good high temperature oxidation; 5) magnetic
6) Hardening by heat treatment is not possible.



3. Usage


1) Processing: kitchen utensils (pots, utensils, etc.), home appliances (washing machines, electric cookers, etc.)
2) Electronic components; heat-resistant: heat-resistant equipment, exhaust manifold, front pipe, muffler; 3) external installation: various profiles, interior and exterior decoration materials of buildings, railings.


4. Chemical composition (JIS g 4305-2005)

C Si Mn P S Cr Cu N
≤0.025 ≤1 ≤1 ≤0.04 ≤0.03 16.0-20.0 0.3-0.8 ≤0.025



5.Physical Properties

Ya(Mpa) Ts(Mpa) El(%) Hv
≥205 ≥390 ≥22 ≤200



6.Status



2B,NO.1



7.Specifications

SUS  THICKNESS         WIDTH            (MM)
200   CUTTING EDGE   ROLLING EDGE
300 0.03--1.5MM        3--1230           ≤1250
400



8.Application

NO. Application  Application Components Thickness(mm) Grade
1 Aerospace Industry Heat insulation piece 0.05--0.13 321
    Helicopter connector 0.1--0.4 301
    Lining 0.05--0.08 304
    Honeycomb structure 0.05-0.13 347
2 IT Industry Spring 0.05-0.13

304

    Decoder 0.05-0.13 304
    Terminal Spring 0.08-0.2 301
    Etching element 0.05-0.25 304
    Button shrapnel 0.05-0.13 301
    Batterty contact sheet 0.05-0.13 304
    Hard disk switch 0.05-0.2 301
3 Mobile phone industry Outside decorative componets 0.4-2.0 304
    Internal structural components 0.05-0.5 301,304.BN SERIES
4 Chemical etching industry All kinds of precision component 0.1-0.2 All kinds of Stainless Steel
5 Heat exchanger Exhaust gas recycle / 304,309,321



ASTM A240 SS430J1L SS304 SS316L STAINLESS STEEL PRECISION STRIP AND SHEET ,BA SURFACE 0
