Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515

Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515

    • Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515
    • Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515
    • Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515
    • Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515
  • Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515

    Product Details:

    Place of Origin: CHINA
    Brand Name: YH,YHSS,YUHONG
    Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
    Model Number: INCOLOY800, INCOLOY 800H , INCOLOY 800HT, INCOLOY 825

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KGS
    Packaging Details: PLYWOOD CASE,BUNDLE,PALLET
    Delivery Time: 7DAYS
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    MATERIAL: Incoloy 800(1.4876), Incoloy 800H(1.4876), Incoloy 800HT(1.4876), Incoloy 825(2.4858) STANDARD: ASTM B163, ASTM B515, ASTM B407, ASTM B514
    NDT: ET,UT,HT SURFACE: PICKLED AND ANNEALED
    END: PE,BE TYPE: SEAMLESS /WELDED
    High Light:

    nickel alloy tube

    ,

    hastelloy c tubing

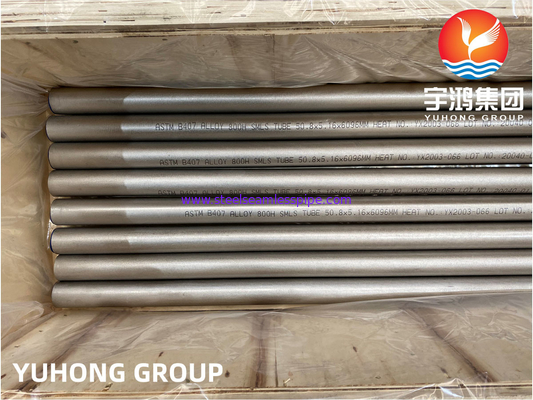

    INCOLOY 800/ 800H SMLS TUBE ASTM B407 DIN 17459 1.4958 B163,50.8X5.16MM



    Incoloy 800, 800H, and 800HT are nickel-iron-chromium alloys with good strength and excellent resistance to oxidation and carburization in high-temperature exposure. These nickel steel alloys are identical except for the higher level of carbon in alloy 800H, and the addition of up to 1.20 percent aluminum and titanium in alloy 800HT. Incoloy 800 was the first of these alloys and it was slightly modified into Incoloy 800H. This modification was to control carbon (.05-.10%) and grain size to optimize stress rupture properties. Incoloy 800HT has further modifications to the combined titanium and aluminum levels (.85-1.20%) to ensure optimum high temperature properties.The nickel alloy is dual certified (800H/HT) and combines the properties of both forms. Incoloy 800H/HT alloy was intended for high temperature structural applications. The nickel content makes the alloys highly resistant to both chloride stress-corrosion cracking and to embrittlement from precipitation of sigma phase. The general corrosion resistance is excellent. In the solution annealed condition, alloys 800H and 800HT have superior creep and stress rupture properties. Today, most suppliers, including Mega Mex, only carry the dual certified 800H/HT alloy.

    Incoloy 800 is primarily used in applications with temperatures up to 1100° F, where alloys 800H and 800HT are normally used in temperatures above 1100° F where resistance to creep and rupture is required. The chemical balance allows the nickel steel alloy to exhibit excellent resistance to carburization, oxidation and nitriding atmospheres. Incoloy 800HT will not become embrittled even after long periods of usage in the 1200-1600° F range where many stainless steels become brittle. Excellent cold forming characteristics typically associated with the nickel-chromium alloys are exhibited with 800HT. When cold formed extensively the grain size produces a visibly undulated surface called “orange peel”. Incoloy 800HT can be welded by the common techniques used on stainless steels.


    Yuhong Group can supply:

    • Sheet
    • Plate
    • Bar
    • Pipe & Tube (welded & seamless)
    • Fittings (i.e. flanges, slip-ons, blinds, weld-necks, lapjoints, long welding necks, socket welds, elbows, tees, stub-ends, returns, caps, crosses, reducers, and pipe nipples)
    • Wire

    Yuhong Products ASTM Specifications:

    Alloy Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet/Plate Bar Forging Fitting
    Alloy 800 (UNS N08800) B407 B154 B163 B515 B409 B408 B564 B366
    Alloy 800H (UNS N08810) B407 B154 B163 B515 B409 B408 B564 B366
    Alloy 800HT (UNS N08811) B407 B154 B163 B515 B409 B408 B564 B366



    Advantage characteristics of Incoloy 800H/HT:

    • High temperature strength
    • High creep rupture strength
    • Resistant to oxidation and carburization in high temperature environments
    • Good corrosion resistance in many acidic environments
    • Good resistance to many sulfur-containing atmospheres



    Alloy 800 (UNS N08800) Chemical Composition, %

    Ni Cr Fe C Al Ti Al+Ti
    30.0-35.0 19.0-23.0 39.5 min .10 max .15-.60 .15-.60 .30-1.20

    Alloy 800H (UNS N08810) Chemical Composition, %

    Ni Cr Fe C Al Ti Al+Ti
    30.0-35.0 19.0-23.0 39.5 min .05-.10 .15-.60 .15-.60 .30-1.20

    Alloy 800HT (UNS N08811) Chemical Composition, %

    Ni Cr Fe C Al Ti Al+Ti
    30.0-35.0 19.0-23.0 39.5 min .06-.10 .25-.60 .25-.60 0.85-1.2



    Applications of Incoloy 800H/HT:

    • Ethylene furnace quench boilers
    • Hydrocarbon cracking
    • Valves, fittings and other components exposed to corrosive attack from 1100-1800° F
    • Industrial furnaces
    • Heat-treating equipment
    • Chemical and petrochemical processing
    • Super-heater and re-heaters in power plants
    • Pressure vessels
    • Heat exchangers

    Incoloy 800/ 800h Nickel Alloy Pipe Pickled And Annealed Surface ASTM B163 ASTM B515 0
