Yuhong Holding Group Co.,LTD
Place of Origin: | China, |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | C68700 ,CuZn20Al2As,HAL77-2 |
Minimum Order Quantity: | 100KGS |
---|---|
Price: | YUHONG HOLDING GROUP CO.,LTD |

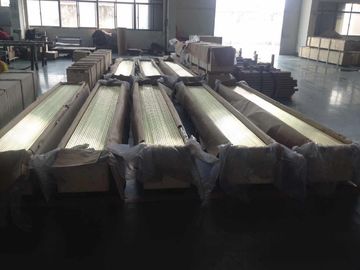

Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
Payment Terms: | T/T, L/C |
Supply Ability: | 1PC |
Material: | C68700 ,CuZn20Al2As,HAL77-2 | Standard: | ASTM B111, ASTM B88, ASTM B288 , ASTM B688 |
---|---|---|---|
Type Of Productis: | Seamless Tube, Welded Tube , Copper Fitting , Copper Fin Tube | TPI: | BV, SGS, IEI, MOODY, .... |
NDT: | ET, UT,HT, PT | ||
Highlight: | C68700 Aluminium Brass Tube,ASTM B111 Aluminium Brass Tube,ASME SB111 Aluminium Brass Tube |

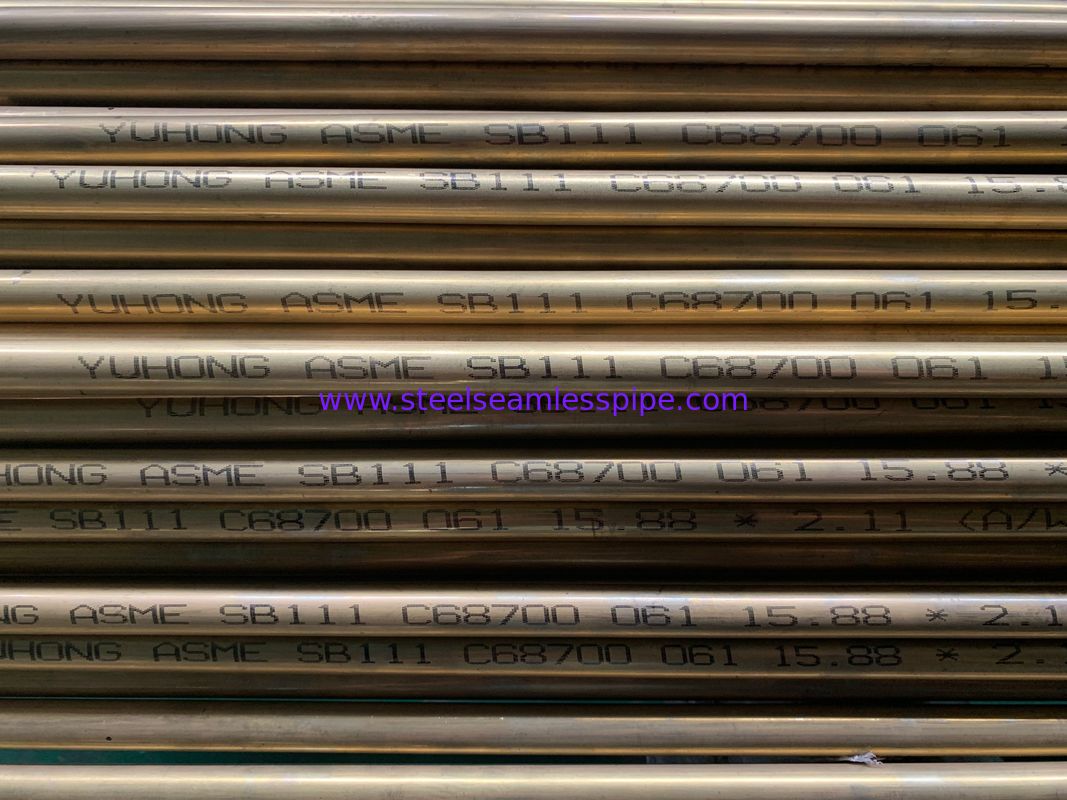

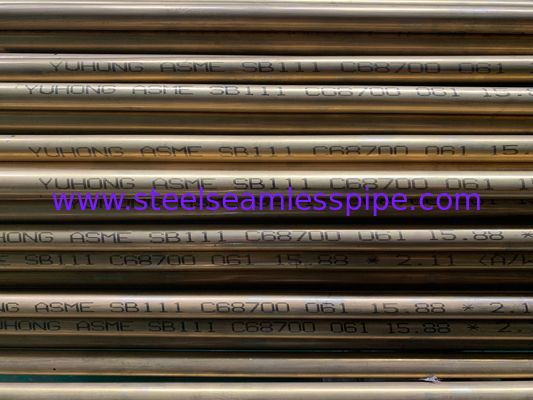

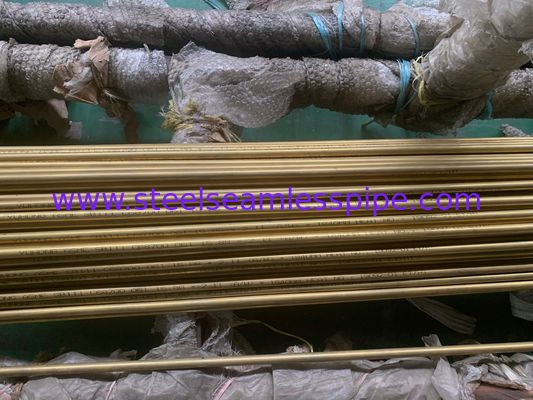

ASTM B111 / ASME SB111 C68700 (CuZn20Al2As), Aluminium Brass Tube, O61, 19.05 X 1.65 X 6096MM , Condenser & Cooling Application
ASTM B-111-89a / ASME SB-111-89a COPPER AND COPPER ALLOY SEAMLESS CONDENSER TUBES AND FERRULE
1. Scope 1.1 This specification covers seamless tube and ferrule stock of copper and various copper alloys up 31/8 in, inclusive, in dimeter, for use in surface condensers, evaporators, and heat exchangers. tubes for this application are normally made from the following coppers or copper alloys: |
Copper or Copper Alloy | Previousoy Use | Type of Metal |
UNS No | Designaation | |
C10200 | OF | Oxygen-free without residual deoxidants |
C12000 | DLP | Phosphorixed, low residual phosphorus |
C12200 | DHP | Phosphorized, high residual phosphorus |
C14200 | DPA | Phophorized, arsenical |
C19200 | - | Phophorized, 1% iron |
C23000 | - | Red brass |
C28000 | - | Muntz Metal |
C44300 | - | Admiralty Metals,B,C,and D |
C44400 | - | - |
C44500 | - | - |
C60800 | - | Aluminum Bronze |
C68700 | - | Aluminum Brass, B |
C70400 | - | 95-5 Copper-Nikel |
C70600 | - | 90-10 Copper-Nikel |
C71000 | - | 80-20 Copper-Nikel |
C71500 | - | 70-30 Copper-Nikel |
C71640 | - | Copper-Nikel-iron-Manganese |
C72200 | - | - |
1.2 Warning - Mercury is a definite health hazard in use and disposal (See 12.1.)
Copper Alloy UNS No. | Copper Plus Named Elements % min. |
C60800 | 99.5 |
C70400 | 99.5 |
C70600 | 99.5 |
C71000 | 99.5 |
C71500 | 99.5 |
C71640 | 99.5 |
C72200 | 99.8 |
For copper alloys in which zinic is specified as the remainder. either copper or zinc may be taken as the difference
between the sum of all the elements analyzed and 100%
TABLE 1 CHEMICAL REQUIREMENTS
Composition, % | |||||||||||||
Copper or Copper Alloy UNS No. | CopperA | Tin | Aluminum | Nickel, incl Cobalt | Lead, max | Iron | Zinc | Managnese | Arsenic | Antimony | Phosphorus | Chro mium |
Other Named Elements |
C10200 | 99.95 min | - | - | - | - | - | - | - | - | - | - | - | - |
C12000 | 99.90 min | - | - | - | - | - | - | - | - | - | 0.004-0.012 | - | - |
C12200 | 99.9 min | - | - | - | - | - | - | - | - | - | 0.015-0.040 | - | - |
C14200 | 99.40 min | - | - | - | - | - | - | - | 0.15-0.50 | - | 0.015-0.040 | - | - |
C19200 | 98.7 min | - | - | - | - | 0.8-1.2 | - | - | 0.15-0.50 | - | 0.01-0.04 | - | - |
C23000 | 84.0-86.0 | - | - | - | 0.05 | 0.05 max | remalnder | - | - | - | - | - | - |
C28000 | 59.0-63.0 | - | - | - | 0.30 | 0.07 max | remainder | - | - | - | - | - | - |
C44300 | 70.0-73.0 | 0.9-1.2 | - | - | 0.07 | 0.06 max | remainder | - | 0.02-0.06 | - | - | - | - |
C44400 | 70.0-73.0 | 0.9-1.2 | - | - | 0.07 | 0.06 max | remainder | - | - | 0.02-0.10 | - | - | - |
C44500 | 70.0-73.0 | 0.9-1.2 | - | - | 0.07 | 0.06 max | remainder | - | - | - | 0.02-0.10 | - | - |
C60800 | remainder | - | 5.0-6.5 | - | 0.10 | 0.10 max | - | - | 0.02-0.35 | - | - | - | - |
C68700 | 76.0-79.0 | - | 1.8-2.5 | - | 0.07 | 0.06 max | remainder | - | 0.02-0.10 | - | - | - | - |
C70400 | remainder | - | 4.8-6.2 | 0.05 | 1.3-1.7 | 1.0max | 0.30-0.8 | - | - | - | - | - | |
C70600 | remainder | - | 9.0-11.0 | 0.05B | 1.0-1.8 | 1.0maxB | 1.0max | - | - | B | - | B | |
C71000 | remainder | - | 19.0-23.0 | 0.05B | 0.50-1.0 | 1.0maxB | 1.0max | - | - | B | - | B | |
C71500 | remainder | - | 29.0-33.0 | 0.05B | 0.40-1.0 | 1.0maxB | 1.0max | - | - | B | - | B | |
C71640 | remainder | - | 29.0-32.0 | 0.05B | 1.7-2.3 | 1.0maxB | 1.5-2.5 | - | - | B | - | B | |
C72200 | remainder | - | 15.0-18.0 | 0.05B | 0.50-1.0 | 1.0maxB | 1.0max | - | - | B | 0.30 -0.70 |
B |
A Copper (including silver),
B When the product is for subsequent welding applications, and so specified by the purchaser, zinc shall be 0.50% max,
lead 0.02% max, phosphorus 0.02% max, sulfur 0.02% max, and carbon 0.05% max.
When all the elements in Table 1 are analyzed, their sum shall be as shown in the following table.
Copper Alloy UNS No. | Copper Plus Named Elements.% min |
C23000 | 99.8 |
C28000 | 99.7 |
C44300 | 99.6 |
C44400 | 99.6 |
C44500 | 99.6 |
C68700 | 99.5 |
TABLE 2 TENSILE REQUIREMENTS
Copper or Copper Alloy UNS No. | Temper Designation | Tensile Strength min ksiA | Yield strengthBmin ksiA | Elongation in 2 in, min% | |
Standard | Former | ||||
C10200, C12000, C12200, C14200 | H55 | light-drawn | 36 | 30 | ... |
C10200, C12000, C12200, C14200 | H80 | hard-drawn | 45 | 40 | ... |
C19200 | 061 | annealed | 38 | 12 | ... |
C23000 | 061 | annealed | 40 | 12 | ... |
C28000 | 061 | annealed | 50 | 20 | ... |
C44300, C44400, C44500 | 061 | annealed | 45 | 15 | ... |
C60800 | 061 | annealed | 50 | 19 | ... |
C68700 | 061 | annealed | 50 | 18 | ... |
C70400 | 061 | annealed | 38 | 12 | ... |
C70400 | H55 | light-drawn | 40 | 30 | ... |
C70600 | 061 | annealed | 40 | 15 | ... |
C70600 | H55 | light-drawn | 45 | 35 | ... |
C71000 | 061 | annealed | 45 | 16 | ... |
C71500 | 061 | annealed | 52 | 18 | ... |
C71500 | - | - | - | - | - |
Wall thicknesses up to 0.048 in, incl | HR50 | drawn, stress-relieved | 72 | 50 | 12 |
Wall thicknesses over 0.048 in. | HR50 | drawn, stress-relieved | 72 | 50 | 15 |
C71640 | 061 | annealed | 63 | 25 | ... |
C71640 | HR50 | drawn, stress relieved | 81 | 58 | ... |
C72200 | 061 | annealed | 45 | 16 | ... |
C72200 | H55 | light-drawn | 50 | 30 | ... |
TABLE 3 EXPANSION REQUIREMENTS
Temper Designatio | Copper or Copper Alloy UNS No. | Expansion of Tbue Outside Diameter, in Percent of Original Outside Diameter | |
Standard | Former | ||
061 |
annealed |
C19200 | 30 |
C23000 | 20 | ||
C28000 | 15 | ||
C44300,C44400,C44500 | 20 | ||
C60800 | 20 | ||
C68700 | 20 | ||
C70400 | 30 | ||
C70600 | 30 | ||
C71000 | 30 | ||
C71500 | 30 | ||
C71640 | 30 | ||
C72200 | 30 | ||
H55 |
light-drawn |
C10200,C12000,C12200 | 20 |
C14200 | 20 | ||
C70400 | 20 | ||
C70600 | 20 | ||
C72200 | 20 | ||
HR50 |
drawn,stress relieved | C71500 | 20 |
hard-drawn, end annealed | C10200,C12000,C14200 | 30 |
TABLE 4 NOTCH DEPTH
Tube Wall Thickness, in. | Tube Outside Diameter, in. | ||
Over ¼to ¾, incl | Over ¾ to 1 ¼, incl | Over 1¼ to 3⅓, incl. | |
Over 0.017-0.032 | 0.005 | 0.006 | 0.007 |
0.032-0.049, incl | 0.006 | 0.006 | 0.0075 |
0.049-0.083, incl | 0.007 | 0.0075 | 0.008 |
0.083-0.109, incl | 0.0075 | 0.0085 | 0.0095 |
0.109-0.120, incl | 0.009 | 0.009 | 0.011 |
TABLE 5 DIAMETER OF DRILLED HOLES
Tube Outside Diameter, in. | Diameter of Drilled Holes, in. | Drill No. |
¼-¾, incl | 0.025 | 72 |
Over ¾-1, incl | 0.031 | 68 |
Over 1-1¼, incl | 0.036 | 64 |
Over 1¼-1½, incl | 0.042 | 58 |
Over 1½-1¾, incl | .0046 | 56 |
Over 1¾-2, incl | 0.052 | 55 |
Hydrostatic Test - Each tube shall stand, without showing evidence of leakage, an internal hydrostatic pressure
sufficient to subject the material to a fiber stress of 7000 psi, determined by the following equation for thin hollow
cylinders under tension. The tube need not be tested at a hudrostatic pressure of over 1000psi unless so specified.
P = 2St/(D-0.8t) where:
P = hydrostatic pressure, psig.
t = thickness of tube wall, in.
D = outside diameter of the tube. in., and
S = allowable stress of the material, psi.
TABLE 6 DIAMETER TOLERANCES
Outside Diameter, in | Wall Thickness, in. | ||||
0.020A 0.022 0.025 0.028 |
0.032 | 0.035 | 0.042 | 0.049 and Over | |
Diameter Tolerance, Plus and Minus, in. | |||||
Up to 0.500, incl | 0.003 | 0.0025 | 0.0025 | 0.0025 | 0.0025 |
Over 0.500-0.740, incl | 0.0040 | 0.004 | 0.004 | 0.0035 | 0.003 |
Over 0.500-7.40, incl | 0.0060 | 0.006 | 0.005 | 0.0045 | 0.004 |
Over 0.740-1.000, incl | ... | 0.009 | 0.008 | 0.006 | 0.045 |
Over 1.250-1.375, incl | ... | ... | ... | 0.008 | 0.005 |
Over 1.375-2.000, incl | ... | ... | ... | ... | 0.006 |
A Tolerances in this column are applicable to light drawn and drawn tempers only.
Tolerances for annealed tempers shall be as agreed upon between the manufacturer and the purchaser.
TABLE 7 WALL THICKNESS TOLERANCES, PLUS AND MINUS IN.
Wall Thicness, in. | Outside Diameter, in. | ||
Over ⅛ to ⅝, incl | Over ⅝ to 1, incl | Over 1 to 2, incl | |
0.020, incl to 0.032 | 0.003 | 0.003 | ... |
0.032, incl to 0.035 | 0.003 | 0.003 | 0.004 |
0.035, incl to 0.058 | 0.004 | 0.0045 | 0.0045 |
0.058, incl to 0.083 | 0.0045 | 0.005 | 0.005 |
0.083, incl to 0.120 | 0.005 | 0.0065 | 0.0065 |
0.120, incl to 0.134 | 0.007 | 0.007 | 0.0075 |
TABLE 8 LENGTH TOLERANCES
Specified Length, ft | Tolerance, all Plus, in. |
Up to 15 | 3/32 |
Over 15-20, incl | 1/8 |
Over 20-30, incl | 5/32 |
Over 30-60, incl | 3/8 |
Over 60-100, inclA | 1/2 |
A Condenser tubes in lengths over 100 ft are not in present demand. Tolerance values for the lengths will be developed
as experience dictates. Tolerance values for lengths in wall thicknesses of 0.020, incl. to 0.032 shall be as agreed upon
between the manufacturer or supplier and the purchaser.
Tube. Outside Diameter, in | Tolerance |
Up to ⅝, incl | 0.010 in. |
Over ⅝ | 0.016 in./in. of diameter |
The properties and chemical compositions enumerated in this specification shall, in case of disagreement,
be determined in accordance with the following ASTM methods:
Test | ASTM Designation |
Chemical analysis | B 170A,E53,E54,E62,E75,E478 |
Grainsize | E112 |
Expansion (pin test) | B153 |
Mercurous nitrate | B154 |
Tension | E8 |
Nondestructive test | E243 |
A Reference to Specification B170 is to the suggested chemical methods in the annex thereof.
When E-1 Committee has tested and published methods for assaying the low-level impurties in copper.
the Specification B 170 annex will be eliminated.
APPENDIXES (Nonmadatory Information)
X1. DENSITY OF COPPER AND COPPER ALLOYS
X1.1 The densities of the alloys covered by this specification are given in Table X1.1.
TABLE X1.1 DENSITIES
Copper or Copper Alloy UNS No. | Density, lb.in.3 |
C10100,C10200,C10300,C10800,C12000,C12200,C14200 | 0.323 |
C19200 | 0.320 |
C23000 | 0.316 |
C28000 | 0.303 |
C44300,C44400,C44500 | 0.308 |
C60800 | 0.295 |
C61300,C61400 | 0.285 |
C68700 | 0.301 |
C70400 | 0.323 |
C70600 | 0.323 |
C71000 | 0.323 |
C71500 | 0.323 |
C71640 | 0.323 |
C72200 | 0.323 |
Material Comparison Tables (ASTM →KS, JIS, DIN, BS, NBN, NF, UNI)
ASTMSTANDARD | UNS NO. | KOREA/JAPANES | GERMAN | BRITISH | ISO | ||||||
KS/JIS Symbol | KS/JIS Numbe | DIN Type | DIN Number | Materiral Number | B.S Number | B.S Grade | Remarks | ISO Type | ISO Number | ||
B 111 Copper and Copper-Alloy Seamless Condenser Tube and Ferrule Stock | |||||||||||
C44300 | C44300 | C4430T/C4430T | D5301/H3300 | CuZn28Sn | 1785 | 2871 | CZ111 | CuZn28Sn1 | R1337 | ||
C68700 | C68700 | C6870T/C6870T | D5301/H3300 | CuZN20Al | 1785 | 2871 | CZ110 | CuZn20Al2 | 426-I | ||
C70600 | C70600 | C7060T/C7060T | D5301/H3300 | CuNi10Fe1Mn | 17664 | 2871 | CN102 | CuNi10Fe1Mn | 429 | ||
C71000 | C71000 | C7100T/C7100T | D5301/H3300 | ||||||||
C71500 | C71500 | C7150T/C7150T | D5301/H3300 | CuNi30Mn1Fe | 17664 | 2871 | CN107 | CuNi30Mn1Fe | |||
C71640 | C71640 | C7164T/C7164T | D5301/H3300 | CuNi30Fe2Mn2 | 17664 | 2871 | CN108 | CuNi30FeMn2 |
