Yuhong Holding Group Co.,LTD
Place of Origin: | CHINA |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
Model Number: | C12200 , C44300, C68700, C70600 |
Minimum Order Quantity: | 100KGS |
---|---|
Packaging Details: | PLYWOOD CASE,BUNDLE,PALLET |
Delivery Time: | 7DAYS |
Payment Terms: | L/C, T/T |
STANDARD: | ASTM B111,ASME SB111 | GRADE: | UNS No. C10100, C10200, C10300, C10800, C12000, C12200, C14200, C19200, C23000, C28000, C44300, C44400, C44500, C60800, C61300, C61400, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, And C72200 |
---|---|---|---|
TEST: | ET, HT, Flattening Test,Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination,Tension Testing. | OD: | 9.53,19.05,12,7,25.4,38,1MM... |
WT: | 0.89,1,1.2,1.5,1.65,2,2.11MM... | ||
High Light: | O61 Seamless Copper Tube,C68700 Seamless Copper Tube,ASTM B111 Seamless Copper Tube |

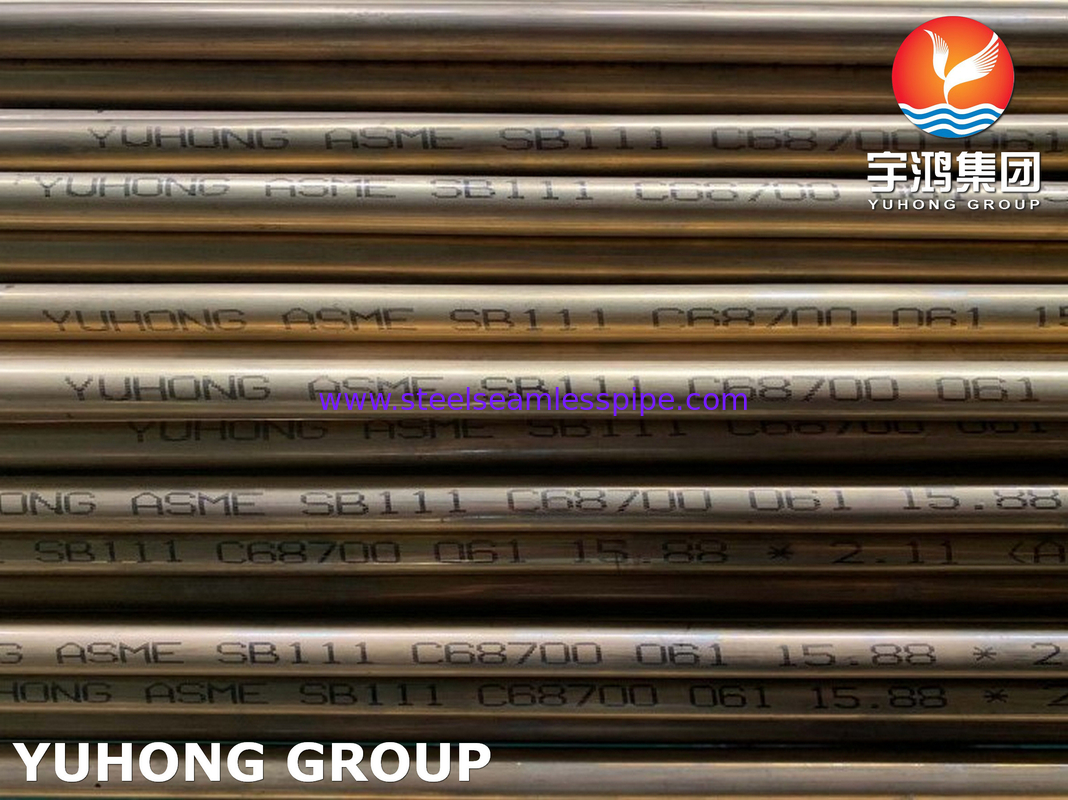

SEAMLESS COPPER TUBE ASTM B111 C68700 O61 FOR HEAT EXCHANGER CONDENSER
ASTM B111/ B111M : Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock
Copper or Copper Alloy UNS No. | Description |
C10100 | Oxygen-free electronic |
C10200 | Oxygen-free without residual deoxidants |
C10300 | Oxygen-free, extra low phosphorus |
C10800 | Oxygen-free, low phosphorus |
C12000 | Phosphorized, low residual phosphorus |
C12200 | Phosphorized, high residual phosphorus |
C14200 | Phosphorized, arsenical |
C19200 | Phosphorized, 1 % iron |
C23000 | Red Brass |
C28000 | Muntz Metal |
C44300 | Admiralty Metals, B, C, and D |
C44400 | |
C44500 | |
C60800 | Aluminum Bronze |
C61300 | |
C61400 | Aluminum Bronze, D |
C68700 | Aluminum Brass, B |
C70400 | 95-5 Copper-Nickel |
C70600 | 90-10 Copper-Nickel |
C70620 | 90-10 Copper-Nickel—Welding Grade |
C71000 | 80-20 Copper-Nickel |
C71500 | 70-30 Copper-Nickel |
C71520 | 70-30 Copper-Nickel—Welding Grade |
C71640 | Copper-nickel-iron-manganese |
C72200 |
TESTING: ET; HT; Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing.
Contact Person: Candy
Tel: 008613967883024
Fax: 0086-574-88017980
