Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO 18001 |
| Model Number: | TP304 , 1.4301 , 08Х18Н10, SUS304 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 5-80 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 tons per month |
| Standard: | A312, A511 , EN10215-6 , DIN 17456, DIN 17458 , GOST 9941-81 | Material Grade: | TP304 , 1.4301 , 08Х18Н10, SUS304 |
|---|---|---|---|
| Application: | Boiler, Heat Exchanger, Cooler Plant ,petrochemical Industry, Natural Gas And Oil Industry,environmental Protection, Pharmaceutical , Chemical, Food Machinery, Water Supply And Waste Wate Exchanger Plant, Architecture,chemical Industry,chemical Fertilizer | Production Process: | Cold Rolling And Cold Drawing |
| NPS: | 1/8" TO 24" | Wall Thickness: | SCH5S, SCH10S, SCH40S, SCH80S, SCH100, SCH120, SCH160, SCH XS, SCH XXS |
| NDT: | Eddy Current Test, Hydrostatic Test , Ultrasonic Test | Third Party Inspection: | TUV, BV, SGS, IBR, CCS, ABS, DNV , GL , KR, LR, MOODY |
| Surface: | Pickled , Polished, Bright Annealed | Packing: | Ply Wooden Case , Bundle |
| High Light: | TP304 Stainless Steel Seamless Pipe,SCH5S Stainless Steel Seamless Pipe,Seamless ASTM A312 Pipe |
||

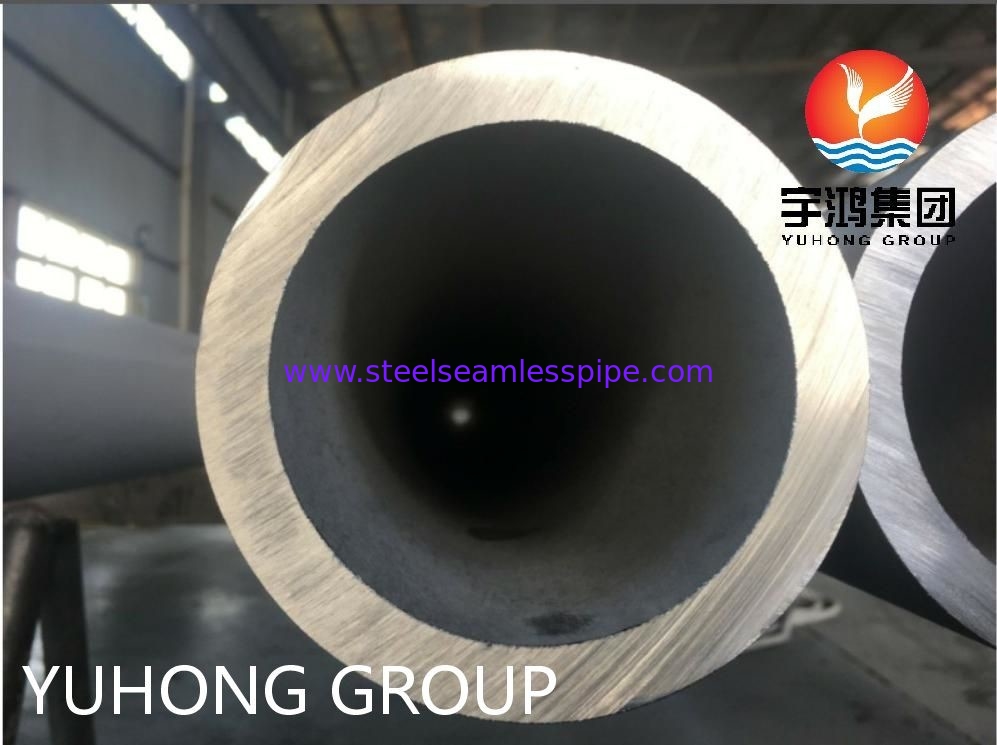

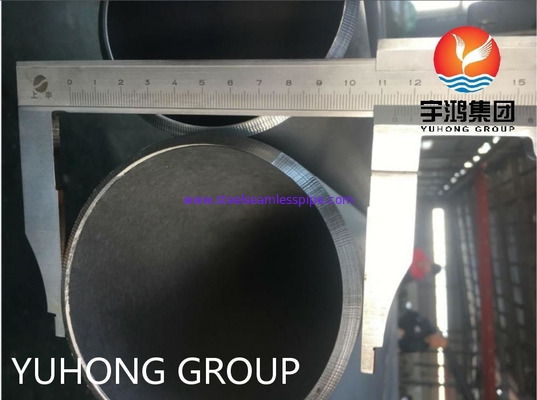

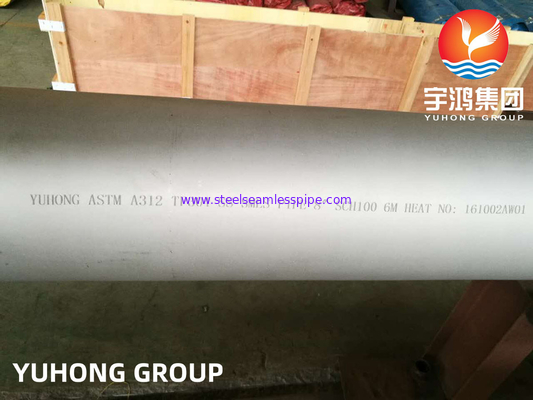

ASTM A312 TP304 Stainless Steel Seamless Pipe
YUHONG GROUP supply stainless steel seamless pipe and tube already more than 33 years, every
year sell more than 15000 tons of stainless steel pipe and tube. Our client already cover more than 55
countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical,
Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.
What is TP304/304L
Grade 304 stainless steel is known as the standard "18/8" stainless steel due to its composition of 18% chromium and 8% nickel. This composition gives it excellent corrosion resistance and makes it the most widely used stainless steel grade.
One of the key advantages of grade 304 is its versatility, as it is available in a wide range of products, forms, and finishes. It can be found in various industries and applications, including kitchen sinks, cookware, industrial components, construction materials, and transportation equipment.
Grade 304 has excellent forming and welding properties. Its balanced austenitic structure allows for severe deep drawing without the need for intermediate annealing. This makes it ideal for manufacturing drawn stainless steel parts such as sinks, hollowware, and pans. The "304 ddq" variant, which stands for deep drawing quality, is often used for these applications.
Additionally, grade 304 can be easily formed or rolled into different components for use in the industrial, construction, and transport sectors. Its welding characteristics are also excellent, and post-weld annealing is not required when welding thin sections.
There are variations of grade 304 stainless steel available as well. Grade 304L is the low carbon version, which does not require post-weld annealing and is commonly used for heavy instrumentation components. Grade 304H, on the other hand, contains a higher carbon content, allowing it to be used at elevated temperatures.
Furthermore, the austenitic structure of these grades gives them excellent toughness, even at low temperatures. This makes them suitable for various applications where strength and durability are required.
Overall, grade 304 stainless steel is highly versatile, corrosion-resistant, and has excellent forming and welding properties, making it a popular choice in a wide range of industries.
ASTM A312 / A312M:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A269 / A269M:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing
for General Service
ASTM A511 / A511M:Standard Specification for Seamless Stainless Steel Mechanical Tubing , Hollow bar.
ASTM A312 TP 304 / 304L Stainless Steel Seamless Pipes Grade of the most versatile and commonly used stainless steels on the market, Grade 304 stainless steel is the most standard used alloy of this type. ... As a result, Type 304L stainless steel is a sort after material for use in severely corrosive conditions.
| Сталь | Структура | Аналоги стали | Химический состав % | Механические свойства | ||||||||||||||
| Европейская | AISI США | Гост Россия | C | Si | Mn | P | S | N | Cr | Mo | Ni | другие | Re (Rp0,2) | Rm N/mm2 | A5% min. | Hb max. HRC | ||
| норма | H/mm2 min. | |||||||||||||||||
| 10088 | ||||||||||||||||||
| Нержавеющие | Ферритные | 1.4 | 403, 410 S | 08Х13 | ≤ 0,08 | ≤ 1,00 | ≤ 1,00 | ≤ 0,040 | 12,00-14,00 | 230 | 400-630 | 20 | 200 | |||||
| 1.4003 | ≤ 0,03 | ≤ 1,00 | ≤ 1,50 | ≤ 0,040 | ≤ 0,015 | ≤ 0,030 | 10,50-12,50 | 0,30-1,00 | 230 | 20 | 200 | |||||||
| 1.4016 | 430 | 12Х17 | ≤ 0,08 | ≤ 1,00 | ≤ 1,00 | ≤ 0,040 | ≤ 0,015 | 16,00-18,00 | 240 | 400-630 | 20 | 200 | ||||||
| 1.451 | 430 Ti, 439 | 08Х17Т | ≤ 0,05 | ≤ 1,00 | ≤ 1,00 | ≤ 0,040 | 16,00-18,00 | Ti4x(C+N)+0,15≤0,8 | 240 | 420-600 | 23 | 180 | ||||||
| Мартенситные | 1.4006 | 410 | 12Х13 | 0,08-0,15 | ≤ 1,00 | ≤ 1,50 | ≤ 0,040 | ≤ 0,015 | 11,50-13,50 | ≤ 0,75 | 450 | 660-850 | 15 | 220≥24 | ||||
| 1.4021 | 420 | 20Х13 | 0,16-0,25 | ≤ 1,00 | ≤ 1,50 | ≤ 0,040 | ≤ 0,015 | 12,00-14,00 | 600 | 800-950 | 12 | 230≥28 | ||||||
| 1.4028 | 420 F | 30Х13 | 0,26-0,35 | ≤ 1,00 | ≤ 1,50 | ≤ 0,040 | ≤ 0,015 | 12,00-14,00 | 650 | 850-1000 | 10 | 245≥48 | ||||||
| 1.4031 | 40Х13 | 0,36-0,42 | ≤ 1,00 | ≤ 1,00 | ≤ 0,040 | ≤ 0,015 | 12,50-14,50 | ≤ 800 | 245≥52 | |||||||||
| 1.4034 | 40Х13 | 0,43-0,50 | ≤ 1,00 | ≤ 1,00 | ≤ 0,040 | ≤ 0,015 | 12,50-14,50 | ≤ 800 | 245≥52 | |||||||||
| 1.4057 | 431 | 20Х17Н2 | 0,12-0,22 | ≤ 1,00 | ≤ 1,50 | ≤ 0,040 | ≤ 0,015 | 15,00-17,00 | 1,50-2,50 | 700 | 900-1050 | 12 | 295≥45 | |||||
| 1.4122 | 0,33-0,45 | ≤ 1,00 | ≤ 1,50 | ≤ 0,040 | ≤ 0,015 | 15,50-17,50 | 0,80-1,30 | ≤ 1,00 | 550 | 750-950 | 12 | 280≥28 | ||||||
| Аустенитные | 1.4301 | 304 | 08Х18Н10 | ≤ 0,07 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 17,00-19,50 | 8,00-10,50 | 190 | 500-700 | 45 | 215 | |||
| 1.4305 | 303 | ≤ 0,10 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | 0,15-0,35 | ≤ 0,011 | 17,00-19,00 | 8,00-10,00 | Cu ≤ 1,00 | 190 | 500-770 | 35 | 230 | ||||
| 1.4306 | 304 L | 03Х18Н11 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 18,00-20,00 | 10,00-12,00 | 180 | 460-680 | 45 | 215 | ||||
| 1.4307 | (304 L) | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 17,50-19,50 | 8,00-10,00 | 175 | 460-680 | 45 | 215 | |||||
| 1.431 | 301 | 0,05-0,15 | ≤ 2,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 16,00-19,00 | ≤ 0,080 | 6,00-9,50 | 195 | 500-700 | 40 | 230 | ||||
| 1.4401 | 316 | ≤ 0,07 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 16,50-18,50 | 2,00-2,50 | 10,00-13,00 | 200 | 500-700 | 40 | 215 | ||||
| 1.4404 | 316 L | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 16,50-18,50 | 2,00-2,50 | 10,00-13,00 | 200 | 500-700 | 40 | 215 | ||||
| 1.4435 | 316 L | 03Х17Н14М3 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 17,00-19,00 | 2,50-3,00 | 12,50-15,00 | 200 | 500-700 | 35 | 215 | |||
| 1.4436 | 316 | ≤ 0,05 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 16,50-18,50 | 2,50-3,00 | 10,50-13,00 | 200 | 500-700 | 40 | 215 | ||||
| 1.4438 | 317 L | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | ≤ 0,011 | 17,50-19,50 | 3,00-4,00 | 13,00-16,00 | 200 | 500-700 | 40 | 215 | ||||
| 1.4439 | (317 LN) | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | 0,12-0,22 | 16,50-18,50 | 4,00-5,00 | 12,50-14,50 | 280 | 580-800 | 35 | 250 | ||||
| 1.4529 | UNS N08925 | ≤ 0,02 | ≤ 0,50 | ≤ 1,00 | ≤ 0,030 | ≤ 0,010 | 0,15-0,25 | 19,00-21,00 | 6,00-7,00 | 24,00-26,00 | Cu 0,50-1,50 | 300 | 650-850 | 40 | 250 | |||
| 1.4539 | UIMS IM08904 | ≤ 0,02 | ≤ 0,70 | ≤ 2,00 | ≤ 0,030 | ≤ 0,010 | ≤ 0,015 | 19,00-21,00 | 4,00-5,00 | 24,00-26,00 | Cu 1,20-2,00 | 230 | 530-730 | 35 | 230 | |||
| 1.4541 | 321 | 12Х18Н10Т | ≤ 0,08 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | 17,00-19,00 | 9,00-12,00 | Ti5xC≤ 0,70 | 190 | 500-700 | 45 | 215 | ||||
| 1.4547 | UNSS31254 | ≤ 0,02 | ≤ 0,70 | ≤ 1,00 | ≤ 0,030 | ≤ 0,010 | 0,18-0,25 | 19,50-20,50 | 6,00-7,00 | 17,50-18,50 | Cu 0,50-1,00 | 300 | 650-850 | 35 | 260 | |||
| 1.455 | 347, 348 | 03Х17Н14М3 | ≤ 0,08 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | 17,00-19,00 | 9,00-12,00 | Nb 10xC≤ 1,00 | 205 | 510-740 | 40 | 230 | ||||
| 1.4571 | 316 Ti | 10Х17Н13М2Т | ≤ 0,08 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,015 | 16,50-18,50 | 2,00-2,50 | 10,50-13,50 | Ti 5xC≤ 0,70 | 200 | 500-700 | 40 | 215 | |||
| Дуплекс | Ферритно-аустенит. | 1.4362 | UNS S32304 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,035 | ≤ 0,015 | 0,05-0,20 | 22,00-24,00 | 0,10-0,60 | 3,50-5,50 | Cu 0,10-0,60 | 400 | 600-830 | 25 | 260 | |
| 1.441 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,035 | ≤ 0,015 | 0,20-0,35 | 24,00-26,00 | 3,00-4,50 | 6,00-8,00 | 530 | 730-930 | 25 | 290 | |||||
| 1.446 | 329 | ≤ 0,05 | ≤ 1,00 | ≤ 2,00 | ≤ 0,035 | ≤ 0,015 | 0,05-0,20 | 25,00-28,00 | 1,30-2,00 | 4,50-6,50 | 460 | 620-880 | 20 | 260 | ||||
| 1.4462 | UNSS31803 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | ≤ 0,035 | ≤ 0,015 | 0,10-0,22 | 21,00-23,00 | 2,30-3,50 | 4,50-6,50 | 450 | 620-880 | 25 | 270 | ||||
| Жаропрочные | М | 1.4718 | HNV3 | 40Х9С2 | 0,40-0,50 | 2,70-3,30 | ≤ 0,80 | ≤ 0,040 | ≤ 0,030 | 8,00-10,00 | ≤ 0,60 | 700 | 900-1100 | 14 | 217 25-32 | |||
| Ферритные | 1.4724 | 10Х13СЮ | ≤ 0,12 | 0,70-1,40 | ≤ 1,00 | ≤ 0,040 | ≤ 0,015 | 12,00-14,00 | Al 0,70-1,20 | 250 | 450-650 | 15 | 192 | |||||
| 1.4742 | 15Х18СЮ | ≤ 0,12 | 0,70-1,40 | ≤ 1,00 | ≤ 0,040 | ≤ 0,015 | 17,00-19,00 | Al 0,70-1,20 | 270 | 500-700 | 12 | 212 | ||||||
| 1.4749 | -446 | 0,15-0,20 | ≤ 1,00 | ≤ 1,00 | ≤ 0,045 | ≤ 0,015 | 0,15-0,25 | 26,00-29,00 | Al 0,70-1,20 | 280 | 500-700 | 15 | 217 | |||||
| 1.4762 | -446 | ≤ 0,12 | 0,70-1,40 | ≤ 1,00 | ≤ 0,040 | ≤ 0,015 | 23,00-26,00 | Al 0,20-1,70 | 280 | 520-720 | 10 | 223 | ||||||
| 1.7362 | ≤ 0,15 | ≤ 0,50 | ≤ 0,50 | ≤ 0,035 | ≤ 0,030 | 4,50-6,00 | 0,45-0,60 | ≤ 0,50 | 215 | ≥ 390 | 22 | 170 | ||||||
| Аустенитные | 1.4828 | 309 | 20Х20Н14С2 | ≤ 0,20 | 1,50-2,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 19,00-21,00 | 11,00-13,00 | 230 | 500-750 | 30 | 223 | |||
| 1.4833 | 309 S | ≤ 0,15 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 22,00-24,00 | 12,00-14,00 | 210 | 500-750 | 26 | 192 | |||||
| 1.4841 | 314, 310 | 20Х25Н20С2 | ≤ 0,20 | 1,50-2,50 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 24,00-26,00 | 19,00-22,00 | 230 | 550-800 | 30 | 223 | ||||
| 1.4843 | ≤ 0,20 | ≤ 1,00 | ≤ 1,50 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 22,00-25,00 | 17,00-20,00 | 295 | ≥ 540 | 35 | 192 | ||||||
| 1.4845 | 310S | 20Х23Н18 | ≤ 0,10 | ≤ 1,50 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 24,00-26,00 | 19,00-22,00 | 210 | 500-750 | 35 | 192 | ||||
| 1.4864 | 330 | ≤ 0,15 | 1,00-2,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 15,00-17,00 | 33,00-37,00 | 230 | 550-800 | 30 | 223 | |||||
| 1.4876 | B 163 | ≤ 0,12 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 19,00-23,00 | 30,00-34,00 | Ti 0,15-0,60 | 210 | 500-750 | 30 | 192 | ||||
| 1.4878 | 321 | ≤ 0,10 | ≤ 1,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 17,00-19,00 | 9,00-12,00 | Ti 5xC≤ 0,80 | 210 | 500-750 | 40 | 192 | ||||
| 0,10-0,20 | 0,80-2,00 | ≤ 2,00 | ≤ 0,045 | ≤ 0,030 | ≤ 0,011 | 17,00-20,00 | 8,00-11,00 | 275 | ≥ 570 | 40 | 192 | |||||||
