Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS. |
| Model Number: | ASME SB111 C44300-O61 Seamless Copper Nickel Brass Tube Cold Finished |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Standard:: | ASME SB111 | Material:: | C44300 |
|---|---|---|---|
| Testing: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. | Application: | Boiler Pipe, Hydraulic/Automobile Pipe, |
| Surface: | Polished | Shape: | Round Pipe |
| Finish: | Cold Drawn | ||
| High Light: | C44300 Copper Alloy Tube,ASME SB111 Copper Alloy Tube,ASME SB111 Seamless Boiler Tubes |
||

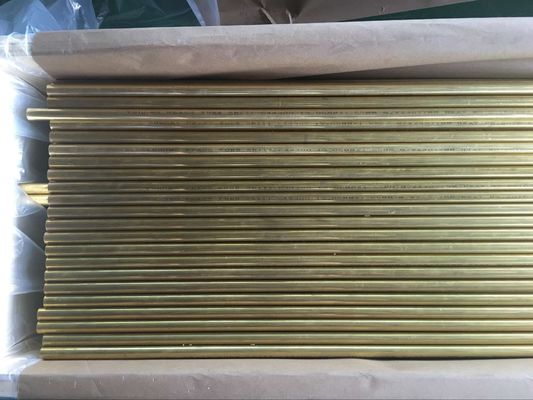

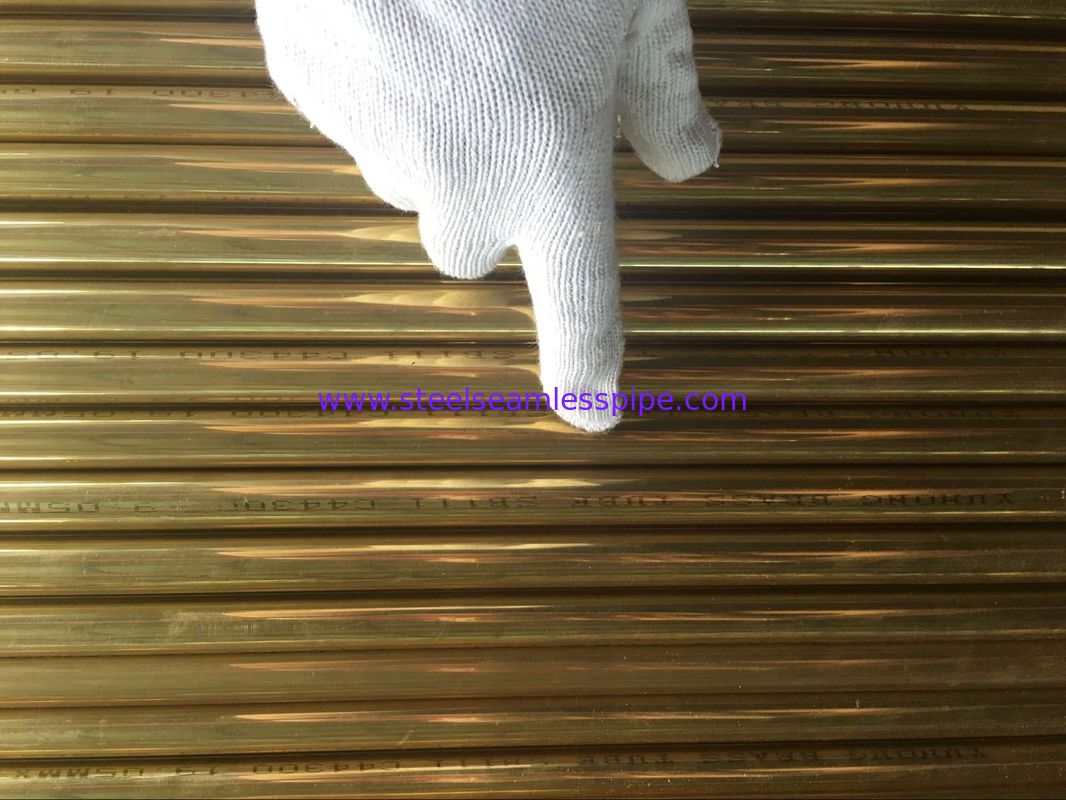

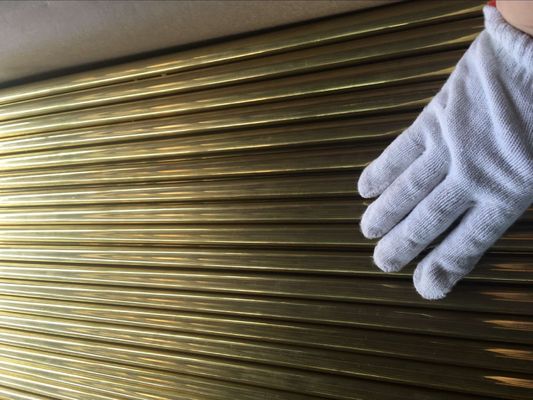

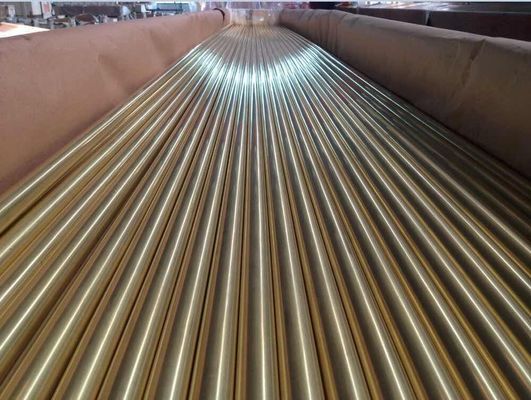

ASME SB111 C44300-O61 Seamless Copper Nickel Brass Tube Cold Finished
We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.
ASTM B111 ASME SB 111 C44300 Admiralty Brass is ideal for heat exchanger tubes. Normally made to order to meet engineering requirements, you will find this alloy often times used in oil and gas applications that also require its non corrosive properties. C44300 and C68700 have good corrosion resistance. C44300 Admiralty Brass Seamless Tubes Tensile strength minimum in 310Mpa, Yield Strength minimum in 105Mpa.
| COUNTRY | STANDARD | NAME |
| ASTM | ASTM B111 | Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock |
| GB/T | GB/T8890 | Seamless Copper Alloy Heat Exchanger Tubes |
| BS | BS2871 | Copper and Copper Alloys Tubes |
| JIS | JIS H3300 | Copper and Copper Alloy-Seamless Pipes and Tubes |
| DIN | DIN1785 | Wrought Copper and Copper Alloy Tubes for Condensers and Heat Exchangers |
ASTM B111 / ASME SB 111 C44300 Admiralty Brass Chemical Composition
| Elements | Composition, % |
| Cu, incl. Ag | 70.0-73.0 |
| Sn | 0.9-1.2 |
| Al | – |
| Ni, incl. Co | |
| Pb | 0.06 max |
| Fe | 0.07 max |
| Zn | Balance |
| Mn | – |
| As | 0.02-0.06 |
| Sb | – |
| P | – |
| Cr | – |
| Other named elements | – |
ASTM B111 / ASME SB 111 C44300 Admiralty Brass Mechanical Properties
| Properties | Measurement |
| Yield strength | 105 MPa |
| Melting point | 899 ~ 938 °C |
| Tensile strength | 310 MPa |
| Thermal conductivity | 109 W/m-K @ 20.0 °C |
| Density | 8.53 g/cc |
| Heat capacity | 0.09 cal/g-°C @ 20ºC |
| CTE linear strength | 20.2 10-6/°C @ 20.0 – 300 °C |
ASTM B111 / ASME SB 111 C44300 Admiralty Brass Physical Properties
| Copper or Copper Alloy UNS No. | Melting Point | Density | Coefficients of Linear Thermal Expansion | Specific Heat Capacity | Thermal Conductivity | |||||
| °C | °F | lb/in3 | g/cm3 | 1×10-6/°C @ 20.0 – 30.0 °C | 1×10-6/°F @ 70.0 – 570 °F | cal/g-°C, 20 °C | BTU/lb-°F @ 70°F | W/m-K, 20 °C | BTU/ft2/ft/h/°F @ 70°F | |
| C44300 | 2140 – 2260 | 2010-2100 | 0.308 | 8.53 | 16.2 | 9 | 0.09 | 0.09 | 29 | 17 |
Application:
SB111 C44300 material has the following benefits:
Test:
