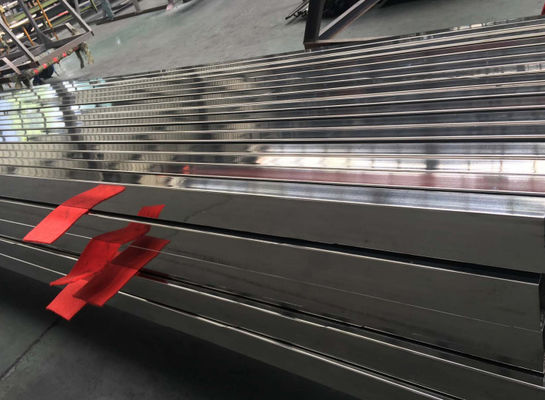

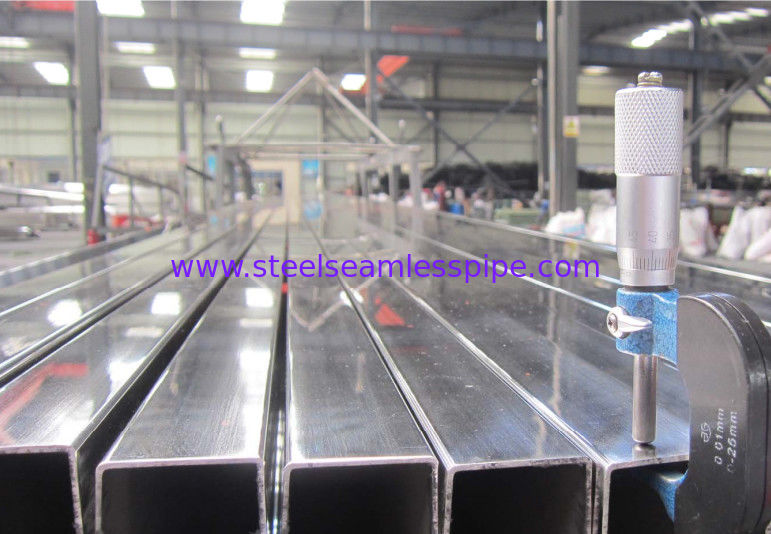

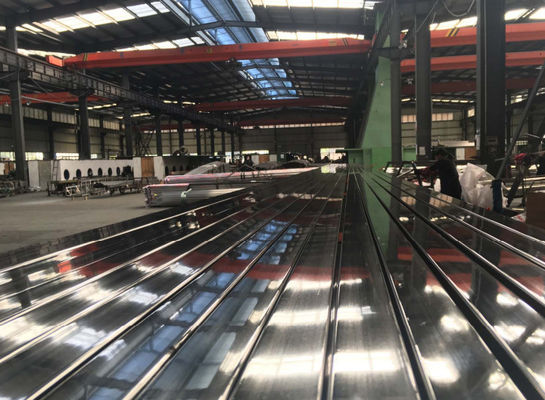

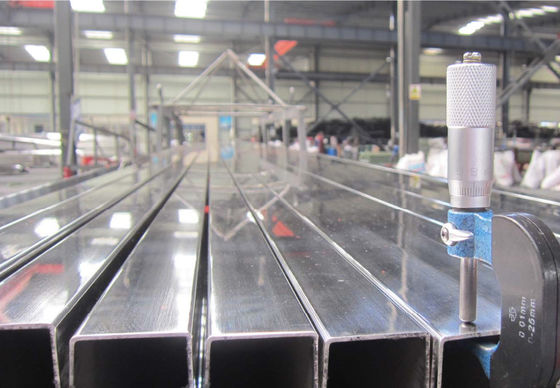

Welding ASTM A554 TP316L Square Rectangular Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A554 TP316L STAINLESS STEEL WELDED SQUARE TUBE
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
STANDARD: JIS, AiSi, ASTM, GB, DIN, EN SPECIFICATION: ASTM A554 TP316L STAINLESS STEEL WELDED SQUARE TUBE
Package: Standard Seaworthy Package Shape: Round.square.Rectangle
Technique: Cold Rolled Hot Rolled Processing Service: Bending, Welding, Decoiling, Punching, Cutting
Type: Seamless,Welded Color: Customerized.
High Light:

TP316L square rectangular tube

,

ASTM A554 square rectangular tube

,

ASTM A554 rectangle metal tubing

ASTM A554 TP316L STAINLESS STEEL WELDED SQUARE TUBE



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:

1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),

B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)

C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.

Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.

Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.

2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...

3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.



ASTM A554 316L Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
ASTM A554 316L min. 16 2.0-3.0 10
max. 0.035 2 0.75 0.045 0.03 18 14



ASTM A554 316L Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
ASTM A554 316L 485 170 40 95 217



ASTM A554 316L Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
ASTM A554 316L 8000 193 15.9 16.2 17.5 16.3 21.5 500 740





SS316L Equivalent Grade

TANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316LS11 / 316LS13 03Ch17N14M3 / 03Ch17N14M2 Z3CND171102           /            Z3CND181403

X2CrNiMo17-12-2          / X2CrNiMo18-14-3





Application :

  • Paper & Pulp Companies
  • High Pressure Applications
  • Oil and Gas Industry
  • Chemical Refinery
  • Pipeline
  • High Temperature Application
  • Water Pipe Line
  • Nuclear Power Plants
  • Food Processing and Dairy Industries
  • Boiler & Heat Exchangers
  • Stainless steel tube for Chemical and petrochemical
  • Welded Mechnaical Tubing used for Power generation
  • Stainless Steel tubing for Renewable energy
  • Welded Stainless Steel tube for Pulp and Paper
  • Stainless Steel tubing for Process piping
  • Welded Stainless Steel tubing used for Pharmaceutical
  • Stainless Steel tube applications for Food and beverage
  • Stainless Steel tubing used for Oil and gas
  • Stainless Steel tube applications in Mining
  • Stainless Steel tube used for Water/waste
  • Stainless steel tube application for Marine Industry
  • Welded tube application for Fertilizers
