Home ProductsCarbon Steel Pipe

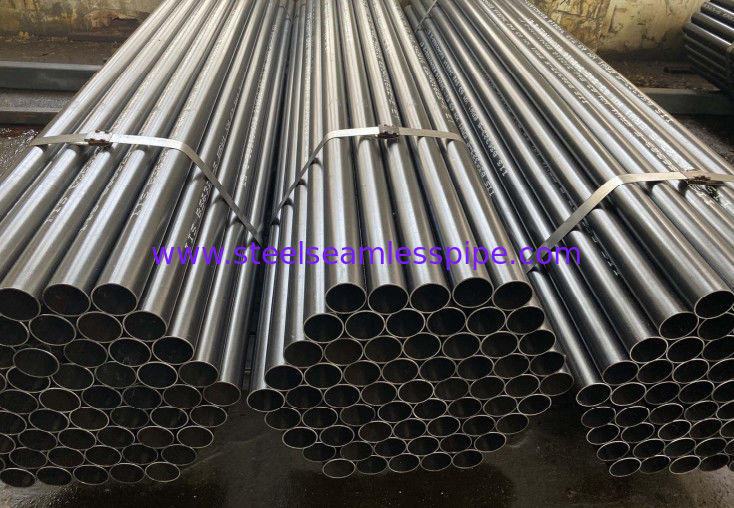

BS 6323-5 ERW1 12m Length Carbon Steel Pipe

BS 6323-5 ERW1 12m Length Carbon Steel Pipe

  • BS 6323-5 ERW1 12m Length Carbon Steel Pipe
  • BS 6323-5 ERW1 12m Length Carbon Steel Pipe
  • BS 6323-5 ERW1 12m Length Carbon Steel Pipe
  • BS 6323-5 ERW1 12m Length Carbon Steel Pipe
BS 6323-5 ERW1 12m Length Carbon Steel Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG SPECIAL STEEL
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number: BS 6323-5 ERW1 ERW Carbon Boiler & Air Heater Tubes
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE

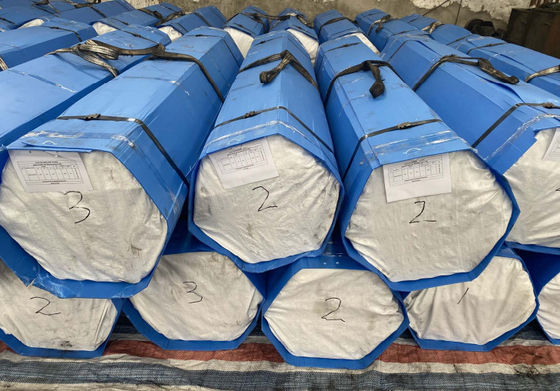

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Specification: BS 6323-5 ERW1 ERW Carbon Boiler & Air Heater Tubes Certification: ISO
Shape: Round Application: For Fluid And Gas Transport
Technique: Cold Drawn/ Cold Rolled Steel Grade: 300 Series
Surface Treatment: Annealed, Polished Etc. Model Number: 201/202/304/310/316L/430
Length: 1-12m Or As Your Requirements Product Name: Stainless Steel Tubing
Color: Customerized,Silver
High Light:

ERW1 Carbon Steel Pipe

,

BS 6323-5 Carbon Steel Pipe

,

12m Length Carbon Steel Pipe

BS 6323-5 ERW1 Carbon Steel SMLS Boiler & Air Heater Tubes



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.





Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:

1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),

B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)

C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.

Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.

Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.

2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...

3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.





BS 6323-5 ERW1 Carbon Steel SMLS Boiler & Air Heater Tubes Chemical Composition

Specification Type Grade Chemical Composition%
C Mn. P S SI
Min. Max. Min. Max. Min. Max. Min. Max.
IS: 2416 Pt-IV ERW 310 0.08 0.25 0.35 1.4 0.05 0.05   0.35
360 0.08 0.25 0.35 1.4 0.05 0.05   0.35
440 0.08 0.25 0.35 1.4 0.05 0.05 - 0.35
IS :11714 Pt-III ERW - 0.06 0.18 0.27 0.63 0.048 0.058 - -
IS : 1914 Pt-IV ERW 320 0.08 0.25 0.35 1.4 0.05 0.05 - 0.35
360 0.08 0.25 0.35 1.4 0.05 0.05 - 0.35
440 0.08 0.25 0.35 1.4 0.05 0.05 - 0.35
BS:3059 Pt-I ERW 320 - 0.16 0.3 0.7 0.04 0.04 - 0.35
BS:3059 Pt-II ERW 360 - 0.17 0.4 0.8 0.035 0.035 0.1 0.35
440 0.12 0.18 0.9 1.2 0.035 0.035 0.1 0.35
BS:6323 Pt-V ERW ERW-1 - 0.13 - 0.6 0.05 0.05 - -
ERW-2 - 0.16 - 0.7 0.05 0.05 - -
ERW-3 - 0.2 - 0.9 0.05 0.05 - 0.35
ASTM- A-178 ERW A 0.06 0.18 0.27 0.63 0.035 0.035 - -
C - 0.35 - 0.8 0.035 0.035 - -
ASTM- A-214 ERW - - 0.18 0.27 0.63 0.035 0.035 - -
ASTM A333 & A334 ERW 1 - 0.3 0.4 1.06 0.025 0.025 - -
6 - 0.3 0.29 1.06 0.025 0.025 0.1 -







BS 6323-5 ERW1 Carbon Steel SMLS Boiler & Air Heater Tubes Mechanical Properties

Specification Type Grade Mechanical Properties Remarks Impect /Hardness
Yield Strength Tensile Strength % Elongation e
Min. Max. Min. Max..
PSI MPa PSI MPa PSI MPa PSI MPa
IS: 2416 Pt-IV ERW 310 - 152 - - - 304 - 402 (100-RM / 9.81) /C, C=2.20 , RM=Measured T.S
360 - 177 - - - 353 - 451
440 - 201 - - - 402 - 500
IS :11714 Pt-III ERW - - - - - - - - - - 72 HRB(Max.)
IS : 1914 Pt-IV ERW 320 - 176 - - - 320 - 480 (100-RM / 9.81) /C, C=2.20 , RM=Measured T.S -
360 - 198 - - - 360 - 500 -
440 - 242 - - - 440 - 580 -
BS:3059 Pt-I ERW 320 - 195 - - - 320 - 480 25 -
BS:3059 Pt-II ERW 360 - 235 - - - 360 - 500 24 -
440 - 245 - - - 480 - 580 21 -
BS:6323 Pt-V ERW ERW-1 - 200 - - - 300 - - D/a< 20 D/a >20 -
ERW-2 - 250 - - - 340 - - 10 20 -
ERW-3 - 300 - - - 400 - - 8 15 -
7 12 -
ASTM- A-178 ERW A 26,000 180 - - 47,000 325 - - 35 -
C 37,000 255 - - 60,000 415 - - 30 -
ASTM- A-214 ERW - - - - - - - - -   72 HRB(Max.)
ASTM A333 & A334 ERW 1 30,000 205 - - 55,000 380 - - 35 18 J, 85 HRB(Max.)
6 35,000 240 - - 60,000 415 - - 30 18 J,90 HRB(Max.)









Carbon Steel SMLS Boiler & Air Heater Tubes Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry





Carbon Steel SMLS Boiler & Air Heater Tubes Test Certificates



  • EN 10204/3.1B,
  • Raw Materials Certificate
  • 100% Radiography Test Report
  • Third Party Inspection Report, etc





Material Testing:

  • Mechanical Testing Such as Tensile of Area
  • Hardness Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Flattening Test
  • Micro and MacroTest
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
