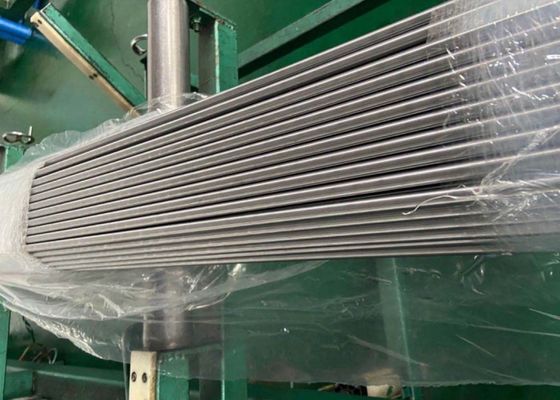

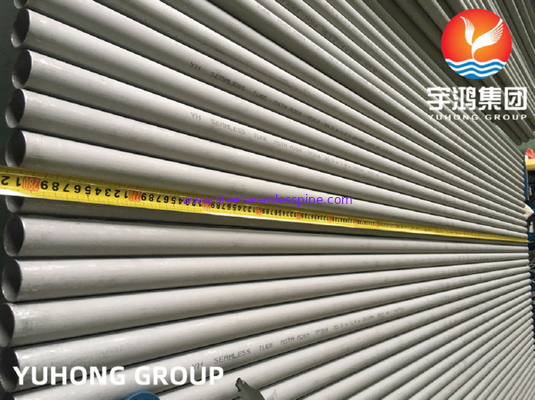

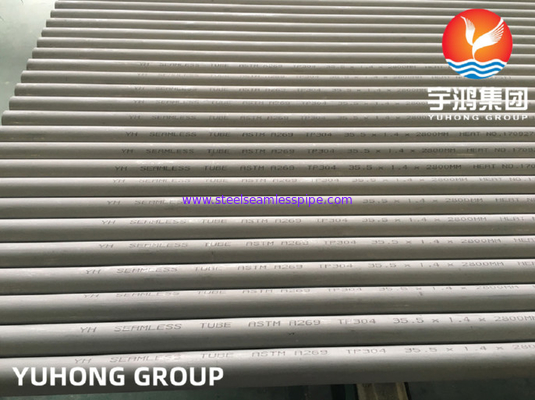

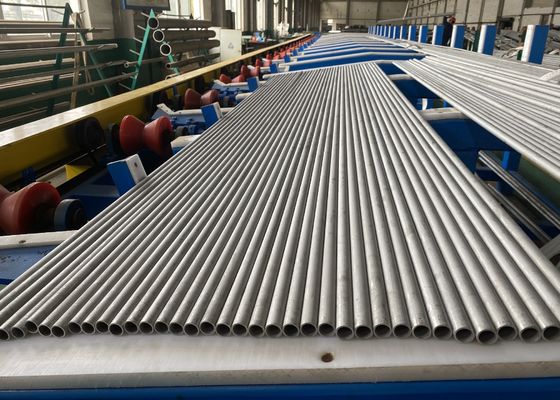

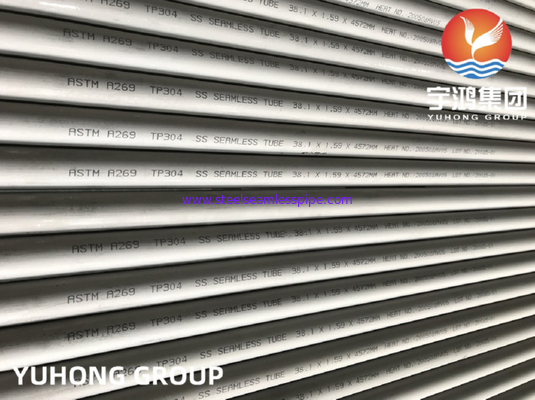

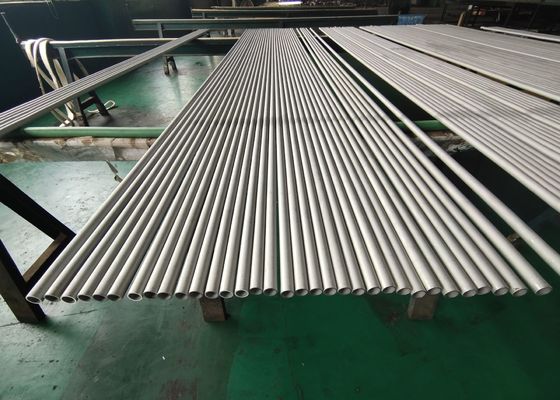

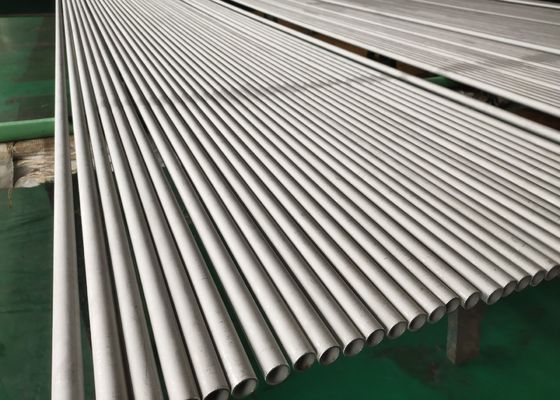

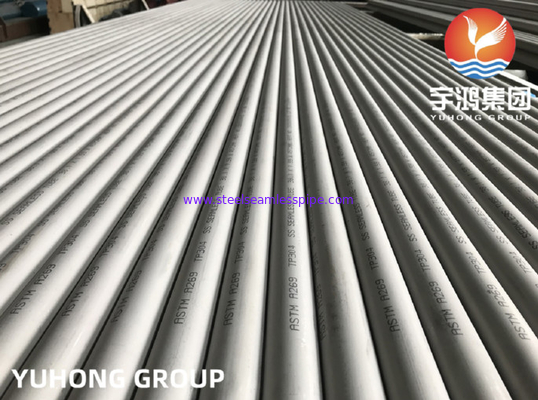

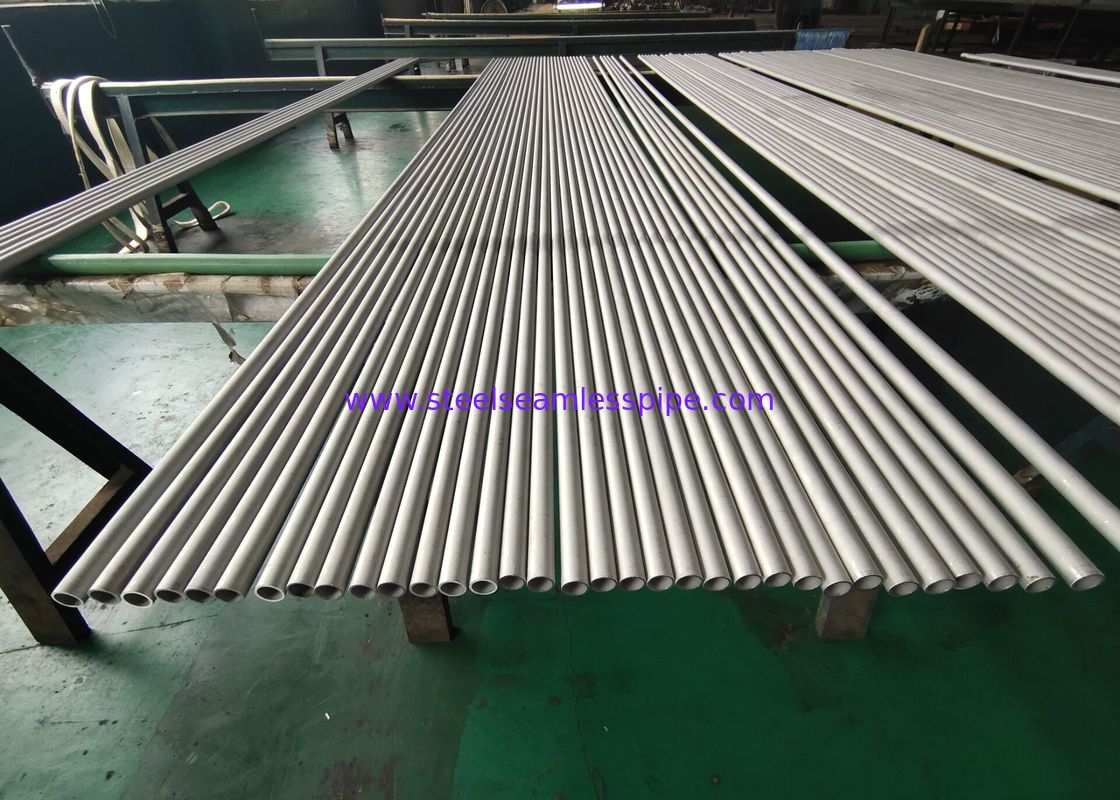

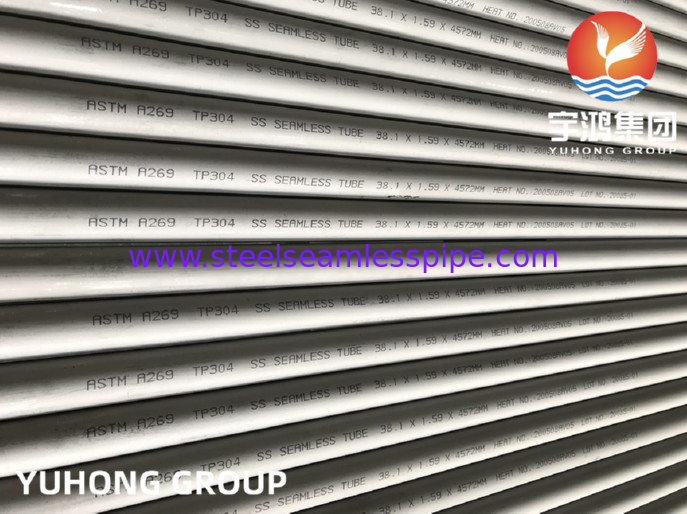

ASTM A269 TP304 Stainless Steel Seamless Tube 38.1*1.59*4572

ASTM A269 TP304 Stainless Steel Seamless Tube 38.1*1.59*4572

ASTM A269 TP304 Stainless Steel Seamless Tube 38.1*1.59*4572
video
ASTM A269 TP304 Stainless Steel Seamless Tube 38.1*1.59*4572
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM A269 TP304 Seamless/Welded Stainless Steel Tube
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C, T/T
Supply Ability: 1500 tons per month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
STANDARD: JIS, AiSi, ASTM, GB, DIN, EN SPECIFICATION: ASTM A269 TP304 Seamless/Welded Stainless Steel Tube
Package: Standard Seaworthy Package Shape: Round/Square/Rectangular/Oval
Application: Marine & Offshore, Oil And Gas,boiler,heat Exchanger,handrail Technique: Cold Rolled Hot Rolled
Highlight:

TP304 Welded Stainless Steel Tube

,

A269 Welded Stainless Steel Tube

,

ABS Welded Stainless Steel Tube

ASTM A269 TP304 Seamless/Welded Stainless Steel Tube



We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.



Specifications: ASTM A/ASME SA213/A249/A269/A312/A358 Pipes and Tubes Sizes (Seamless): 1/2" NB - 16" NB

Pipes and Tubes Sizes (ERW): 1/2" NB - 24" NB

Pipes and Tubes Sizes (EFW): 6" NB - 100" NB

Pipes and Tubes Wall Thickness available: Schedule 5S - Schedule XXS (heavier on request)

Pipe and Tubes Other Materials Testing: NACE MR0175, H2 SERVICE, OXYGEN SERVICE, CRYO SERVICE, etc.

Dimensions: All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME and API etc.



A269 TP304 Stainless Steel Seamless Tube Chemical Composition

SS 304 304N 304LN
Ni 8 – 11 8 – 11 8 – 11
Fe Balance
Cr 18 – 20 18 – 20 18 – 20
C 0.08 max 0.08 max 0.035 max
Si 0.75 max 0.75 max 0.75 max
Mn 2 max 2 max 2 max
P 0.040 max 0.040 max 0.040 max
S 0.030 max 0.030 max 0.030 max
N   0.10 – 0.16 0.10 – 0.16



A269 TP304 Stainless Steel Seamless Tube Mechanical Properties

Density 8.0 g/cm3
Melting Point 1400 °C (2550 °F)
Tensile Strength Psi – 75000 , MPa – 515
Yield Strength (0.2%Offset) Psi – 30000 , MPa – 205
Elongation 35%





A269 TP304 Stainless Steel Seamless Tube Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
304/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720



Equivalent Grade

GRADE UNS NO OLD BRITISH EURONORM SWEDISH SS JAPANESE JIS
BS EN NO NAME
304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304





Diameter Tolerance ASTM A269 TP304 Tube

NPS ASTM A269 TP304 Tube OD Tolerance
+ –
inch mm inch mm
1/8~1 1 /2 1/64(0.015) 0.4 1/32(0.031) 0.8
> 1 1 /2~4 1/32(0.031) 0.8 1/32(0.031) 0.8
> 4~8 1/16(0.062) 1.6 1/32(0.031) 0.8
> 8~18 3/32(0.093) 2.4 1/32(0.031) 0.8
> 18~26 1/8(0.125) 3.2 1/32(0.031) 0.8
> 26~34 5/32(0.156) 4 1/32(0.031) 0.8
> 34~48 3/16(0.187) 4.8 1/32(0.031) 0.8





Wall Thickness Tolerance ASTM A269 TP304 Tube

NPS ASTM A269 TP304 Tube Tolerance, %
+ –
1/8-2 1 /2 20 12.5
3~18, t/D≤ 5% 22.5 12.5
3~18, t/D> 5% 15 12.5
≥ 20, welded 17.5 12.5
≥ 20, seamless, t/D≤ 5% 22.5 12.5
≥ 20, seamless, t/D> 5% 15 12.5





A269 TP304 Stainless Steel Seamless Tube Advantages

  • High strength
  • Resistant to high mechanical stresses
  • Resistant to high pressure
  • Resistant to high temperature
  • Good formability
  • Reusable



Application

  • Chemical and petrochemical
  • Power generation
  • Renewable energy
  • Pulp and Paper
  • Process piping
  • Pharmaceutical
  • Food and beverage
  • Oil and gas
  • Mining
  • Water/waste
  • Marine Industry
  • or Fertilizers
