Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A179 + AL1060 L Type Finned Tube |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According to client requirements |
| Tube Specification: | ASTM A179/ASME SA179 | Tube Material:: | A179 |
|---|---|---|---|
| Fins Material: | AL1060 | Fins Type: | L Type |
| Fin Thickness: | Generally 0.4mm ~0.6mm | Tube Length: | Can Customized |
| High Light: | 316L Finned Tube,TP304 L Type Finned Tube,Spiral Extruded Heat Exchanger Fin Tube |
||

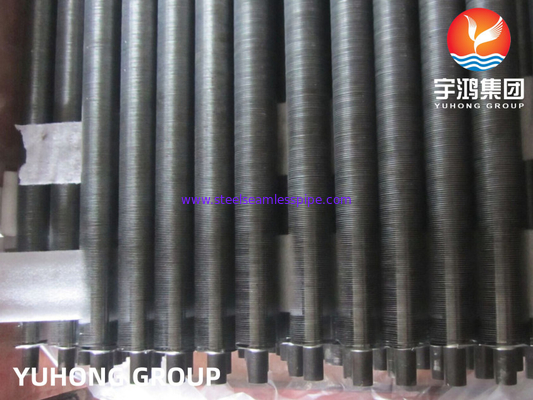

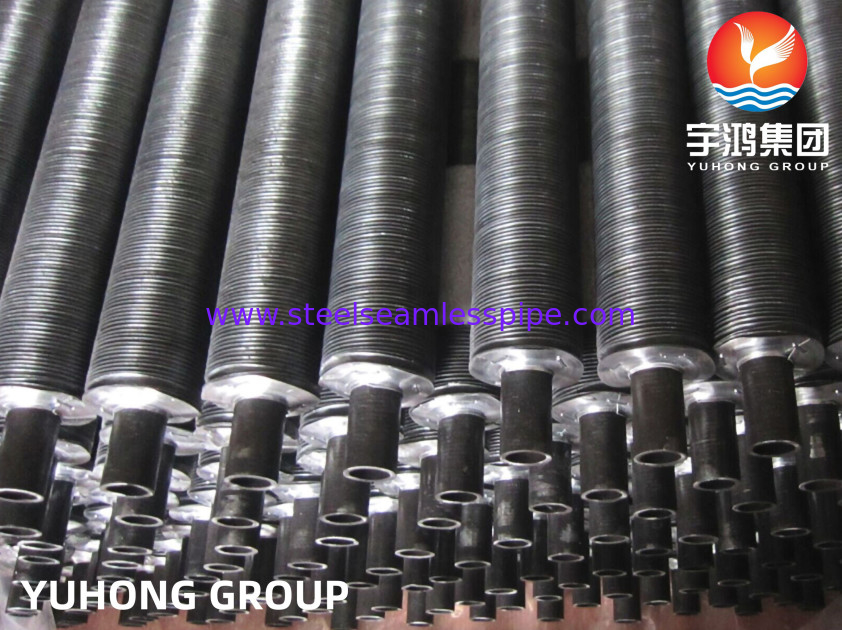

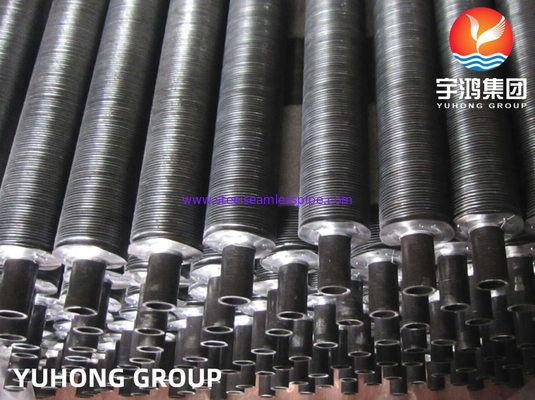

ASTM A179/ASME SA179+ AL1060 Spiral Extruded L Type Finned Tube For Heat Exchanger
In L Type Fin Tube or also known as ‘L’ Foot Fin Tube the finning is done by wrapping around the Fin stock spirally around the base tube. This is as reason also known as spirally wound Fin Tube. The base of the fin stock is Shaped in to and ‘L’ shape which gives a base for the fin to stand on firmly. Also the ‘L’ shape provides a certain protection against the atmospheric corrosion.
Manufacturing Process
Fin strips (usually aluminum and copper) are folded into an L shape and wound under tension on the surface of the base tube. The feet of the fins are connected together and cover the surface of the fins.
| Core Tube Materials | |
| Carbon Steel Tubes | A179, A192, SA210 Gr A1/C, A106 Gr B, A333 Gr3 Gr6 Gr8, A334 Gr3 Gr6 Gr8, 09CrCuSb, DIN 17175 St35.8 St45.8, EN 10216 P195 P235 P265, GB/T3087 Gr10 Gr20, GB/T5310 20G 20MnG, |
| Alloy Steel Tubes | A209 T1 T1a,A213 T2 T5 T9 T11 T12 T22 T91,A335 P2 P5 P9 P11 P12 P22 P91,EN 10216-2 13CrMo4-5 10CrMo9-10 15NiCuMoNb5-6-4 |
| Stainless Steel Tubes | TP304/304L, TP316/TP316L TP310/310S TP347/TP347H |
| Copper Tubes | UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10 |
| Titanium Tubes | Gr. 2 |
| Fin materials | |
| Aluminum (Alu.1100, Alu.1060), Copper, Steel | |
Features of L Type Finned Tube
1. The trapezoidal section formed by the calendering of L Type Finned Tube for heat exchanger is consistent with the distribution of heat flow density, the tubes are tightly combined, and the thermal efficiency is high, which eliminates the contact heat caused by the gap between the tubes and the finned tube. resistance, the fin spacing is uniform, and the heat transfer performance is good.
2. The tube can withstand temperatures up to 150°C and there is no risk of atmospheric corrosion or thermal stress.
3. The L-type finned tube provides the contact area between the fin strip and the surface of the tube to protect the tube wall from atmospheric corrosion.
4. This L TYPE design is much more economical than LL, KL or even G-embedded types.
5. Maximum operating temperature: 230°C
For a quick quotation, plz send with following requirements
Number of pieces,
base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Delivery period required.
| * These are the most common fin/tube patterns. We have more than 20 different plate fin and tube combinations. Contact me for more information and options. | ||
| Helical Fin Surface (Tube OD – Available Helical Fin Height on the Tube) |
||
| 5/8″ – 3/8″, 1/2″ and 7/16″ | 1″ – 3/8″, 1/2″ , 7/16″ and 5/8″ | 1 1/4″ – 3/8″, 1/2″ , 7/16″ and 5/8″ |
| 15.875mm – 9.525mm, 12.7mm and 11.113mm | 25.4mm – 9.525mm, 12.7mm, 11.113mm and 15.875mm | 31.75mm – 9.525mm, 12.7mm, 11.113mm, and 15.875mm |
|
||
Usages
L Type Finned Tube is usually used in air coolers in petrochemical, power, paper, tobacco, building heating and other industries as well as heat exchangers in power plants (electricity, nuclear, thermal and geothermal power plants).
