Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001 |
| Model Number: | T1 , Ta, T1b |
| Minimum Order Quantity: | 1000KG |
|---|---|
| Packaging Details: | requirements/wooden case packing |
| Delivery Time: | 30 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | according to client requirements |
| Material Grade: | T1 , Ta, T1b | Standard: | ASME SA213, ASTM A213, ASME SA209 |
|---|---|---|---|
| Certificate: | PED, ASME , ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001, ISO 14001, ISO18001 | Third Party Inspection: | BV, SGS, IBR, ABS, LR, DNV-GL , TUV |
| Application: | Boilier, Heat Exchange, Heating , Cooling | NDT: | Eddy Current Test , Ultrasonic Test, Hydrostatic Test |
| High Light: | asme sa209 t1 seamless boiler tubes,asme sa213 t1 seamless boiler tubes,ped steel boiler tube |
||

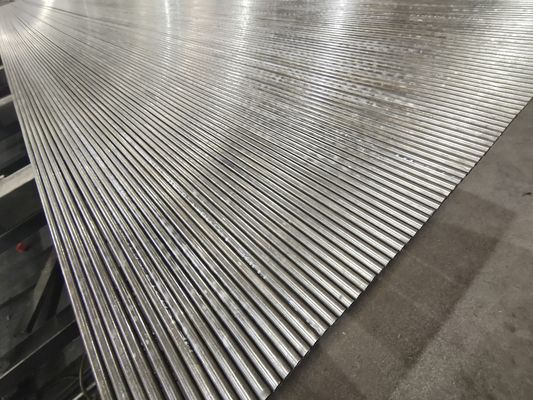

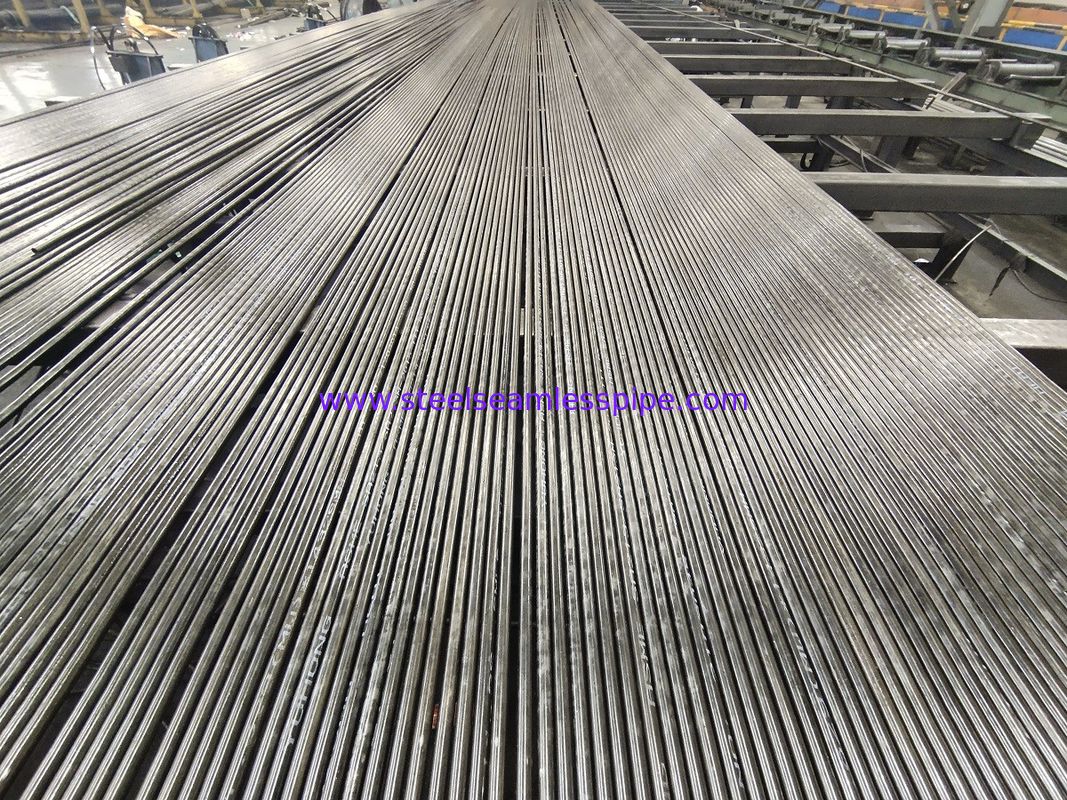

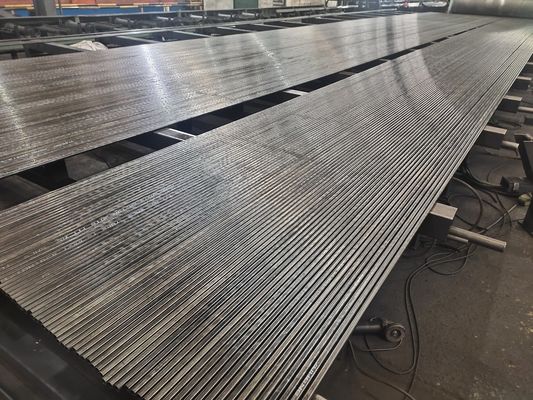

ASME SA213 T1 ALLOY STEEL SEAMLESS TUBE , BOILER AND HEAT EXCHANGE APPLICATION
Alloy steel tubes is a kind of steel alloyed tube with other elements in amounts
of between 1 and 50% by weight to improve its mechanical properties.Alloying
elements are added to achieve certain properties in the material. As a guideline,
alloying elements are added in lower percentages (less than 5%) to increase
strength or harden ability or in larger percentages (over 5%) to achieve special
properties, such as corrosion resistance or extreme temperature stability.
ASTM A213 T1 BOILER TUBE SPECIFICATIONS
| SA213 T1 Tube Standard | ASTM A213 T1, SA213 T1 (with IBR Test Certificate) |
|---|---|
| SA213 T1 Tube Specifications | ASTM A213 & ASTM A209 (T1 , Ta, T1b) BS/3059/90/PartII/620 & 622 DIN/17175/13CrMo44 DIN/17175/10CrMo910 DIN/17175/15Mo3 |
| SA213 T1 Tube Size | 6.35 mm OD to 101.6 mm OD |
| Sch. & Swg. | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg., 3.6 mm Thk |
| SA213 T1 Tube Thickness | 3-12mm |
| SA213 T1 Tube Origin | European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material) |
| SA213 T1 Tube Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm
|
| Craft | Cold rolled and Cold drawn |
| SA213 T1 Tube Type | Seamless / ERW / Welded / Fabricated |
| SA213 T1 Tube available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| SA213 T1 Tube Length | Standard Double & In Cut length also. |
| SA213 T1 Tube End | Plain End, Beveled End, Treaded |
| Specialized in | ASME SA213 T1 Boiler Tube, SA213 T1 Heater Tube, SA213 T1 Heat Exchanger Tube |
| SA213 gr T1 Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| SA213 grade T1 Tube Application | Seamless Ferritic Alloy Steel Tube for High-Temperature Service |
Material: T1, K90941, K90941 Seamless Tubes, Check below SA213 T1 Material Composition
ASTM A213 /SA213 T1 Chemical Composition
| Grade | C≤ | Mn | P≤ | S≤ | Si≤ | Mo |
|---|---|---|---|---|---|---|
| T1 | 0.10~0.20 | 0.30~0.80 | 0.025 | 0.025 | 0.10~0.50 | 0.44~0.65 |
| Grade | Tensile Strength, MPa | Yield Strength, MPa | Elongation, % | Hardness, HB |
|---|---|---|---|---|
| T1 | 415 min | 205 min | 30 min | 163 max |
| Alloy Steel Boiler and Heat Exchanger Tubes | |||||||||
| ASTM | ASME | JIS G 3462 | BS | DIN | ISO | ABS | NK | LRS | DNV |
| A209 T1 | SA 209 T1 | STBA 12 | 3606 243 | 17175 | 2604 II TS26 | ABS K | KSTB 12 | Sec | |
| 15Mo3 | 4-E-TS380 | ||||||||
| A250 T1 | SA250 T1 | 3606 245 | 17177 | 2604 III TS26 | |||||
| 15Mo3 | |||||||||
| A209 T1a | SA 209 T1a | STBA 13 | ABS L | ||||||
| A250 T1a | SA250 T1a | ||||||||
| A213 T2 | SA213 T2 | STBA 20 | 17175 | 2604 II TS33 | Sec | ||||
| 14MoV83 | 4-E-TS440 | ||||||||
| A250 T2 | SA250 T2 | ||||||||
| A213 T12 | SA 209 T12 | STBA 22 | 3606 620 | 17175 | 2604 II TS32 | ABS O | KSTB 22 | Sec 6 | Sec |
| 13CrMo44 | 1Cr 1/2Mo-440 | 4-E-TS410-3 | |||||||
| A250 T12 | SA250 T12 | 2604 III TS32 | |||||||
| A213 T11 | SA199 T11 | STBA 23 | 3606 621 | ABS N | KSTB 23 | Sec | |||
| 4-E-TS410-4 | |||||||||
| SA 209 T11 | |||||||||
| A213 T22 | SA199 T22 | STBA 24 | 3606 622 | 17175 | 2604 II TS34 | ABS P | KSTB 24 | Sec 6 | Sec |
| 10CrMo910 | 2-1/2Cr 1Mo-410 | 4-E-TS450-2 | |||||||
| SA213 T22 | |||||||||
| A213 T5 | SA199 T5 | STBA 25 | 3606 625 | 2604 II S37 | Sec | ||||
| 4-E-TS430 | |||||||||
| SA213 T5 | |||||||||
| A213 T9 | SA199 T9 | STBA 26 | 3059-P2 622-490 | 2604 II S38 | Sec | ||||
| 4-E-TS500 | |||||||||
| SA213 T9 | |||||||||
| A209 T1b | SA 209 T1b | 3059-P2 243 | 17175 | 2604 II S39 | ABS M | Sec 6 | Sec | ||
| 17Mn4 | 2-1/2Cr 1Mo-490 | 4-E-TS450-1 | |||||||
| 3059-P2 620-460 | (A209- | ||||||||
| T1b) | |||||||||
| A250 T1b | SA250 T1b | 3059-P2 629-470 | 17175 | 2604 II S40 | Sec | ||||
| 14MoV63 | 4-E-TS460-2 | ||||||||
| A250 T11 | SA250 T11 | 3059-P2 629-590 | 17175 | Sec | |||||
| X20CrMoV12 1 | 4-E-TS590 | ||||||||
| A250 T22 | SA250 T22 | 3059-P2 762 | Sec | ||||||
| 4-E-TS610 | |||||||||
| A213 T5b | SA213 T5b | 3059-P2 304S51 | Sec | ||||||
| 4-E-TS690 | |||||||||
| A213 T5c | SA213 T5c | 3059-P2 306S51 | |||||||
| A213 T17 | SA 209 T17 | 3059-P2 316S52 | |||||||
| A213 T21 | SA213 T21 | 3059-P2 316S51 | |||||||
| A213 T23 | SA213 T23 | 3059-P2 321S51 | |||||||
| A213 T91 | SA213 T91 | 3059-P2 347S51 | |||||||
| A213 T92 | SA213 T92 | 3059-P2 215S15 | |||||||
Type:Seamless
Form:Round Pipes/Tubes, Square Pipes/Tubes, Coiled Tubes,Pan Cake Coils, Hydraulic Tubes
Length:Single Random, Double Random & Required Length
End:Plain End, Beveled End, Treaded
End Protection:Plastic Caps
Outside Coating:Black Painting, Anti-Corrosion Oil, Galvanized Finish, Finish as per customer Requirements
Inspection, Test Reports:Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports.
| T1 Beveled End Tubes | A213 Gr T1 High Pressure Tubes |
| SA213 Grade T1 Tube | T1 Steel Grade Boiler Tube |
| ASME SA213 Gr T1 IBR Approved Tube | SA213 Gr T1 IBR Certified Tubing |
| SA213 T1 Steel Tubing | T1 Alloy Steel IBR Approved Boiler Tubing |
| ASTM A213 Grade T1 Tubes | SA 213 T1 Seamless Tubing |
| ASTM A213 T1 ERW Tubes | Alloy Steel T1 Boiler Tubes |
| ASME SA213 Gr T1 Seamless Tubes | SA213 T1 Steel ERW Tubing |
| SA213 Grade T1 Beveled End Tubing | IBR Certified ASTM A213 Gr T1 Tube |
| ASTM SA213 T1 IBR Approved Tubing | SA213 T1 Boiler Tubing |
| T1 Steel Grade Welded Tubes | T1 Alloy Steel IBR Tubing |
| T1 Steel IBR Approved Boiler Tubes | ASTM A213 Grade T1 Round Tubes |
| ASME SA213 Grade T1 Square Tube | ASTM A213 Grade T1 IBR Tubes |
| Alloy Steel T1 IBR Certified Boiler Tube | Plain End Beveled A213 T1 Steel Tube |
| High Pressure T1 Alloy Steel Tube | A213 Grade T1 Welded Tube |
| T1 Seamless Tube | A213 T1 IBR Certified Boiler Tubes |
| ASTM A213 Gr T1 High Strength Seamless Tube | SA213 Grade T1 Plain End Beveled Tubes |
| A213 T1 Single Random Length Tubing | A213 Gr T1 IBR Approved Boiler Tube |
| Plain End Beveled ASTM SA213 T1 Tubing | SA 213 T1 Square Tubing |
| A213 T1 Steel IBR Certified Tubes | ASTM A213 T1 Round Tube |
| ASME SA213 Gr T1 Round Tubing | SA213 Grade T1 Single Random Length Tubes |
| Alloy Steel T1 Cold Drawn Tubes | 40mm T1 Steel Grade Tube |
| SA213 T1 High Strength Rectangular Tube | SA213 Gr T1 Beveled End Tube |
| SA213 T1 IBR Certified Boiler Tubing | ASME SA213 T1 IBR Approved Tubes |
| Single Random Length A213 T1 Tubing | 50mm A213 Grade T1 Tube |
| ASTM A213 Grade T1 Rectangular Tube | SA213 Gr T1 Hot rolled Tubes |
| T1 Steel Grade High Pressure Tubing | Double Random T1 Tube |
| ASTM SA213 T1 Welded Tubing | SA 213 T1 Hydraulic Tube |
| ASME SA213 Grade T1 ERW Tube | IBR SA213 T1 Steel Tube |
| ASME SA213 T1 Cold Drawn Tube | 20mm A213 Gr T1 Tube |
| T1 Square Tubes | 10mm ASTM A213 T1 Tubing |
| ASME SA213 T1 Double Random Tubing | Double Random ASME SA213 Gr T1 Tubes |
| SA 213 T1 Rectangular Tubes | ASME SA213 Grade T1 Rectangular Tubing |
| ASTM A213 T1 Hydraulic Tubing | Cold Drawn Tubing |
| SA213 T1 Steel Hot rolled Tube | Alloy Steel T1 High Strength Seamless Tube |
| A213 T1 Steel Hydraulic Tubes | ASME SA213 Grade T1 Perforated Tube |
| A213 Grade T1 30mm Tube | SA213 Gr T1 Scaffold Tube |
| A213 Gr T1 Hot rolled Tubing | ASTM A213 Gr T1 Oval Tube |
| A213 Grade T1 Small Bore Tube | High Strength SA213 T1 Tube |
| ASTM A213 Gr T1 High Strength Round Tube | Large Diameter ASME SA213 T1 Tube |
