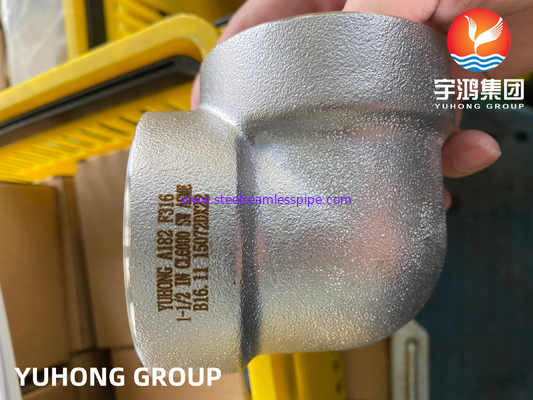

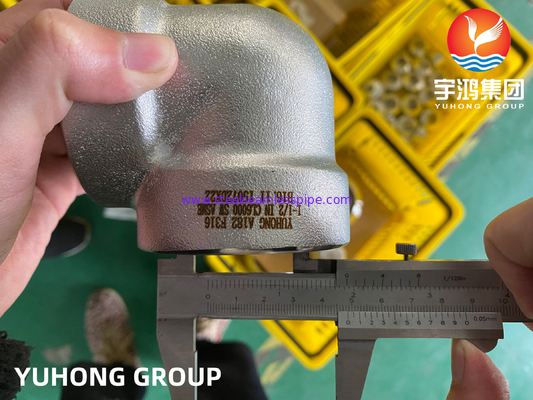

Name: ASTM A182 F316/316L Stainless Steel 90 Degree Elbow CL6000# SW B16.11
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A182 F316L
Price: 100000.00 USD
Availability: InStock

Yuhong Holding Group Co.,LTD

English

ASTM A182 F316/316L Stainless Steel 90 Degree Elbow CL6000# SW B16.11

Product Details:

Place of Origin:	CHINA
Brand Name:	YuHong
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A182 F316L

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7DAYS TO 60 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	ACCORDING TO CUSTOMER'S REQUEST

Contact Now

Material:

F316 F316L

OD:

1/8'' To 4''

PRESSURE:

1500# To 9000#

STANDARD:

ASTM A182

Highlight:

astm stainless steel tubing 90 degree elbow

b16.11 stainless steel tubing 90 degree elbow

a182 f316l stainless steel 90 elbow

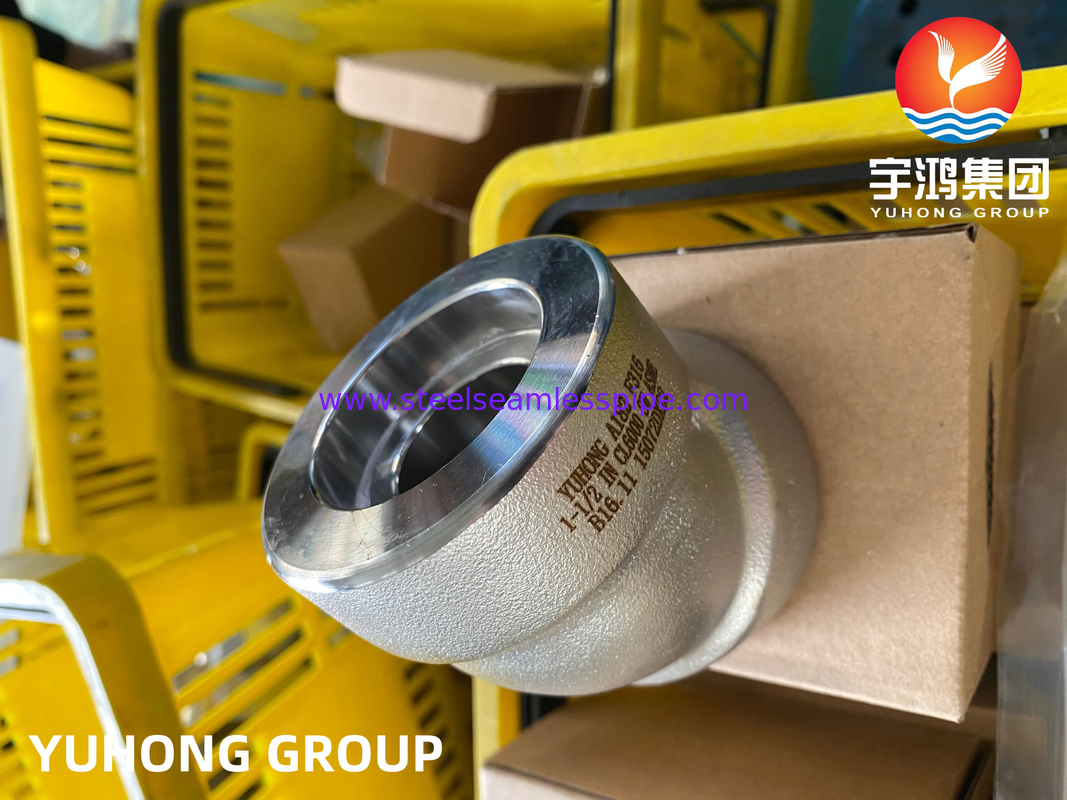

ASTM A182 F316L FORGED FITTINGS SW 3000#/6000#/9000# ASME B16.11 STAINLESS STEEL ELBOW REDUCER TEE

Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .

Products Socket Reducer Inserts

Product Pictures and Drawings


Type1		Type2

Dimensional Data

Socket weld reducer Inserts availbale in class 3000, 6000 and 9000

			Class 3000				Class 6000				Class 9000
Nominal Pipe Size	C	D	Fitting Type	A	B	E	Fitting Type	A	B	E	Fitting Type	A	B	E
3/8 x 1/4	0.675	0.555	1	7/16	3/4	15/16	1	7/16	7/8	1
1/2 x 3/8	0.850	0.690	1	7/16	13/16	1 1/16	1	7/16	15/16	1 3/16
1/2 x 1/4	0.850	0.555	1	7/16	13/16	15/16	1	7/16	7/8	1
3/4 x 1/2	1.060	0.855	1	7/16	7/8	1 5/16	1	7/16	1 1/16	1 3/8	1	7/16	1 3/16	1 3/4
3/4 x 3/8	1.060	0.690	2	7/16	5/8	-	1	7/16	7/8	1 3/16
3/4 x 1/4	1.060	0.555	2	3/8	11/16	-	2	3/8	7/8	-
1 x 3/4	1.325	1.065	1	9/16	15/16	1 1/2	1	9/16	1 1/8	1 11/16	1	9/16	1 1/4	2
1 x 1/2	1.325	0.855	2	1/2	5/8	-	1	7/16	1 1/8	1 3/8	1	7/16	1 1/8	1 3/4
1 x 3/8	1.325	0.690	2	7/16	11/16	-	2	1/2	7/8	-
1 x 1/4	1.325	0.555	2	3/8	3/4	-	2	3/8	15/16	-
1 1/4 x 1	1.670	1.330	1	9/16	1	1 7/8	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/4 x 3/4	1.670	1.065	2	9/16	11/16	-	2	9/16	13/16	-	1	9/16	1 3/16	2
1 1/4 x 1/2	1.670	0.855	2	1/2	3/4	-	2	1/2	7/8	-	2	1/2	7/8	-
1 1/4 x 3/8	1.670	0.690	2	7/16	13/16	-	2	7/16	15/16	-
1 1/4 x 1/4	1.670	0.555	2	3/8	7/8	-	2	3/8	1	-
1 1/2 x 1 1/4	1.910	1.675	1	9/16	1 1/8	2 1/4	1	9/16	1 3/8	2 3/8	1	9/16	1 5/8	2 3/4
1 1/2 x 1	1.910	1.330	2	5/8	11/16	-	1	9/16	1 3/16	2	1	9/16	1 3/8	2 3/8
1 1/2 x 3/4	1.910	1.065	2	9/16	3/4	-	2	9/16	1	-	2	9/16	1	-
1 1/2 x 1/2	1.910	0.855	2	1/2	13/16	-	2	1/2	1 1/16	-	2	9/16	1	-
1 1/2 x 3/8	1.910	0.690	2	7/16	7/8	-	2	7/16	1 1/8	-
2 x 1 1/2	2.385	1.915	1	9/16	1 1/4	2 1/2	1	9/16	1 7/8	2 11/16	1	9/16	2 1/16	3
2 x 1 1/4	2.385	1.675	2	11/16	13/16	-	2	7/8	15/16	-	1	9/16	2	2 3/4
2 x 1	2.385	1.330	2	5/8	7/8	-	2	13/16	1	-	2	13/16	1	-
2 x 3/4	2.385	1.065	2	9/16	15/16	-	2	3/4	1 1/16	-	2	3/4	1 1/16	-
2 x 1/2	2.385	0.855	2	1/2	1	-	2	11/16	1 1/8	-	2	11/16	1 1/8	-
