Detailed Product Description

Standard:	DIN 86090	Grade:	C70600
Material:	Copper Alloy	Size:	Customized Size, 1/8"-2", 1/2"-48", 1/2"-6", DN15-DN1200
Thickness:	STD, DIN, SCH40, SGP, SCH10-XXS(2-60mm)	Application:	Seawater Cooling System
Highlight:	DIN 86090 CuNiFe elbow , marine engineering steel fitting , seawater pipeline C70600 elbow

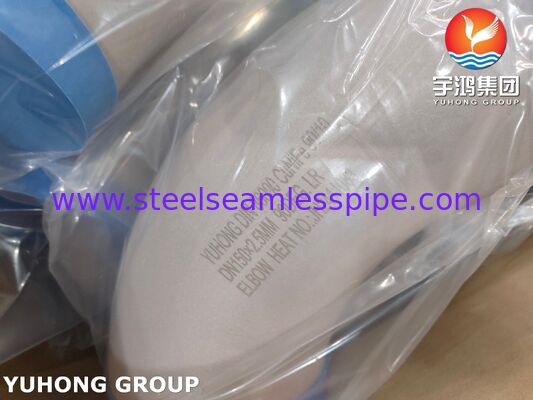

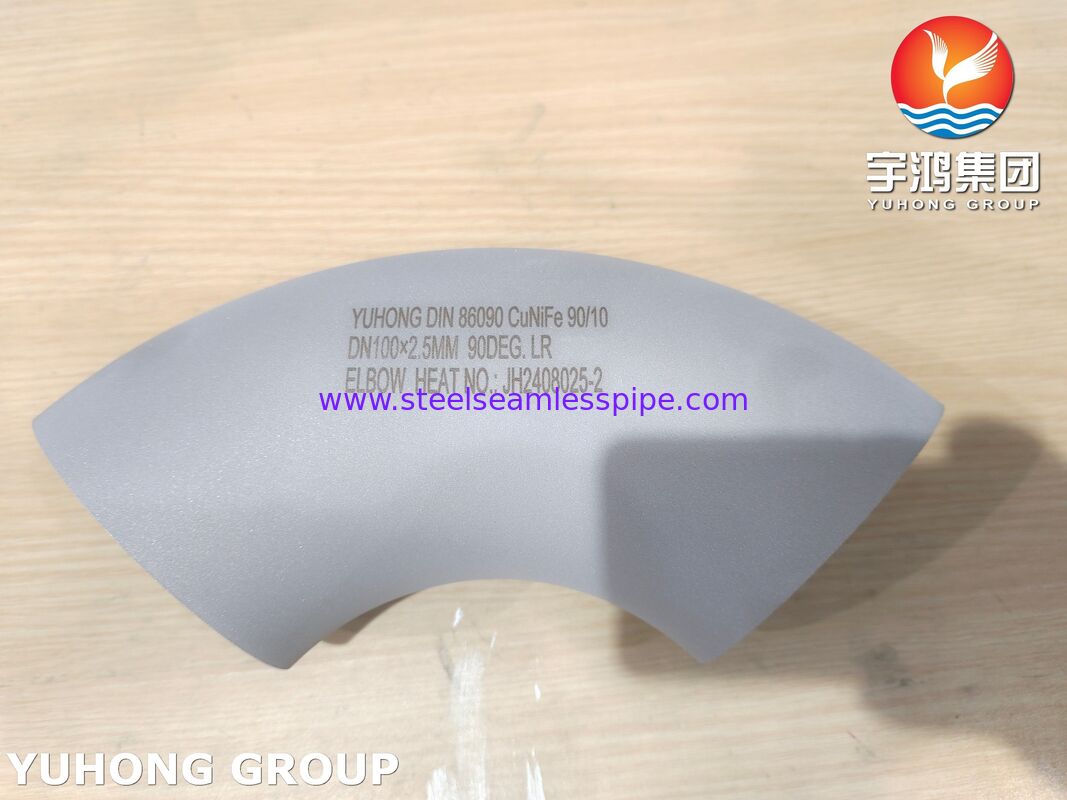

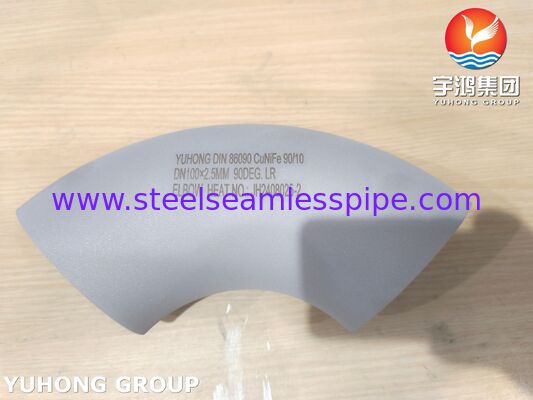

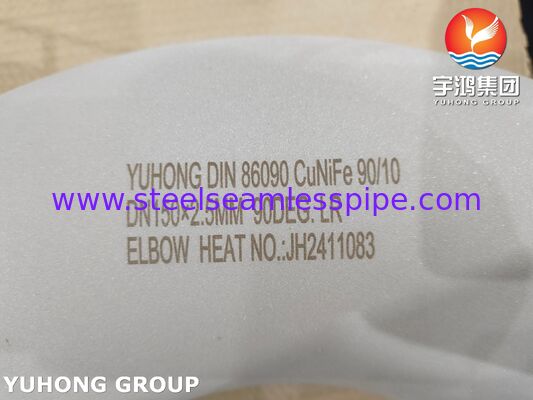

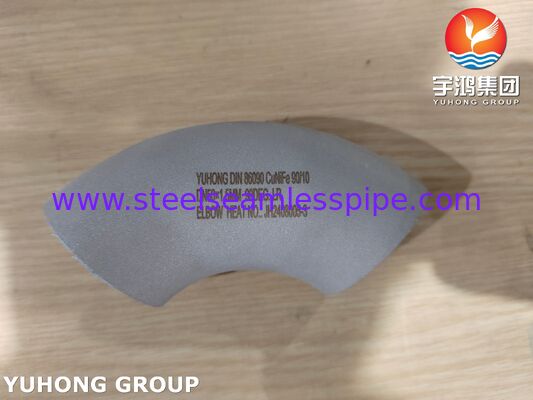

DIN 86090 CuNiFe 90-10 Elbow C70600 For Shipbuilding, Marine Engineering And Seawater Pipeline Systems

DIN 86090 CuNiFe 90-10 Elbow is specifically designed for shipbuilding, marine engineering, and seawater piping systems.

CuNi 90/10 is a recognized material of choice for marine engineering. In seawater, it forms a dense, stable protective oxide film, effectively resisting uniform corrosion, pitting corrosion, and crevice corrosion.

Therefore, shipbuilding and repair are the core and most widely used areas for this product. Many critical internal piping systems extensively utilize 90/10 copper-nickel alloy elbows.

Chemical Composition
Element	Composition (wt%)
Copper (Cu)	Remaining (approx. 87 – 89)
Nickel (Ni)	9.0 – 11.0
Iron (Fe)	1.5 – 1.8
Manganese (Mn)	0.5 – 1.0
Carbon (C)	≤ 0.05
Lead (Pb)	≤ 0.01
Sulfur (S)	≤ 0.005
Phosphorus (P)	≤ 0.02
Zinc (Zn)	≤ 0.3
Tin (Sn)	≤ 0.03

Mechanical Properties
Property	Value
Tensile Strength (Rm)	300 – 400 MPa (43.5 – 58 ksi)
Yield Strength (Rp0.2)	100 – 180 MPa (14.5 – 26 ksi)
Elongation (A5)	≥ 30%
Hardness (HB)	70 – 90

Physical Properties (for reference)
Property	Value
Density	8.90 g/cm³ (0.322 lb/in³)
Thermal Conductivity (20°C)	50 W/(m·K)
Modulus of Elasticity	138 GPa (20 × 10³ ksi)
Melting Range	1100 – 1145°C (2012 – 2093°F)

Application:

Seawater Cooling System: Main/auxiliary seawater piping used for cooling engines, generators, and other equipment.
Ballast Water Piping: Systems used to control a ship's draft and stability.
Offshore Oil and Gas Platforms: Systems used for seawater transport, firefighting, and process control on the platform.
Coastal Infrastructure: Intake and drainage systems for coastal power plants and desalination plants.
Power Plants (including nuclear power): Key piping components in condensers, heat exchangers, and coolers.
Heat Exchangers and Condensers: Used for connections between tube bundles and the shell.
