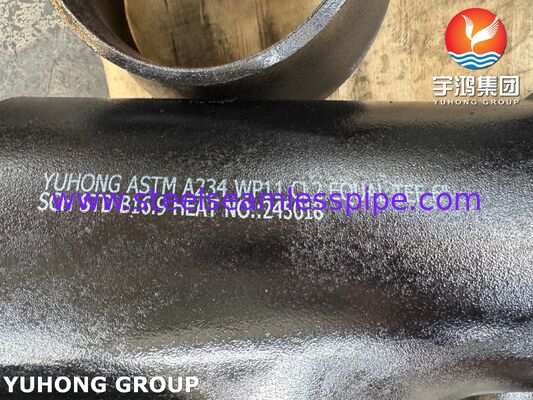

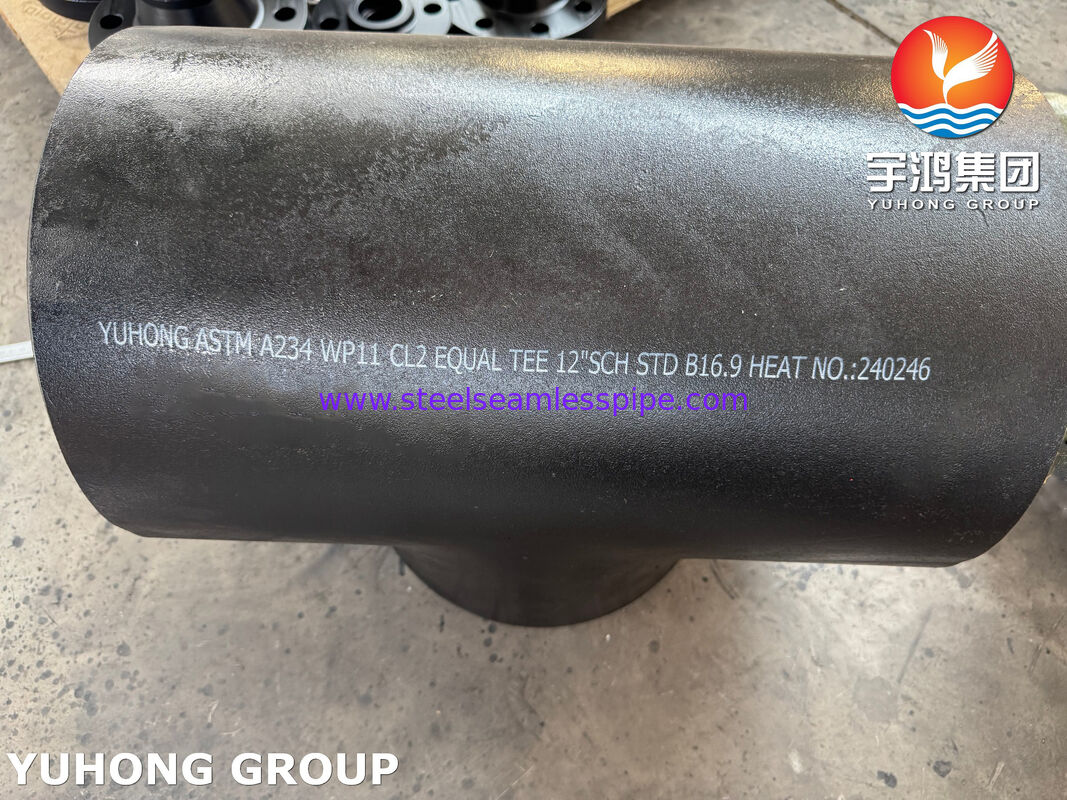

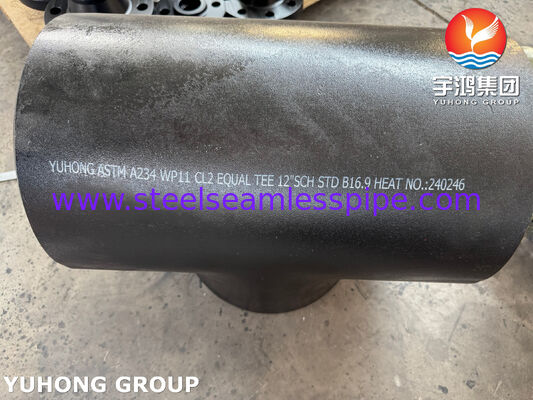

ASTM A234 WP11 CL2 Alloy Steel Equal Tee CrMo Alloy Steel Buttweld Pipe Fitting B16.9

ASME B16.9 ASTM A234 WP11-S CL2 Alloy Steel Equal Tee Buttweld Pipe Fittings​

The ASTM A234 WP11 CL2 Equal Tee is a CrMo alloy buttweld fitting designed for severe service. The CL2 designation ensures impact toughness (Charpy tested) and a strict normalized & tempered microstructure, making it superior to CL1 for critical applications involving thermal cycling or low ambient temperatures.

Manufacturing Process

• Forming Methods: These tees are produced by seamless (extruded from pipe) or welded (with filler metal, then heat treated) methods. Seamless is preferred for high-pressure systems.

• Hot Forming: The blank pipe is heated and shaped via hydraulic bulging or press forming. Branch outlets are drawn or extruded from the run.

• Post-Form Heat Treatment: Mandatory for CL2. After forming, the tee is normalized + tempered to restore microstructure and impact properties. No cold forming is allowed without subsequent heat treatment.

ASTM A234 WP11 Alloy Steel Equal Tee BW Pipe Fittings Chemical Requirements

ASTM A234 WP11 Alloy Steel Equal Tee BW Pipe Fittings Mechanical Properties

Applications

• Power Generation: Used in boiler systems, steam lines, and other high-temperature, high-pressure applications.
• Oil and Gas Industry: Used in pipelines for transporting oil, natural gas, and other hydrocarbons.
• Chemical Processing: Suitable for systems handling corrosive chemicals, where high strength and durability are required.
• Water Treatment and Distribution: Used in municipal water systems and wastewater treatment plants.
