ASTM B111 / ASME SB111 TP2 UNS C12200 DHP Copper Tube Seamless Heat Exchanger Tube

ASTM B111 / ASME SB111 TP2 UNS C12200 DHP Copper Tube Seamless Heat Exchanger Tube

  • ASTM B111 / ASME SB111 TP2 UNS C12200 DHP Copper Tube Seamless Heat Exchanger Tube
  • ASTM B111 / ASME SB111 TP2 UNS C12200 DHP Copper Tube Seamless Heat Exchanger Tube
  • ASTM B111 / ASME SB111 TP2 UNS C12200 DHP Copper Tube Seamless Heat Exchanger Tube
ASTM B111 / ASME SB111 TP2 UNS C12200 DHP Copper Tube Seamless Heat Exchanger Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B111 UNS C12200 Seamless Copper Tube
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS

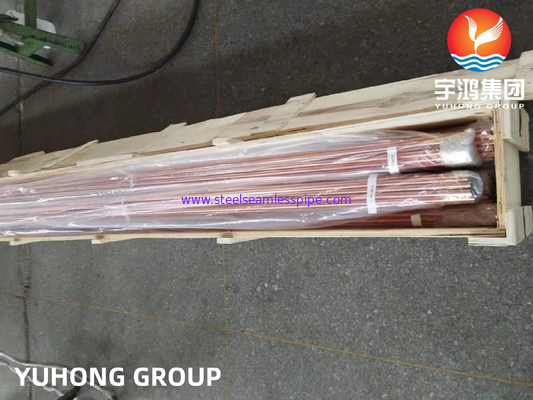

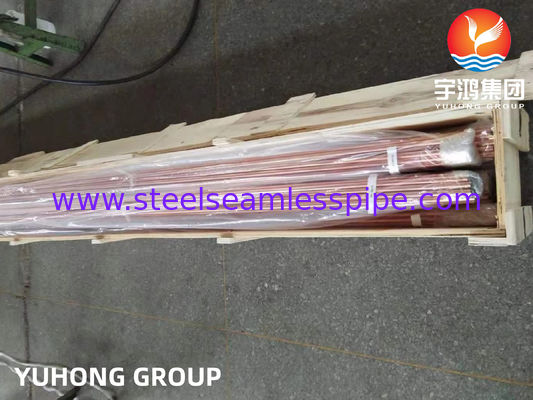

Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (331)
Stainless Steel Seamless Tube (322)
Duplex Stainless Steel Pipe (134)
Duplex Stainless Steel Tube (36)
Needle Tube (156)
Fin Tube (703)
Heat Exchanger (28)
Heat Exchanger Tube (458)
Heat Exchanger Tube Bundle (49)
Heat Exchanger Tubesheet (125)
Heat Exchanger Baffle (39)
Air Cooler (11)
Pressure Vessel (4)
Stainless Steel Welded Pipe (61)
Stainless Steel Welded Tube (132)
Nickel Alloy Pipe (273)
Nickel Alloy Tube (101)
Copper Alloy Tube (250)
Alloy Steel Tube (210)
Titanium Tube (20)
Bright Annealed Tube (172)
Boiler Tube (152)
Steel Fitting (860)
Steel Flange (659)
Others (404)
Cladding Parts (8)
Detailed Product Description
Product Name: Copper Alloy Seamless Tube Standard: ASTM B111, ASME SB111
Material: UNS C12200 OD: 1/4" , 3/8", 1/2", 5/8", 3/4", 1", 1.1/4", Etc.
WT: BWG 25, 22, 20, 18 ... 10 Length: Single Random, Double Random & Cut Length
Applications: Air Conditioning And Refrigeration; Gas, Heater, And Oil Burner Lines; Plumbing Pipe And Steam Tubes
Highlight:

b111 c12200 copper nickel pipe

,

astm b288 copper nickel pipe

,

astm copper nickel tube

ASTM B111 UNS C12200 / TP2 / Cu99.9 Copper Tube Heat Exchanger Tube





ASTM B111 UNS C12200 is a 99.9% copper seamless DHP (deoxidized high phosphorus) tube. Its red color and high thermal conductivity (~390 W/m·K) make it ideal for heat exchangers, condensers, and HVAC systems. It offers excellent ductility, weldability, and corrosion resistance in fresh water. However, it is not suitable for seawater or strong oxidizing acids.





Specifications of C11000 and C12200 Copper Tube

Grade USA U.K Germany Japan
China BG ASTM BS DIN JIS H
T 2 C11000 C101 / C102 E-Cu58 C1100
TP 2 C12200 C106 SF-Cu C1220



Chemical Compositions of ASTM B111 UNS C12200 Copper Tube

　UNS C12200 Elements
Cu P
Min (%) 99.9 0.015
Max (%) - 0.04




Type of product Grade(s) Technical requirements
according to
Copper tube/ pipe UNS C12200 ASTM B111, ASME SB111
ASTM B135, ASME SB135
ASTM B251, ASME SB251
BS EN 1057 or closer
Brass tube/pipe UNS C23000, UNS C26200 ...
UNS C44300, UNS C68700 ...
Cupronickel tube/pipe UNS C70600, UNS C71500
UNS C71640



Is This Tube Right for Your Project?

Use C12200 DHP if:

  • Fluid is fresh water, steam, compressed air, or mild non‑oxidizing chemical.

  • High heat transfer efficiency is critical.

  • Tube bending, flaring, or welding is required.

  • Budget is a priority (it is one of the least expensive copper alloys).





Applications

1. Air conditioning and refrigeration.

2. Gas, heater, and oil burner lines.

3. Plumbing pipe and steam tubes.

4. Brewery and distillery tubes.

5. Gasoline, hydraulic, and oil lines.

6. Rotating bands.
