ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube

ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube

  • ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube
  • ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube
  • ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube
  • ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube
ASTM B466 C70600 (CuNi 90/10) ASME B36.19 Copper Nickel Alloy Seamless Tube
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number: ASTM B466 C70600
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 25DAYS
Payment Terms: L/C, T/T
Supply Ability: ACCORDING TO CUSTOMER'S REQUEST
Contact Now
Detailed Product Description
Name: COPPER NICKEL ALLOY SEAMLESS PIPE Specification: ASTM B466
TEST: ET, HT, Flattening Test,Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination,Tension Testing. GRADE: UNS No. C10100, C10200, C10300, C10800, C12000, C12200, C14200, C19200, C23000, C28000, C44300, C44400, C44500, C60800, C61300, C61400, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, And C72200
High Light:

asme b36.19 copper nickel tube

,

c70600 copper nickel tube

,

astm b466 copper nickel pipe

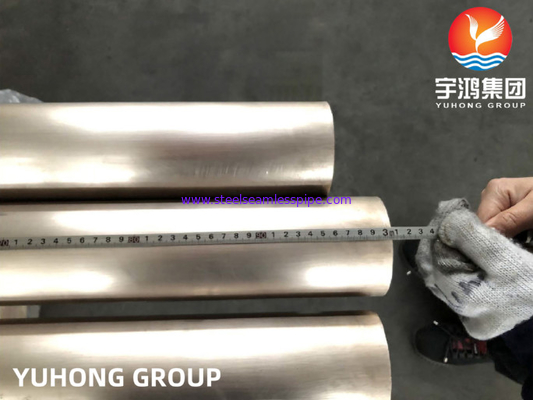

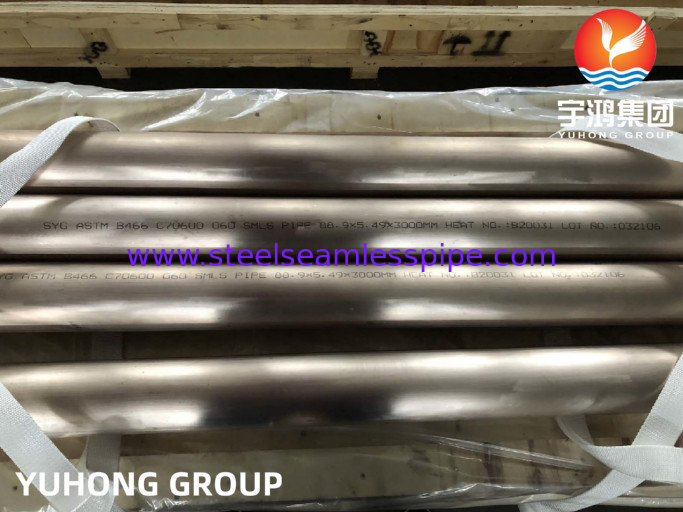

ASTM B466 C70600(CuNi 90/10) COPPER NICKEL ALLOY SEAMLESS PIPE SIZE: 88.9*5.49*3000mm, ASME B36. 19



C70600 Pipe also called CuNi 90/10 Pipe, UNS C70600 Pipe, ASTM B466 C70600 Copper Nickel Pipe or Cupro Nickel 90/10 Pipe is ASME B36. 19 M, DIN 86019, EEMUA 144 and MIL-T-16420 copper nickel pipe.C70600 Pipes can stand a test of time, even in the most hostile environments like salty water.The main, wrought copper-nickel alloys chosen for sea water service contain 10 or 30 percent nickel. They also have important additions of iron and manganese which are necessary to maintain good corrosion resistance.C70600 Copper Nickel 10% Alloy is used in applications where resistance to corrosion and stress cracking is important. C70600 Copper Nickel 10% Alloy is known for its moderate strength, weldability and formability.



Typical Uses for C706 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines



CONSUMER: Screw Lamp Bases



INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators



MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses



PLUMBING: Flanges



ASTM B466 C70600 Copper Nickel Seamless Pipes and Tubes Range

ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Specification and Grade MIL-T-16420K, ASME-SB-466, ASTM-B-466, MIL-15005, ASME-SB-111, ASTM-B-111, UNS C71500, UNS C70600, CU -NI- 90/10, CU -NI- 70/30, CN102, C70600, C70610, CW352H, DEF STAN 02-879 Annex C, DEF STAN 02-779, NES 779, BS2870, BS2874, ASTM B151, EN 12163, 2.0872 NF A51-115, CuNi10Fe1Mn,
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Application
  • Chillers
  • Heat Condensers & Exchangers
  • Power Plants
  • Refineries
  • Desalination Plants
  • Ship Building & Ship Repairs
  • Defence
  • High Capacity Power Plants
  • Distiller Tubes
  • Evaporators & Ferrules
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Type Seamless / Hot Rolled / Cold Drawn / Welded / ERW
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Outer Diameter Size 1/4 NB TO 12" NB
3 MM OD TO 114.3 MM OD
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Wall Thickness Schedule 10 to Schedule 160
ASTM B466 C70600 Copper Nickel Seamless Nickel Seamless Pipe & Tubes Length 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
ASTM B466 C70600 Copper Nickel Seamless Nickel Seamless Pipe & Tubes Pipe Ends Plain Ends / Beveled Ends
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Delivery Conditions As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Coating Electropolish, Mechanical Polish, Satin Finish, Passivated
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Other Testing NACE MRO175, Hardness Test, Flare, Hydrostatic Test, Eddy Current test, Grain Size Test, Eddy Current, Annealed, Tempered, Stress Relieved etc.
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM B466 C70600 Copper Nickel Seamless Pipe & Tubes Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC



Chemical Composition ASTM B466 Chemical Composition 90/10 Seamless Pipes and Tubes

The chemical composition of UNS C70600 copper nickel alloys is outlined in the following table.

Element Content (%)
Cu 88.7
Fe 1.3
Ni 10.0



Physical Properties ASTM B466 Chemical Composition 90/10 Seamless Pipes and Tubes

The following table shows the physical properties of UNS C70600 copper nickel alloys.

Properties Metric Imperial
Density 8.94 g/cm3 0.323 lb/in3
