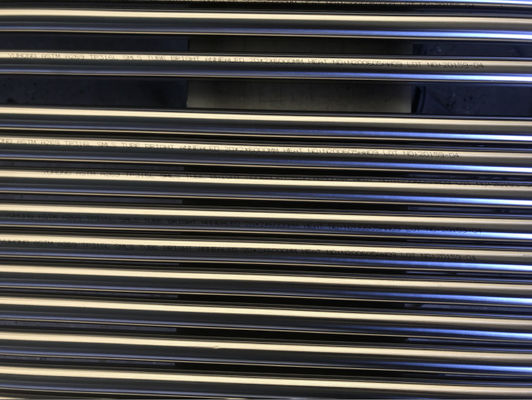

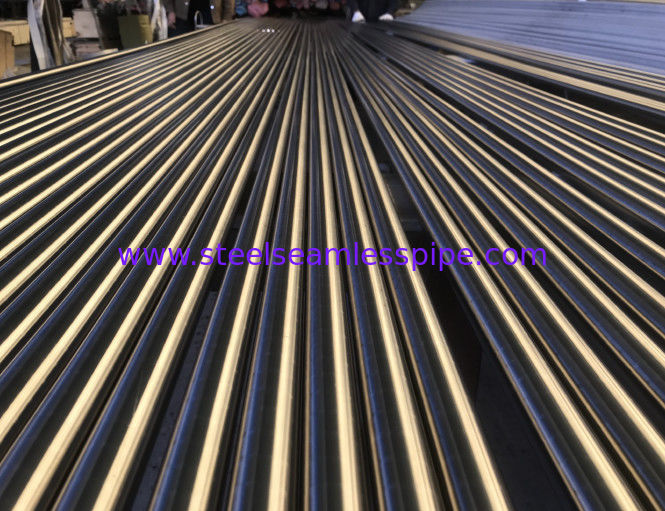

ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes

ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes

  • ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes
  • ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes
  • ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes
  • ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes
ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model Number: ASTM B338 / ASME SB338 GR. 5 UNS R56400
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: Ply-wooden Case / Iron Case
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Product Name: Titanium Alloy Tube Standard: ASTM B338 / ASME SB388 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862
Material: Grade 5 Titanium Type: Seamless / Welded
SEAMLESS O.D.: Seamless - 1/4"NB To 12"NB (Nominal Bore Size) WELDED O.D.: Welded / ERW- 1"NB To 16"NB (Nominal Bore Size)
W.T.: Schedule 10 To Schedule 160 Length: 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
End: Plain Ends / Beveled Ends Application: Condensers, Heat Exchangers, Etc.
High Light:

grade 5 unsr56400 titanium alloy tube

,

asme sb338 titanium alloy tube

,

astm titanium tubing

ASTM B338 / ASME SB338 Grade 5 / UNS R56400 Titanium Alloy Seamless Tubes and Pipes





What is Grade 5 Titanium Tube?

A titanium grade 5 seamless tube could be manufactured from hollow billet by any cold reducing process or cold drawing process. This process is one that will yield a seamless Titanium Gr 5 High Pressure Tube, thereby meeting the requirements prescribed. Alternatively, the Titanium Grade 5 Welded Tube is to be made from a flat rolled product by using an automatic arc welding process on the alloy.





Grade5, UNS R56400, 3.7164, Ti-6Al-4V is the most widely used α+β titanium alloy. It has excellent specific strength, excellent corrosion resistance and fracture toughness, as well as good welding processability and the ability to withstand extreme temperatures, and can be strengthened by heat treatment. The alloy was originally developed for the aerospace market and is widely used in aerospace structural components. Because of its very good biocompatibility, it has also been widely recognized in the medical industry.





Specification

STM B338-17e1 Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers

ASTM B338 Titanium Alloy Tubes Specification ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862
ASTM B338 Titanium Alloy Tubes Grades Grade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al
ASTM B338 Titanium Alloy Tubes Type Hot Rolled / Cold Drawn / Welded / ERW
ASTM B338 Titanium Alloy Tubes Outer Diameter Size Seamless - 1/4"NB to 12"NB (Nominal Bore Size)
Welded / ERW- 1"NB to 16"NB (Nominal Bore Size)
ASTM B338 Titanium Alloy Tubes Wall Thickness Schedule 10 to Schedule 160
ASTM B338 Titanium Alloy Tubes Length 5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
ASTM B338 Titanium Alloy Tubes Pipe Ends Plain Ends / Beveled Ends
ASTM B338 Titanium Alloy Tubes Delivery Conditions As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered
ASTM B338 Titanium Alloy Tubes Coating Electropolish, Mechanical Polish, Satin Finish, Passivated
ASTM B338 Titanium Alloy Tubes Other Testing ardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc.
ASTM B338 Titanium Alloy Tubes Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
ASTM B338 Titanium Alloy Tubes Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM B338 Titanium Alloy Tubes Packaging Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM B338 Titanium Alloy Tubes Shipment & Transportation By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
ASTM B338 Titanium Alloy Tubes Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC




Chemical Composition

Element Chemical Composition %
Grade 1 Grade 2 Grade 3 Grade 5 Grade 7 Grade 9 Grade 11 Grade 12 Grade 23
Nitrogen, max 0.03 0.03 0.05 0.05 0.03 0.03 0.03 0.03 0.03
Carbon, max 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08 0.08
Hydrogen, max 0.015 0.015 0.015 0.015 0.015 0.015 0.015 0.015 0.0125
Iron, max 0.20 0.30 0.30 0.40 0.30 0.25 0.20 0.30 0.25
Oxygen, max 0.18 0.25 0.35 0.20 0.25 0.15 0.18 0.25 0.13
Aluminum 5.5-6.75 2.5-3.5 5.5-6.5
Vanadium 3.5-4.5 2.0-3.0 3.5-4.5
Tin
Ruthenium
Palladium 0.12-0.25 0.12-0.25
Molybdenum 0.2-0.4
Chromium
Nickel 0.6-0.9
Niobium
Ziconium
Silicon
Residuals, max each 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1
Residuals, max total 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4
Titanium balance balance balance balance balance balance balance balance balance




Mechanical Properties

ASTM B338 Tensile Strength of Titanium Tubes

Grade Tensile Strength, min Yield Strength (0.2% Offset) Elongation 2 in. or 50 mm
  min max
Ksi (Mpa) Ksi (Mpa) Ksi (Mpa) gage length min %
Grade 1 35 (240) 25 (170) 45 (310) 24
Grade 2 50 (345) 40 (275) 65 (450) 20
Grade 3 65 (450) 55 (380) 80 (550) 18
Grade 5 130 (895) 120 (828) 10
Grade 7 50 (345) 40 (275) 65 (450) 20
Grade 9 90 (620) 70 (483) 45 15
Grade 11 35 (240) 25 (170) (310) 24
Grade 12 70 (483) 50 (345) 18
Grade 23 120 (828) 110 (759) 10




Titanium Grade 5 Tubing Standards ASTM B338 / ASME SB338
Titanium Grade 5 Seamless Tube Size 3.35 mm OD To 101.6 mm OD
Titanium Grade 5 Welded Tube Size 6.35 mm OD To 152 mm OD
Titanium Alloy Grade 5 Tubing Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
ASME SB338 Titanium Alloy Grade 5 Tube wall thickness 0.020" –0.220", (special wall thicknesses available)
Ti. Alloy Grade 5 Tubing Length Single Random, Double Random, Standard & Cut length Tube
ASME SB338 Titanium Alloy Grade 5 Tubing Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc
Types of Titanium UNS R56400 Tubing Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing
Titanium UNS R56400 Tube End Plain End, Beveled End, Treaded Tube
Marking All ASTM B338 Titanium Gr 5 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Application & uses of Titanium Grade 5 Tube Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube,
Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in ASTM B338 Titanium Gr 5 Capillary Tube & Other Odd Size
Gr 5 Alloy Heat Exchanger & Condenser Tube
Test Certificate Manufacturer Test Certificate
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection




We can also cut, thread, and groove Gr. 5 Alloy Tube to meet your specifications. Titanium Grade 5 Tube Dimension ANSI/ ASME B36.10, B36.19, B2.1





Titanium is an important structural metal developed in the 1950s, which widely used in various fields because of their high strength, good corrosion resistance, and high heat resistance. The first practical titanium alloy is Ti-6Al-4V alloy which successfully developed in 1954. Due to its heat resistance, strength, plasticity, toughness, formability, weldability, corrosion resistance and biocompatibility. It has become the flagship alloy in the titanium alloy industry, and the amount of this alloy used has accounted for 75% to 85% of all titanium alloys. Many other titanium alloys can be regarded as modifications of Ti-6Al-4V alloy.





Applications

  • The Titanium Alloy Tubes is used in the following applications:-
  • Chlorination systems
  • Flue gas scrubbers
  • Outlet ducting and stack liners for power plants, pulp and paper bleach plants, sulfur dioxide scrubbers, and weld overlay of less corrosion resistant metals
  • Acid production and pickling systems
  • Pharmaceutical industries use alloy fittings and tubing to avoid contamination caused by corrosion related failures
  • Cellophane manufacturing
  • Chlorination systems
  • Pesticide production
  • Incineration scrubber systems
  • Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing
  • Waste water processing
  • Pollution control stack liners, ducts, dampers, scrubbers, stack-gas reheaters, fans and fan housings
  • Flue gas desulfurization systems
  • Chemical processing components like heat exchangers, reaction vessels, evaporators, and transfer piping
  • Sour gas wells
  • Pulp and paper production
  • Waste treatment
  • Pharmaceutical and food processing equipment
