| Place of Origin: | China |
| Brand Name: | Atlas |
| Certification: | ISO9001:2015 |
| Model Number: | 0.3-18mm |
| Minimum Order Quantity: | 500KG |
|---|---|
| Packaging Details: | coil, spool with plate. |
| Delivery Time: | 1-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 500tons per month |
| Material: | 302/304/316 | Surface: | Bright |
|---|---|---|---|
| Coil Inner Diameter: | 250-1000mm | Standard: | JIS G. EN. ASTM. DIN. GB Etc |
| Packing: | Coil Or Special Packing With Plate | Status: | Soft , Semi-soft |
| High Light: | spring tempered stainless steel wire,wire for making springs |
||

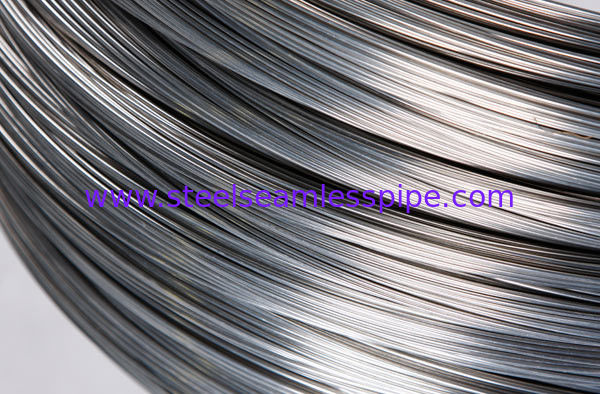

Stainless steel spring wire for fishing hook, fishing reel
ToponeWire has a long history of producing only the highest quality stainless steel wire for the spring industry. Our customers have come to rely on the engineering and metallurgical services provided by Sumiden Wire. When you need a reliable, domestic producer who can provide unsurpassed quality, service, and delivery, give us a call.
Toponewire has stocks of most types of spring wire, which is the raw material in the production of springs and spring solutions.
Types of spring wire
| Grade | Correspond standards | General chemical component(%) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| AISI | BS | DIN | JIS | C | Mn | Cr | Ni | Mo | |
| AISI302 | 302 | 302S26 | 1.4310 | SUS302 | 0.08 | 1.25 | 17.5 | 8.1 | - |
| AISI304 | 304 | 304S15 | 1.4301 | SUS304 | 0.07 | 1.25 | 18.1 | 8.6 | 0.1 |
| AISI316 | 316 | 316S42 | 1.4401 | SUS316 | 0.05 | 1.20 | 17.6 | 8.4 | 2.3 |
Tensile strength of spring stainless steel
| Diameter (mm) |
Classify | |
|---|---|---|
| WPA | WPB | |
| AISI302, 304, 316 | AISI302, 304 | |
| N/mm² | N/mm² | |
| 0.20 | 1650 ~ 1900 | 2150 ~ 2400 |
| 0.23 ~ 0.40 | 1600 ~ 1850 | 2050 ~ 2300 |
| 0.45 ~ 0.60 | 1600 ~ 1850 | 1950 ~ 2200 |
| 0.65 ~ 1.00 | 1530 ~ 1780 | 1850 ~ 2100 |
| 1.20 ~ 1.40 | 1450 ~ 1700 | 1750 ~ 2000 |
| 1.60 ~ 2.00 | 1400 ~ 1650 | 1650 ~ 1900 |
| 2.30 ~ 2.60 | 1320 ~ 1570 | 1550 ~ 1800 |
| 2.90 ~ 4.00 | 1230 ~ 1480 | 1450 ~ 1700 |
| 4.10 ~ 4.50 | 1100 ~ 1350 | 1350 ~ 1600 |
