Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | Atlas |
| Certification: | ISO9001 |
| Model Number: | 0.2-15mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Coil |
| Delivery Time: | 5-15Days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C, L/ |
| Supply Ability: | 500Ton/Month |
| Material: | Stainless Steel | Grade: | SUS201 301 302 304 304L 304N1 316 316L 631J10322B |
|---|---|---|---|
| Product Origin: | Ningbo China | Shipping Port: | NingBo |
| Lead Time: | 5-15 Days | Surface: | Soap Coated |
| High Light: | ss spring wire,wire for making springs |
||

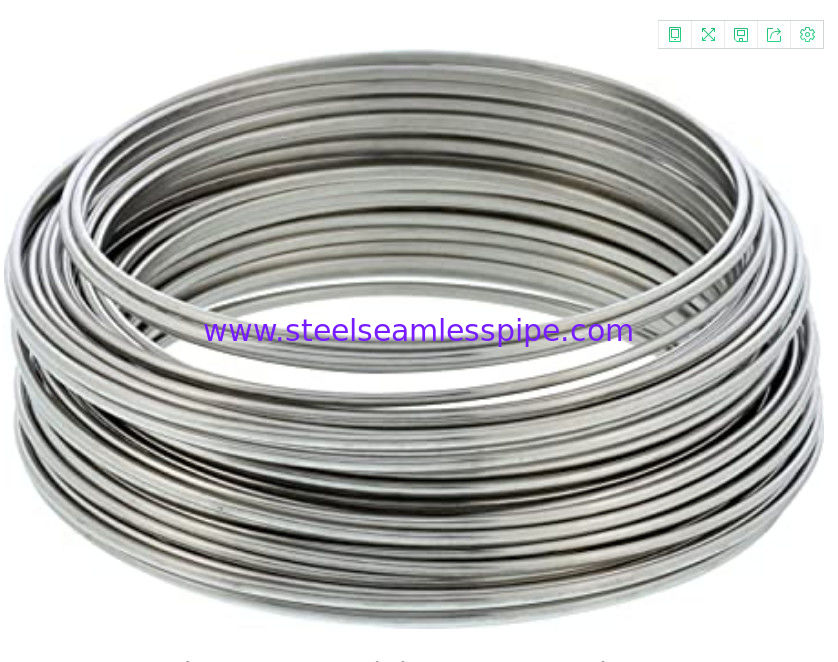

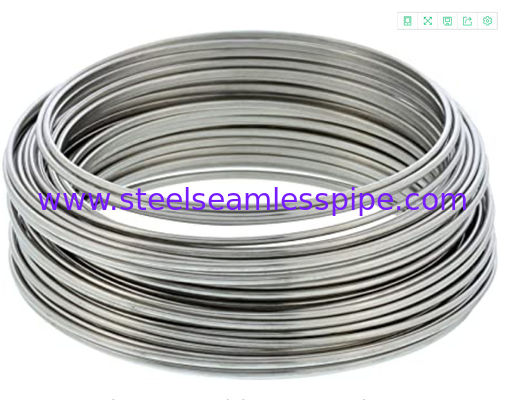

316 Stainless Steel spring wire inbright surface S-Co soap coated
| Name | 316 Stainless Steel spring wire inbright surface S-Co soap coated |
| 1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597,1.4541, etc | |
| Standard | ASTM, EN,DIN,JIS |
| Diameter | 0.05-15mm |
| Surface | bright, cloudy,plain,black |
| Advantage | A nice surface,good elasticity high plasticity,high temperature resistance. B.heat-resisting,antioxidant,corrosion resisting C with good mechanical property and high anti-elasticity-letdown property |
| MOQ | 1 Metric ton |
| Price terms | CIF or FOB |
| Payment terms | L/C or T/T |
| supply ability | 25 Metric tons per day |
| Delivery Detail | 7-30 days,according to the quantity. |
| Packaging Detail | A 0.7mm-1.2mm stainless steel auto welding wires usually use DIN270 plastic spool(drum) packing ; net weight of each spool is 15 kg.outside of the spool using PVC shrink heat film warping, each spool put into one paper case. B 0.8-4.2mm stainless steel welding electrodes usually use plastic drum packing.net weight of each drum is 5kg C 0.6-12mm stainless steel wire can use coil packing.inner diameter is:400mm, 500mm, 600mm, 650mm. per package weight is 30-80 kg wrap films inside and outside. |
(JIS G431 4 standard)
|
Wire Diameter
(MM)
|
Tolerance
(MM)
|
Ovality
(MM)
|
Tensile strength
(N/MM^2)
|
||
|
SUS302-WPB
SUS304-WPB
SUS304N1-WPB
130M-WPB
|
SUS302-WPA
SUS304-WPA
SUS316-WPA
|
SUS631J1-WPC | |||
| 0.12 | +0.000-0.005 | Max:0.005 | 2150~2400 | 1650~1900 | 1950~2200 |
| 0.15 | |||||
| 0.18 | |||||
| 0.20 | |||||
| 0.23 | Max:0.006 | 2050~2300 | 1600~1850 | 1930~2180 | |
| 0.25 | |||||
| 0.28 | |||||
| 0.30 | |||||
| 0.35 | |||||
| 0.40 | |||||
| 0.45 | 1950~2200 | 1850~2100 | |||
| 0.50 | -0.000-0.007 | ||||
| 0.55 | |||||
| 0.60 | |||||
| 0.70 | 1850~2100 | 1530~1780 | 1800~2050 | ||
| 0.80 | |||||
| 0.90 | |||||
| 1.00 | +0.000-0.010 | Max:0.010 | |||
| 1.20 | 1750~2000 | 1450~1650 | 1700~1950 | ||
| 1.40 | |||||
| 1.50 | |||||
| 1.60 | +0.020-0.020 | Max:0.020 | 1650~1900 | 1400~1650 | 1600~1850 |
| 1.80 | |||||
| 2.00 | |||||
| 2.30 | 1550~1800 | 1320~1570 | 1500~1750 | ||
| 2.50 | |||||
| 3.00 | 1450~1700 | 1320~1480 | 1400~1650 | ||
| 3.10 | +0.025-0.025 | Max:0.025 | |||
| 3.50 | |||||
| 4.00 | |||||
| 4.50 | 1320~1600 | 1100~1350 | 1300~1550 | ||
.
| Standard | Chemical Composition(%) | ||||||||||
| JIS G431 4 | GB/T 24588 | EN10270-3 | C | Si | Mn | P | S | Ni | Cr | Mo | others |
| SUS201 | 12Cr7Mn6Ni5N | 1.4372 | ≤0.15 | ≤1 | 5.5~7.5 | ≤0.060 | ≤0.03 | ≤3.5 | 16~18 | -- | N≤0.025 |
| SUS301 | 12Cr17Ni7 | 1.4319 | ≤0.15 | ≤1 | ≤2 | ≤0.020 | ≤0.03 | ≤6.0 | 16~18 | -- | -- |
| SUS302 | 12Cr18Ni9 | 1.4310 | ≤0.15 | ≤1 | ≤2 | ≤0.045 | ≤0.03 | 8.0 | 17~19 | -- | -- |
| SUS304 | 06Cr19Ni10 | 1.4301 | ≤0.08 | ≤1 | ≤2 | ≤0.045 | ≤0.03 | 8.0 | 18~20 | -- | -- |
| SUS304L | 022Cr19Ni10 | 1.4306 | ≤0.03 | ≤1 | ≤2 | ≤0.045 | ≤0.03 | 9.0 | 18~20 | -- | -- |
| SUS304N | 06Cr19Ni10N | 1.4315 | ≤0.08 | ≤1 | ≤2 | ≤0.045 | ≤0.03 | 7.0 | 18~20 | -- | N:0.1-0.25 |
| SUS316 | 06Cr17Ni12Mo2 | 1.4401 | ≤0.08 | ≤1 | ≤2 | ≤0.045 | ≤0.03 | 10.0 | 16~18 | 2~3 | -- |
| SUS316L | 022Cr17Ni12Mo2 | 1.4404 | ≤0.03 | ≤1 | ≤2 | ≤0.045 | ≤0.03 | 12.0 | 16~18 | 2~3 | -- |
| SUS631J1 | 07Cr17Ni7Al | - | ≤0.09 | ≤1 | ≤1 | ≤0.040 | ≤0.03 | 7~8.5 | 16~18 | -- | AL:0.75~1.50 |
Packing&Delivery
Atlas metal featured by stable performance have been favored by users in China and professional clients in America,Europe and Asia. What you are satisfied with is our permanent pursuit of quality and quick delivery. we will continue controlling our product quality and try hard to be a leader of the stainless steel wire industry.
Certifications
Application
From a friendly greeting to an on-time delivery,our support staff and warehouse operators are dedicated to providing the highest level of service to our customers.
