Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | atlas |
| Certification: | ISO9001:2015 |
| Model Number: | 0.2-15mm |
| Minimum Order Quantity: | 500KG |
|---|---|
| Packaging Details: | coil or spool with plate. |
| Delivery Time: | 1-15 days |
| Payment Terms: | D/P, Western Union, L/C, T/T |
| Supply Ability: | >500 Tons Per Month | Material: | 304/316/316L |
|---|---|---|---|
| Diameter: | 0.8-15mm | Packing: | By Customer Request |
| Standard: | JIS G. EN. ASTM. DIN. GB Etc | Surface: | Bright |
| High Light: | stainless steel bendable wire,bending ss wire |
||

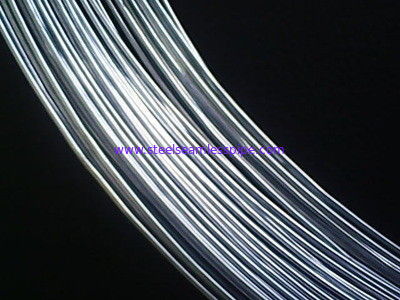

Good Bending High Luster Stainless Steel Wire 304 316 316L
| Product Name |
Good Bending High Luster Stainless Steel Wire 304 316 316L |
| Surface | Bright or Matt |
| Standard | AISI DIN GB JIS |
| Diameter | 0.8-15mm |
APPLICATIONS
Stainless steel wire is mainly used in below fields:
1) Electric power, petroleum, boiler, high or low temperature resistant, corrosion resistant.
2) Tableware, cabinet, cutting tool, boiler, auto part.
3) Medical instruments, building materials, food industry.
4) Sea, chemical industry and machine manufacture.Or they can be made upon negotiation.
Mechanical properties
|
|
TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
|
|
|
|
FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
