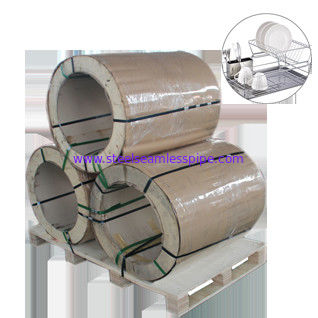

Automobile Mesh Weaving Wire Stainless Steel Bending Ss Wire Multi Grade

Product Details:

Place of Origin:	China
Brand Name:	atlas
Certification:	ISO9001:2015
Model Number:	0.2-15mm

Payment & Shipping Terms:

Minimum Order Quantity:	500KG
Packaging Details:	coil or spool with plate.
Delivery Time:	1-15 days
Payment Terms:	D/P, Western Union, L/C, T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (242)

Stainless Steel Seamless Tube (237)

Finned Tube (453)

Heat Exchanger Tube (162)

Heat Exchanger Parts (169)

Stainless Steel Welded Pipe (50)

Stainless Steel Welded Tube (98)

Duplex Stainless Steel Pipe (135)

Alloy Steel Tube (129)

Bright Annealed Tube (152)

Copper Alloy Tube (169)

Nickel Alloy Pipe (309)

Needle Tube (26)

U Bend Tube (189)

Boiler Tube (110)

Steel Fitting (664)

Steel Flange (477)

Steel Valves (12)

Precision Steel Strip (29)

Alloy Wires (271)

Others (61)

Detailed Product Description

Supply Ability:	>500 Tons Per Month	Material:	304/316/304L
Diameter:	0.2-15mm	Packing:	By Customer Request
Standard:	JIS G. EN. ASTM. DIN. GB Etc	Surface:	Bright
High Light:	ss forming wire , bending ss wire

Stainless steel forming wire for customized wire forms

Products:

1) Grade: SS201, 202, 304(L), 308(L),309(L),310(S),316(L),347 etc.
2) Standard: ASTM, DIN, GB, JIS, SUS
3) Diameter: 0.8mm-18.0mm
4) Certification: ISO9001: 2015
5) Coil weight: 20KG, 50KG, 100KG, etc.
6) Application: Mesh weaving, Soft pipe, Isolation, Shipbuilding, Automobile, Chemical industry

Toponewire has focus on stainless steel wire for more than 26 years, we holding more than 1000tons stainless steel wire in stock, samples can be arranged by you request.

Mechanical properties

DIAMETER(MM)	TENSILE STRENGTH(MPA)			ELONGATION(%)
DIAMETER(MM)	SOFT-ANNEALED	SEMI-HARD	HARD	FOR SOFT-ANNEALED WIRE ONLY
0.20~0.30	640~980	_	_	≥20
0.30~0.60	590~930	_	_	≥20
0.60~1.00	540~880	830~1180	1180~1520	≥25
1.00~3.00	490~830	780~1130	1130~1470	≥25
3.00~6.00	490~830	730~1080	1080~1420	≥30
6.00~14.00	490~790	730~1030	_	≥30

Physical Properties

Diameter Tolerance & Oval Tolerance

Mechanical Properties

(mm)Dia.	(mm)Dia.Tolerance	Oval.Tolerance
0.030-0.050	±0.003	≤0.003
0.050-0.080	±0.004	≤0.004
0.080-0.10	±0.005	≤0.005
0.10-0.16	±0.007	≤0.007
0.16-0.28	±0.010	≤0.010
0.28-0.50	±0.013	≤0.013
0.50-0.90	±0.015	≤0.015
0.90-1.60	±0.02	≤0.02
1.60-2.80	±0.03	≤0.03
2.80-5.00	±0.04	≤0.04
5.00-9.00	±0.05	≤0.05
9.00-12.00	±0.06	≤0.06
12.00-14.00	±0.07	≤0.07

Type	(mm)Dia	(N/mm2)Tensilestrength	(%)Elongation
SUS304.SUS304L	0.02-0.05	880-1130	≥10
SUS316.SUS316L	0.02-0.05	650-900	≥8
SUS304.SUS304L SUS309S SUS310S SUS316.SUS316L SUS321	0.05-0.16	650-900	≥20
	0.16-0.50	610-860	≥20
	0.50-1.60	570-820	≥30
	1.60-5.00	520-770
	5.00-14.00	500-750
SUS304J3	0.05-0.16	620-870	≥20
	0.16-0.50	580-830	≥20
	0.50-1.60	540-790	≥30
	1.60-5.00	500-750
	5.00-14.00	490-740

Chemical Composition

AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=<0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	9.00~13.50	18.00~20.00	-
316	=<0.045	=<1.00	=<2.00	=<0.045	=<0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=<0.12	=<0.75	=<1.00	=<0.040	=<0.030	=<0.60	16.00~18.00	-
430A	=<0.06	=<0.50	=<0.50	=<0.030	=<0.50	=<0.25	14.00~17.00	-

How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:

1	Your wire application	Required
2	Wire Grade	Required
7	Wire Shape and Size	Required
3	Wire Surface Finish	Required
4	Wire Tensile Strength Level	Required
5	Quantity/Weight	Required
6	Wire Manufacturing Standards	Required
8	Wire Tolerence	Prefered
9	Delivery Time	Prefered
10	Wire Package	Optional
