Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | atlas |
| Certification: | ISO9001:2015 |
| Model Number: | 0.2-15mm |
| Minimum Order Quantity: | 500KG |
|---|---|
| Packaging Details: | coil or spool with plate. |
| Delivery Time: | 1-15 days |
| Payment Terms: | D/P, Western Union, L/C, T/T |
| Supply Ability: | >500 Tons Per Month | Material: | 200/300/400 |
|---|---|---|---|
| Diameter: | 0.2-15mm | Packing: | By Customer Request |
| Standard: | JIS G. EN. ASTM. DIN. GB Etc | Surface: | Bright |
| Use: | Kitchen Basket | Ability: | Eletropolishing |
| High Light: | ss forming wire,bending ss wire |
||

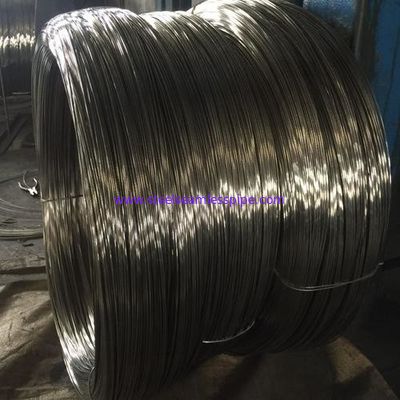

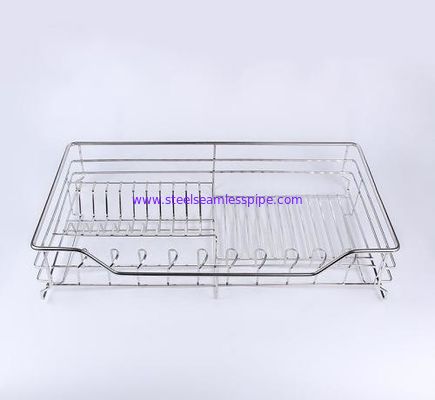

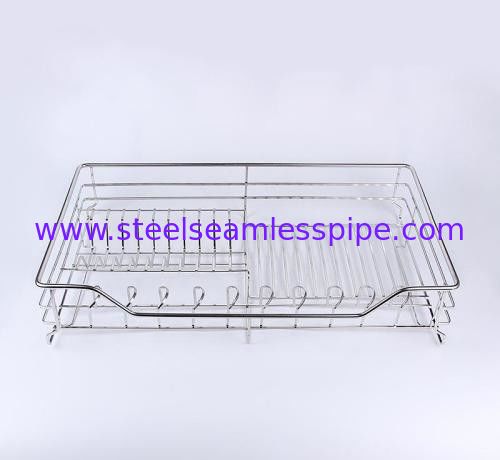

Bright Stainless Steel Forming Wire For Kitchen items Kitchen baket houseware
Products:
1) Grade: SS201, 202, 304(L), 308(L),309(L),310(S),316(L),347 etc.
2) Standard: ASTM, DIN, GB, JIS, SUS
3) Diameter: 0.8mm-18.0mm
4) Certification: ISO9001: 2015
5) Coil weight: 20KG, 50KG, 100KG, etc.
6) Application: kitchen basket, BBQ grill, Mesh weaving, Soft pipe, Isolation, Shipbuilding, Automobile, Chemical industry
Toponewire has focus on stainless steel wire for more than 26 years, we holding more than 1000tons stainless steel wire in stock, samples can be arranged by you request.
Mechanical properties
| TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
| | | FOR SOFT-ANNEALED WIRE ONLY | |
0.20~0.30 | 640~980 | _ | _ | ≥20 |
0.30~0.60 | 590~930 | _ | _ | ≥20 |
0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
<
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | |||||
| Type | (mm)Dia | (N/mm2)Tensilestrength | (%)Elongation | |||
| SUS304.SUS304L | 0.02-0.05 | 880-1130 | ≥10 | |||
| (mm)Dia. | (mm)Dia.Tolerance | Oval.Tolerance | SUS316.SUS316L | 0.02-0.05 | 650-900 | ≥8 |
| 0.030-0.050 | ±0.003 | ≤0.003 | SUS304.SUS304L | 0.05-0.16 | 650-900 | ≥20 |
| 0.050-0.080 | ±0.004 | ≤0.004 | SUS309S | 0.16-0.50 | 610-860 | |
| 0.080-0.10 | ±0.005 | ≤0.005 | SUS310S | 0.50-1.60 | 570-820 | ≥30 |
| 0.10-0.16 | ±0.007 | ≤0.007 | SUS316.SUS316L | 1.60-5.00 | 520-770 | |
| 0.16-0.28 | ±0.010 | ≤0.010 | SUS321 | 5.00-14.00 | 500-750 | |
| 0.28-0.50 | ±0.013 | ≤0.013 | SUS304J3 | 0.05-0.16 | 620-870 | ≥20 |
| 0.50-0.90 | ±0.015 | ≤0.015 | 0.16-0.50 | 580-830 | ||
| 0.90-1.60 | ±0.02 | ≤0.02 | 0.50-1.60 | 540-790 | ≥30 | |
| 1.60-2.80 | ±0.03 | ≤0.03 | 1.60-5.00 | 500-750 | ||
| 2.80-5.00 | ±0.04 | ≤0.04 | 5.00-14.00 | 490-740 | ||
| 5.00-9.00 | ±0.05 | ≤0.05 | ||||
| 9.00-12.00 | ±0.06 | ≤0.06 | ||||
| 12.00-14.00 | ±0.07 | ≤0.07 | ||||
Chemical Composition
AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo |
304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel Forming Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
Contact Person: Mr. Jikin Cai
Tel: +86-13819835483
Fax: 0086-574-88017980
