Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | atlas |
Certification: | ISO9001:2015 |
Model Number: | 0.2-15mm |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | coil or spool with plate. |
Delivery Time: | 1-15 days |
Payment Terms: | D/P, Western Union, L/C, T/T |
Supply Ability: | >500 Tons Per Month | Material: | AISI 304 |
---|---|---|---|
Diameter: | 0.8-15mm | Packing: | By Customer Request |
Standard: | JIS G. EN. ASTM. DIN. GB Etc | Surface: | Matt Or Bright |
High Light: | ss forming wire,stainless steel bendable wire |

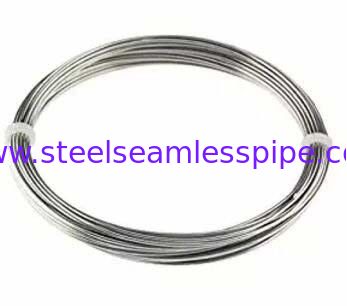

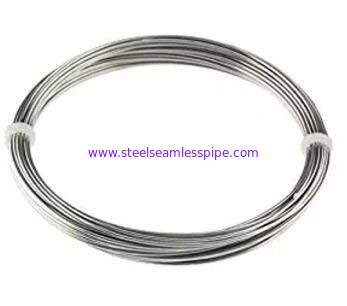

AISI 304 stainless steel welding mesh wire bright surface wire for cages agriculture
Backed by rich industry experience, we are also matching up with the demands of Soft Stainless Steel Bending Wire. Developed by making use of high-grade steel and basic components, these wires are demanded in the market. To ensure flawlessness, our offered wires are thoroughly tested on various parameters.
Features:
High flexibility
Longer service life
Corrosion resistant finish
Size | 1mm to 9. mm (0.040 to 0.350) |
Grades | 304, 304L, 316, 316L, 316Ti, 201, 204Q and others |
Finish | Bright, decreased finish suitable for Electro polishing |
Temper | Soft, 1/4 Hard. |
Packing | Coils of 100-500kgs, 2-3 Coils on carriers, cheese Coils of 500-800kgs |
Features of forming wire
Forming wire standard
(N/㎟)
Diameter(mm) | Permissible tolerance(mm) | Tensile strength | ||
---|---|---|---|---|
SOFT | 1/4H | 3/4H | ||
1.4 | ±0.01 | 570 ~ 770 | 900 ~ 1,130 | 1,450 ~ 1,700 |
1.6 | ±0.01 | 570 ~ 770 | 900 ~ 1,130 | 1,450 ~ 1,700 |
2.0 | ±0.015 | 550 ~ 750 | 900 ~ 1,130 | 1,400 ~ 1,650 |
2.3 | ±0.015 | 550 ~ 750 | 900 ~ 1,130 | 1,350 ~ 1,600 |
2.5 | ±0.02 | 550 ~ 750 | 900 ~ 1,130 | 1,350 ~ 1,600 |
2.8 | ±0.02 | 550 ~ 750 | 900 ~ 1,130 | 1,350 ~ 1,600 |
3.0 | ±0.02 | 520 ~ 720 | 850 ~ 1,080 | 1,300 ~ 1,550 |
3.2 | ±0.02 | 520 ~ 720 | 850 ~ 1,080 | 1,250 ~ 1,500 |
3.5 | ±0.02 | 520 ~ 720 | 850 ~ 1,080 | - |
4.0 | ±0.03 | 520 ~ 720 | 850 ~ 1,080 | - |
4.5 | ±0.03 | 520 ~ 720 | 850 ~ 1,080 | - |
5.0 | ±0.03 | 520 ~ 720 | 850 ~ 1,080 | - |
6.0 | ±0.03 | 500 ~ 700 | 800 ~ 1,030 | - |
7.0 | ±0.03 | 500 ~ 700 | 800 ~ 1,030 | - |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: We holding more than 1000tons in stock, generally it is 2-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have any further question, feel free to comments.
