Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | ATLAS |
| Certification: | ISO9001:2015 |
| Model Number: | 0.8-15mm |
| Minimum Order Quantity: | 500KG |
|---|---|

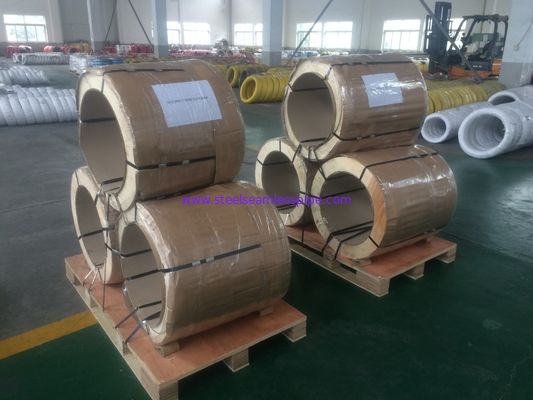

| Packaging Details: | coil or spool with plate. |
| Delivery Time: | 1-15 days |
| Payment Terms: | D/P, Western Union, L/C, T/T |
| Supply Ability: | >500 Tons Per Month | Material: | 200/300/400 |
|---|---|---|---|
| Diameter: | 0.8-15mm | Packing: | By Customer Request |
| Standard: | JIS G. EN. ASTM. DIN. GB Etc | Surface: | Bright |
| High Light: | high temperature resistance wire,epq stainless steel wire |
||
0.8mm-15mm stainless steel wire/EPQ wire/ss kitchen wire super bright
| Product Name | 0.8mm-15mm stainless steel wire/EPQ wire/ss kitchen wire super bright |
| Surface | Bright |
| Standard | AISI DIN GB JIS |
| Treatment | cold-drawn, soft annealed |
| Diameter | 0.8-15mm |
1) We are a professional stainless steel wire factory for over 20 years;
2) Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable.
3) We promise, if the chemical elements isn't up to the national standard or as said in the contract, we'll refund 100% payment.
Mechanical properties
| TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
| | | FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel EPQ Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
