Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | atlas |
| Certification: | ISO9001:2015 |
| Model Number: | 0.2-15mm |
| Minimum Order Quantity: | 500KG |
|---|---|

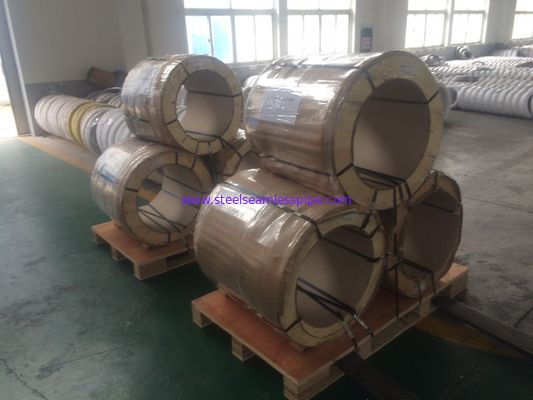

| Packaging Details: | coil or spool with plate. |
| Delivery Time: | 1-15 days |
| Payment Terms: | D/P, Western Union, L/C, T/T |
| Supply Ability: | >500 Tons Per Month | Material: | 1.4301 1.4410 1.4401 |
|---|---|---|---|
| Diameter: | 0.2-15mm | Packing: | By Customer Request |
| Standard: | JIS G. EN. ASTM. DIN. GB Etc | Surface: | Bright |
| High Light: | high temperature resistance wire,epq stainless steel wire |
||
1.4301 1.4410 1.4401 stainless steel forming wire/ EPQ wire
| Material | 1.4301 1.4410 1.4401 |
| Standard | AISI, ASTM, DIN, GB, JIS, SUS |
| Diameter | 0.8mm-18.0mm |
| Surface finish | Electrolysis bright, Bright, Polish, Matt. |
| Certification | ISO9001: 2015 |
| Packing | Woven bag, coil, others are also available according to client' requirement. |
| Application | Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire, conveyors, jewelry, springs, brush welding, electrical, wire line, craft and many more applications. |
Topone Advantages
1. ISO9001:2015; RoHS Certificate
2. ASTM,JIS,EN Manufacturing Standards
3. Dia 0.30mm-18.0mm;Precision Size
4. Low MOQ;Fast Divery; Large Stocking
5. 20+ Years Experience;Skilled Workers; Vast Succesful Cases
6. Modern Facility;Advanced Equipment;Rapid Transportaiton
Topone 0.80mm-15.0mm Stainless Steel EPQWire
As a leading manufacturer of stainless steel wires, we have focus on stainless steel wire for more than 25years, we have been working with many famous companies in Europe, North America and Asian.We are in a good position not only to supply you high quality stainless steel wire, but also the excellent sales service. Well-trained engineers and sales will offer you any technical support.Feel free to contact us if you have any question or inquiry, our sales and engineers are willing to help you.
Mechanical properties
|
|
TENSILE STRENGTH(MPA) | ELONGATION(%) | ||
|
|
|
|
FOR SOFT-ANNEALED WIRE ONLY | |
| 0.20~0.30 | 640~980 | _ | _ | ≥20 |
| 0.30~0.60 | 590~930 | _ | _ | ≥20 |
| 0.60~1.00 | 540~880 | 830~1180 | 1180~1520 | ≥25 |
| 1.00~3.00 | 490~830 | 780~1130 | 1130~1470 | ≥25 |
| 3.00~6.00 | 490~830 | 730~1080 | 1080~1420 | ≥30 |
| 6.00~14.00 | 490~790 | 730~1030 | _ | ≥30 |
Physical Properties
| Diameter Tolerance & Oval Tolerance | Mechanical Properties | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Chemical Composition
| AISI Grade | Chemical Composition(%) | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | =<0.045 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
| 430 | =<0.12 | =<0.75 | =<1.00 | =<0.040 | =<0.030 | =<0.60 | 16.00~18.00 | - |
| 430A | =<0.06 | =<0.50 | =<0.50 | =<0.030 | =<0.50 | =<0.25 | 14.00~17.00 | - |
How to Enquiry Topone Stainless Steel EPQ Wire in Efficiency
In order to quote you asap with right material in good price,we need you quote us with 10 details below .If you only know parts of them or only the wire application, you can talk with us online for help:
|
