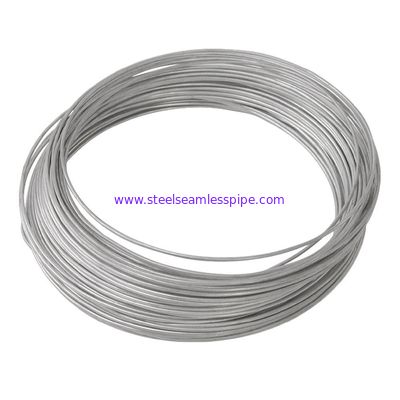

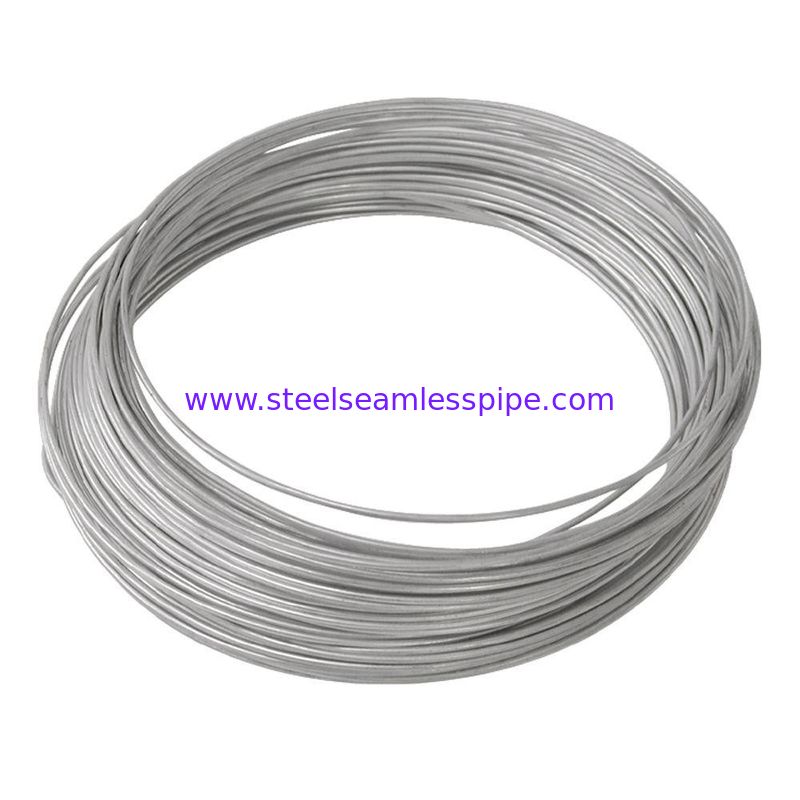

Stainless steel grade 430 ASTM A580 Bright soft wire
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid. This product is often used for fasteners as well as lashing wire.
Can be supplied in bright and soap coated finish.
Carbon: 0.12 max
Manganese: 1.00 max
Silicon: 1.00 max
Chromium: 16.00-18.00
Nickel: 0.50 max
Molybdenum: 0.50 max
Phosphorus: 0.040 max
Sulfur: 0.030 max
Copper: 0.50 max
Iron: Balance
ELECTRICAL
Specific Resistance (Ω–CM/F)
360.000
Specific Resistivity (μ Ω–cm2/cm)
59.85
Commercial Resistance Tolerance (On Sizes below .020)
3.00%
Temperature Coefficient of Resistance (ohms/ohm/Deg. C {0 to 100°C})
0
Thermal EMF vs Copper
-.014
Density (gm/cm3)
Density(lbs/in3)
0.27600
Youngs Modulus (* 106 PSI)
0
Specific Heat at 20 Deg C (cals/gm)
0.110
Thermal Conductivity (watts/cm/Deg. C)
2.690000
Coefficient of Linear Expansion (X 10-6in/in Deg. C) Deg. C
5.0
Melting Point °C
1427.00
Melting Point °F
2600.00
FEDERAL SPECS STANDARDS & TEST
QQ-S-763
CAPABILITIES
Wire
YES
Ribbon
YES
Square
YES
Insulated
YES
Plated
YES
ELEMENT
Cr:
MIN
14.0000
NOMINAL
0.0000
MAX
18.0000
ELEMENT
Fe:
MIN
80.0000
NOMINAL
0.0000
MAX
86.0000
ELEMENT
Mn:
MIN
0.0000
NOMINAL
0.0000
MAX
1.0000
ELEMENT
Si:
MIN
0.0000
NOMINAL
0.0000
MAX
1.0000
UTS Hard:
160000
UTS Stress Relieved:
0
UTS Annealed:
70000
YTS Tensile - Hard:
140000
YTS Tensile - Stress Relieved:
0
YTs Tensile - Annealed
35000
Note: All values may vary dependent on specific design and usage
MISCELLANEOUSMagnetic
None
Operating Temp °C
0.00
Operating Temp °F
0.00
Forms
Continuous Coils
Cut to lengths
Precision cutting
Heat Treatment
Alloy 430 is non-heat treatable
Welding
For best results refer to: SSINA’s “Welding of Stainless Steels and Other Joining Methods”
