Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK. |
| Model Number: | A182 F316L |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T , L/C AT SIGHT |
| Supply Ability: | 10000 pcs per month |

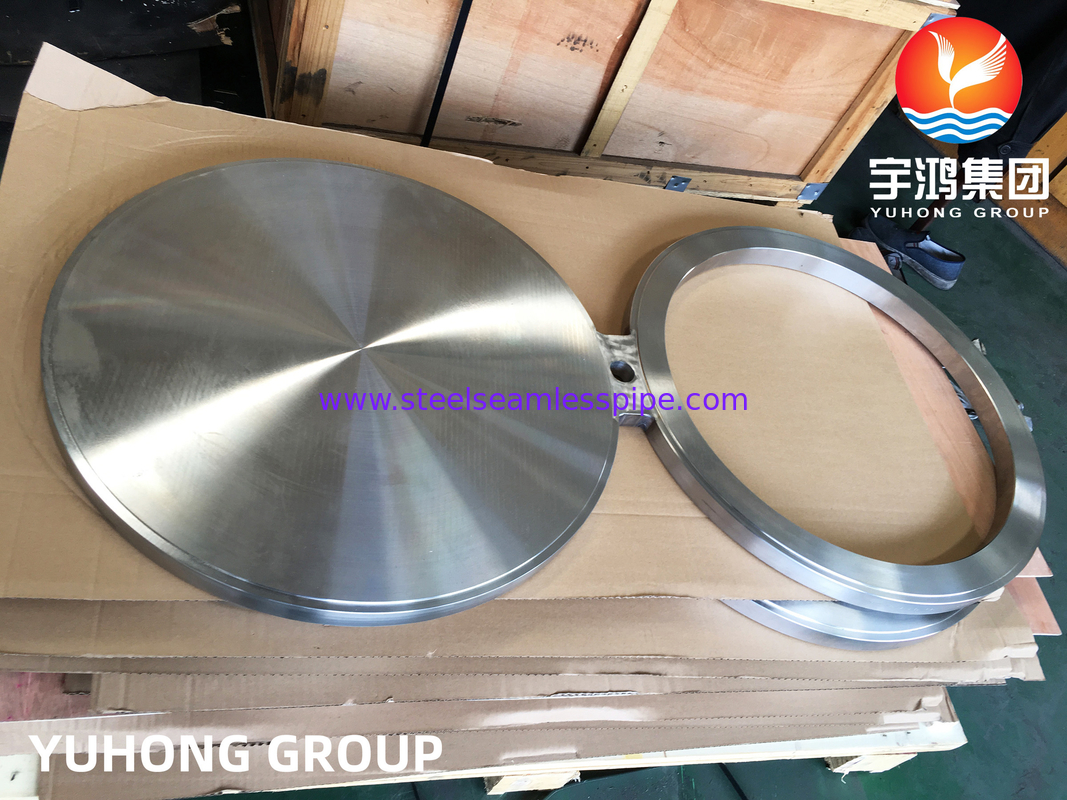

| Material: | A182 F316L | Product Name: | STAINLESS STEEL SPECTACLE BLIND FLANGE |
|---|---|---|---|
| Pressure: | CLASS 150/300/600/900/1500 Etc | Standard: | ANSI B16.5 ASME B16.47 SERIES A(MSS SP44) |
| Type: | Threaded Flange,Slip On Flange,socket Weld Flange,weld Neck Flange,LAP Joint Flange | Process: | Forged,Drilling/Bending/Stamping,Casting,sand Casting&CNC Machining,Forging+machining+heating Treatment |
| Surface Treatment: | Heat Treatment,Galvanized,Black Oxidation,customize,pickeling | Inspection: | Mechinical Property Inspection,Factory Or Third Party Assigned,100% Inspection |
| High Light: | astm a182 f316 blind spectacle flange,rf stainless steel spectacle flange,b16.5 stainless steel blind flange |
||
SS 316/316L Flanges are one of the most commonly sought after products in the industry. These SS Flanges are known for their properties such as better corrosion resistance, pitting and crevice corrosion when compared to type 304. UNS S31600/S31603 Flanges are used in a lot many industries such as chemical processing equipment, rubber industry, paper & pulp industry, pollution control equipment, pharmaceutical industries and more. SS 316L is a low carbon containing variant of 316 and bears better immunity towards sensitization when compared.
SS316L blind flanges have excellent resistance to the various corrosive media that are available in various design. These fittings are manufacture in India. UNS S31603 SS lap joint Flanges is meant to join a pipe into a recessed area of values, fittings and flanges, Full couplings is usually to joint pipe. It can be joint by welding. They are available in several of sizes, thickness, and pressure ratings according to customers’ requirements. UNS S31603 SS lap joint Flanges are used to connect small bore pipes as a projection of a wedding effect on the pipes.
Forged and Plate Flanges
| Products | Size | |
| ASTM A182 SS 316L Slip-On Flanges | ASTM A182 SS 316L Threaded Flanges | Sizes 1/8″ – 36″ Raised Face or Flat Face |
| ASTM A182 SS 316L Weld Neck Flanges | ASTM A182 SS 316L Socket Weld Flanges | |
| ASTM A182 SS 316L Blind Flanges | ASTM A182 SS 316L Reducing Flanges | |
| ASTM A182 SS 316L Lap Joint Flanges | ASTM A182 SS 316L Plate Flanges | |
| ASTM A182 SS 316L Orifice Flanges | ASTM A182 SS 316L Forged Flanges | |
| ASTM A182 SS 316L Ring Type Joint Flanges | ASTM A182 SS 316L Square Flanges | |
SS 316L Flange Standards / Types And Pressure Class
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
