ASTM B167 Inconel 601 Seamless Tube - Corrosion & High Temperature Resistant Nickel Alloy Heat Exchanger Tube

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B167 N06601

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	20-80 days
Payment Terms:	T/T,L/C
Supply Ability:	1500 Tons Per Month

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM, DIN, JIS, Etc.	Application:	Chemical Industry, Petroleum, Etc.
Thickness:	0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm	Alloy Or Not:	Is Alloy
Technique:	Hot Rolled,Cold Drawn,Cold Rolled,welded And Seamless Steel Pipe	Certificate:	ISO, SGS, BV, Etc.
Length:	Customized	MOQ:	1 Ton
Material:	Nickel Alloy	Outer Diameter:	Customized
Package:	Wooden Cases, Pallets, Etc.	Port Of Loading:	Shanghai, Ningbo, Etc.
Shape:	Pipe	Size:	Customized
Surface Treatment:	Polishing, Sand Blasting, Etc.	Wall Thickness:	Customized
Highlight:	astm b167 seamless tubes , uns n06601 seamless tubes , inconel 601 seamless tubes

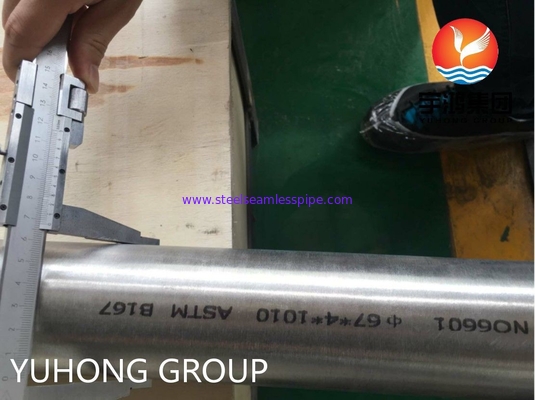

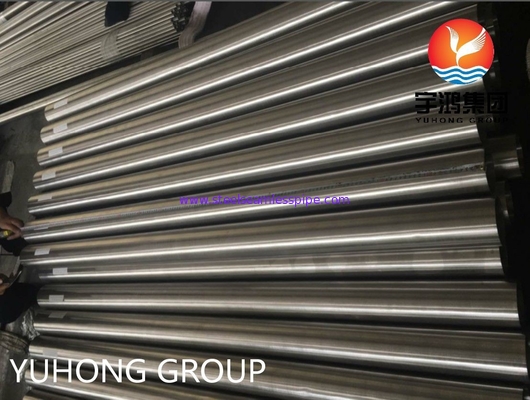

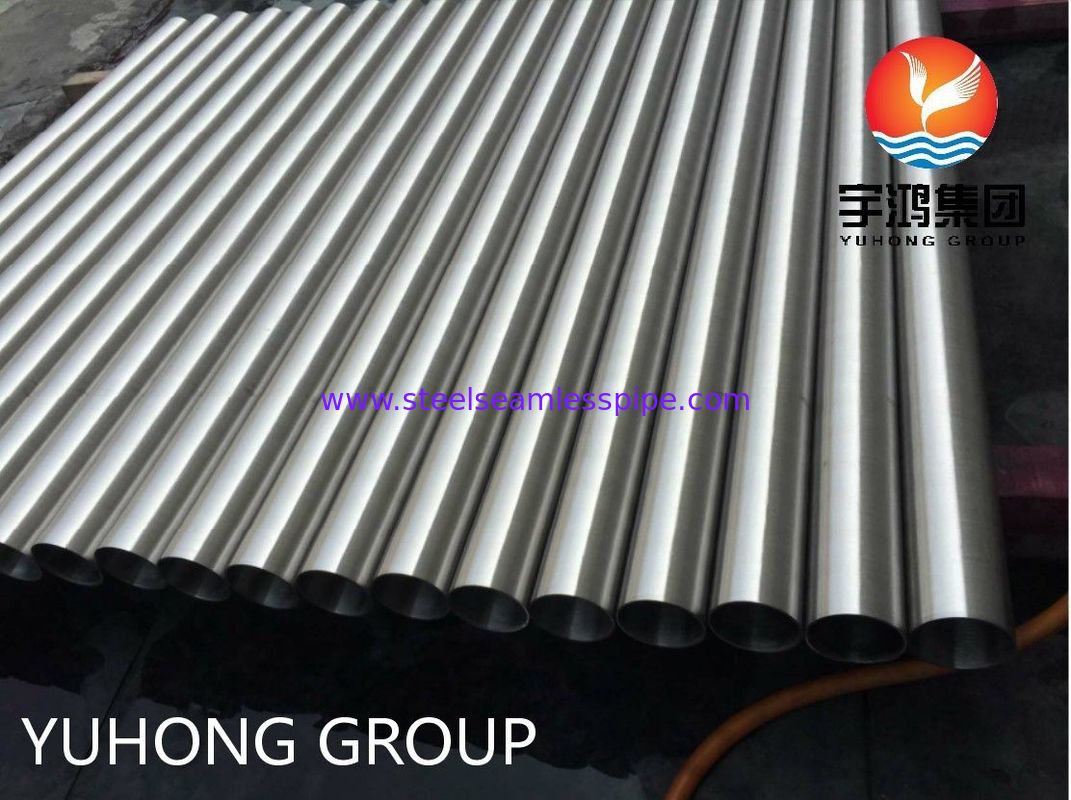

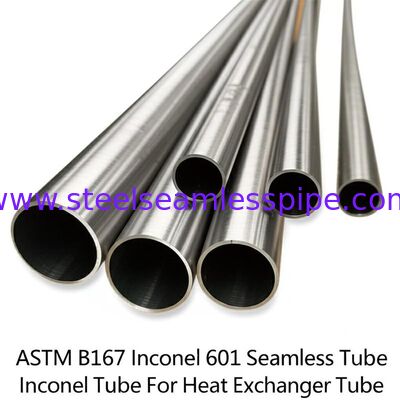

ASTM B167 Inconel 601 Seamless Tube for Heat Exchanger Applications

Yuhong Group is a leading manufacturer and supplier of Inconel 601 seamless pipe ASTM B167 UNS N06601 in China. This nickel-chromium-iron alloy tube is specifically designed for heat exchanger applications, offering exceptional performance in demanding industrial environments.

Material Specifications

Available materials include UNS N06600, N06601, N06603, N06690, N06693, N06025, N06045, and N06696.

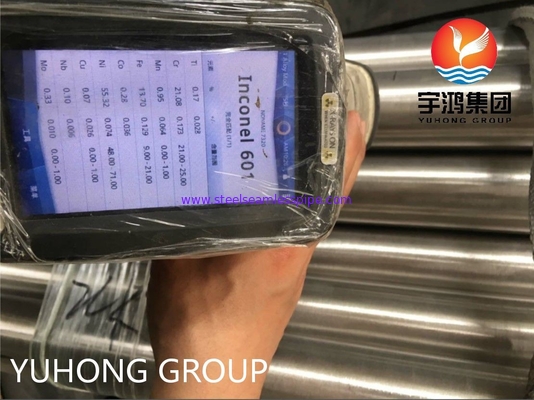

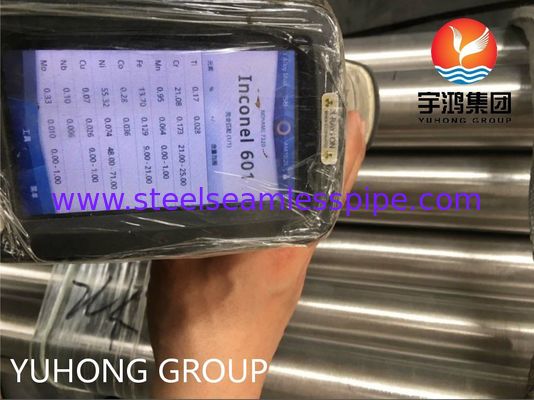

ASTM B167 UNS N06601 Chemical Composition

Alloy	C	Mn	Si	S	Cu	Fe	Ni	Cr
601	0.15 max	1.00 max	0.5 max	0.015 max	0.5 max	6.0-10.0	72.0 min	14.0-17.0

ASTM B167 UNS N06601 Mechanical Properties

Nickel Alloy	Tensile Stress	Yield Stress (0.2% Offset)	Elongation
601	Psi - 80,000, MPa - 550	Psi - 30,000, MPa - 205	30%

Product Forms and Dimensions

Sheet thickness: 0.010" to 0.120"
Reels available up to 24" wide in lighter specifications
Steel plates up to 2" thick
Forged bars up to 3" diameter, with larger custom sizes available
Seamless tubes up to 4" NB, with larger welded structures (100% X-ray) available
Custom production for specialized requirements, including re-drawn tubes and strict tolerance pipes

Purchasing Requirements and Specifications

Purchasers must specify all necessary requirements for material performance, including:
