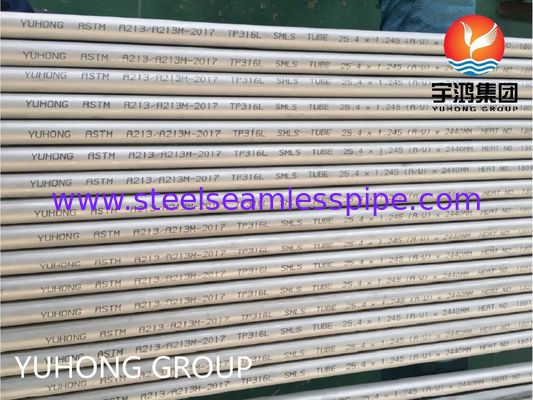

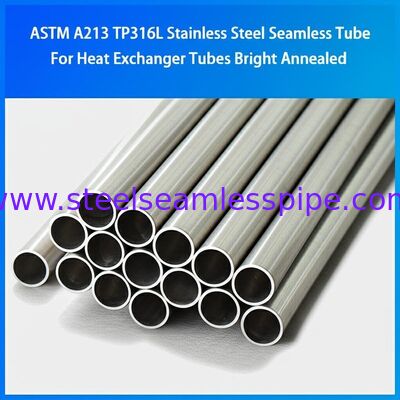

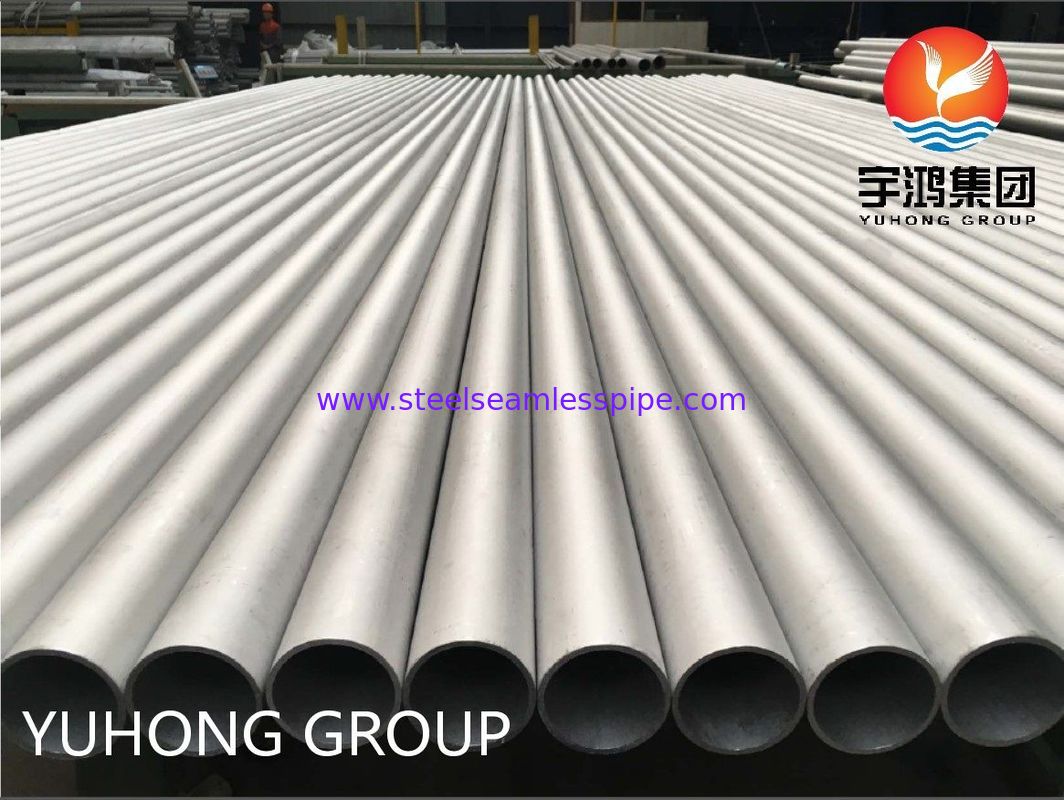

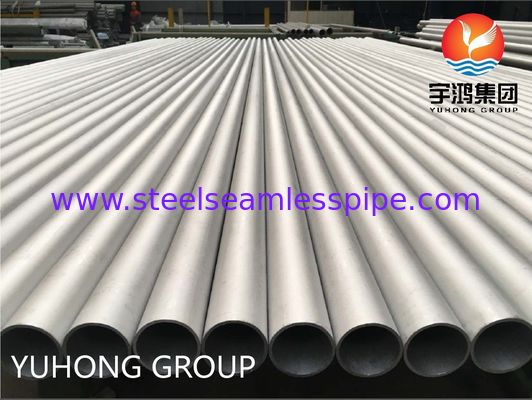

ASTM A213 TP316L Stainless Steel Seamless Tube For Heat Exchanger Tubes Bright Annealed
Yuhong Special Steel has over 25 years of experience in supplying seamless and welded pipes made from austenitic stainless steel and nickel alloy steel. With annual sales exceeding 80,000 tons, we serve customers in more than 45 countries worldwide including the United States, Canada, Germany, Italy, Saudi Arabia, South Korea, and Australia.
ASTM A213 TP316L is a heat exchanger tube specification manufactured from 316L austenitic stainless steel. As a leading supplier and manufacturer of stainless steel pipes, YUHONG GROUP produces A213 TP316L tubes that feature a low carbon content compared to standard 316 grade, providing enhanced toughness while maintaining excellent corrosion resistance. These tubes can be manufactured through resistance welding, electrofusion welding, or cold drawing processes.
Standard Specifications
- ASTM A213 / A213M-11a: Standard Specification for Seamless Ferritic and Austenitic Alloy Steel Boiler, Superheater and Heat Exchanger Tubes
- ASTM A269-10: Standard Specification for General Seamless and Welded Austenitic Stainless Steel Pipe
- ASTM A312 / A312M-12: Standard Specification for Seamless, Welded, and Re-cold Worked Austenitic Stainless Steel Pipe
- ASTM A511 / A511M-12: Standard Specification for Seamless Stainless Steel Mechanical Pipe
- ASTM A789/A789M-10a: Standard Specification for General Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
- ASTM A790/A790M-11: Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
- DIN 17456-2010: Universal seamless round stainless steel pipe
- DIN 17458-2010: Seamless round austenitic stainless steel tube
- EN10216-5 CT 1/2: Stainless steel seamless pipes and tubes
- GOST 9941-81: Seamless cold-worked and warm-worked tubes made of corrosion-resistant steel
- Other standards including BS and JIS available upon request
Material Grade - Chemical Composition
| Grade |
UNS Designation |
Carbon |
Manganese |
Phosphorus |
Sulfur |
Silicon |
Chromium |
Nickel |
Molybdenum |
| TP316L |
S31603 |
0.035 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0-18.0 |
10.0-14.0 |
2.00-3.00 |
Available Material Grades
American Standard
Austenitic Steel: TP304, TP304L, TP304H, TP304N, TP310S, TP316, TP316L, TP316Ti, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, 904L
Duplex Steel: S31803, S32101, S32205, S32304, S32750, S32760
Others: TP405, TP409, TP410, TP430, TP439
European Standard
1.4162, 1.4301, 1.4307, 1.4362, 1.4401, 1.4404, 1.4410, 1.4438, 1.4462, 1.4501, 1.4539, 1.4541, 1.4550, 1.4571, 1.4841, 1.4845, 1.4878, 1.4948
GOST Standard
08Х17Т, 08Х13, 12Х13, 12Х17, 15Х25Т, 04Х18Н10, 08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т, 10Х23Н18, 08Х18Н10, 08Х18Н10Т, 08Х18Н12Т, 08Х17Н15М3Т, 12Х18Н10Т, 12Х18Н12Т, 12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ
Size Range
| Production |
Outside Diameter |
Wall Thickness |
| Seamless Pipe |
6.00mm-830mm |
0.5mm-48mm |
Standard tubing sizes range from 1⁄8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter, with wall thicknesses from 0.015 to 0.500 in. [0.4 to 12.7 mm]. Tubes with other diameters can be supplied provided they meet all other specification requirements.
Applications
- Food processing equipment, especially beer brewing, milk processing and winemaking
- Kitchen benches, sinks, appliances and equipment
- Architectural panels, railings and trim
- Chemical containers, including shipping containers
- Heat exchangers
- Woven or welded screens for mining, quarrying and water filtration
- Threaded fasteners
- Springs
- Other industrial applications
