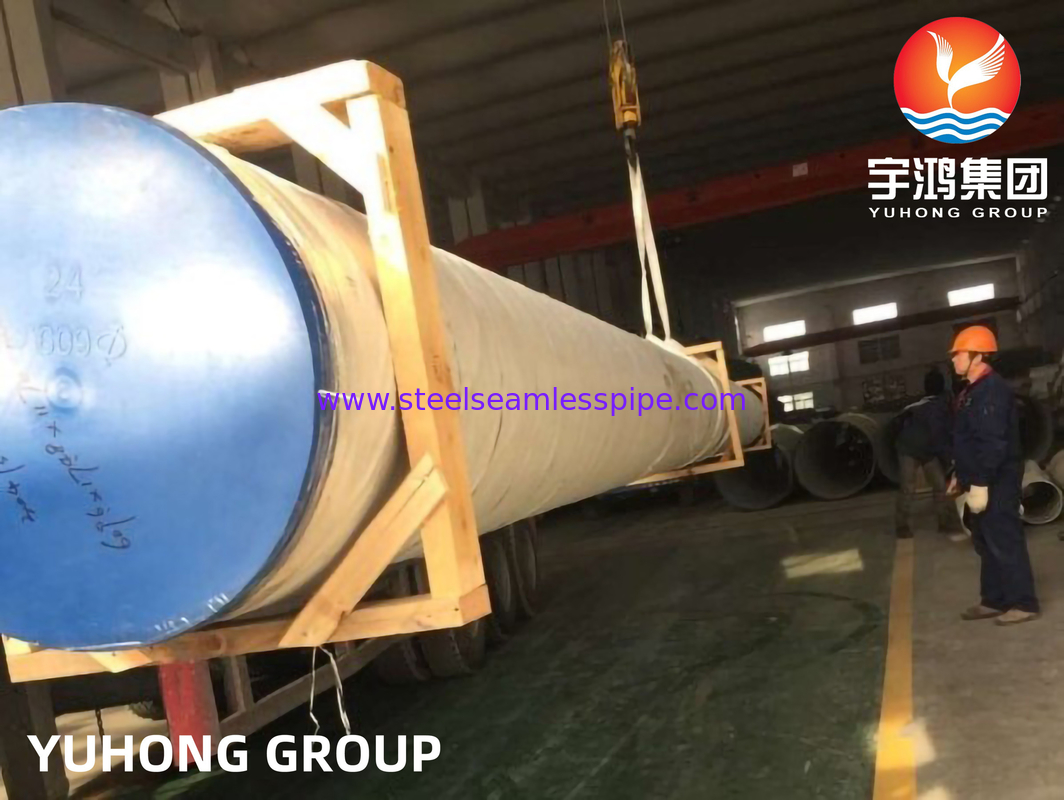

ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe

ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe

  • ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe
  • ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe
  • ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe
  • ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe
  • ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe
ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: TP304, TP304L , TP304H, TP309, TP310S, TP310H, TP316, TP316L, TP316Ti,TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP904L
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Seaworthy plywood cases or pallets
Delivery Time: 7days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Product Name: Stainless Steel Welded Tube Standard: ASTM A312 / ASME SA312
Material Grade: TP304, TP304L,TP316L,TP321,TP321H,TP310 ETC. Welded Size: 1/2" NB - 16" NB
Thickness: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS NDT: ET, HT, PT
Application: Heat Exchanger And Oil Field Piping, Etc
High Light:

astm a312 stainless steel welded pipe

,

tp304 stainless steel welded pipe

,

asme sa312 stainless steel welded tubing

ASTM A312 / ASME SA312 TP304 / 304L Stainless Steel Welded Pipe





With decades of production and export experience in this field, YUHONG GROUP is proud to say that we can handle kinds of projects, such as heat exchanger / boiler projects, marine projects, oil & gas projects etc. Every year we sell more than 80000 tons of stainless steel pipes and tubes. Our products have been well known among the customers around the world. YUHONG GROUP has build long term relationship with these valuable clients, which already cover more than 45 countries.





TP321 Stainless Steel Welded Tubes Specification

Specifications ASTM A312 / SA312
Dimensions ASTM, ASME
Size 1/8″NB TO 30″NB
Welded Size 1/2" NB - 16" NB
Schedule SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type ASTM A 312 TP 304 SS Welded Pipes
Specialized in Large Diameter Size
Length Single Random, Double Random & Cut Length.
Form Round, Square, Rectangular, Hydraulic Etc
End Plain End, Beveled End, Treaded





ASTM A312 TP304 Stainless Steel Welded Pipes Equivalent Grades

STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
SS 304 S30400 1.4301 Z7CN18‐09 X5CrNi18-10 SUS 304 304S31 08Х18Н10





Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes of A 249 / SA 249
1.1 This specification covers nominal-wall-thickness welded tubes made from the austenitic steels listed in Table 1, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes.


1.2 Grades TP304H, TP309H, TP309HCb, TP310H, TO310HCb, TP316H, TP321H, TP347H, and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service such as for superheaters and reheaters.


1.3 The tubing sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.320 in. [0.4 to 8.1 mm], inclusive, in wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.

1.4 Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness.

1.5 Optional supplementary requirements are provided and, when one or more of these are desired, each shall be so stated in the order.

1.6 The values stated in either inch-pound units or SI units are to be regarded separately as standard. (A combination of values from the two systems may result in nonconformance with the specification.) The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.





Stainless Steel TP304 Welded Pipes Mechanical Properties​

Grade Tensile Strength (MPa) min Elongation (% in 50mm) Yield Strength 0.2% Proof (MPa) Hardness
Rockwell (HR B) max Brinell (HB) max
SS 304 515 40 205 92 201





Material Grade Chemical Composition

Grade UNS Composition, %
Design C Mn P S Si Cr Ni Mb Ti Nb N Cu Ce B Al
TP304 S30400 0.08 2 0.045 0.03 1 18.0–20 8.0–11 . . . . . . . . . . . . . . . . . .
TP304L S30403 0.035 2 0.045 0.03 1 18.0–20 8.0–13 . . . . . . . . . . . . . . . . . .
TP304H S30409 0.04 – 0.1 2 0.045 0.03 1 18.0–20 8.0–11 . . . . . . . . . . . . . . . . . .
TP310S S31008 0.08 2 0.045 0.03 1 24.0- 26 19.0- 22 0.8 . . . . . . . . . . . . . . .
TP310H S31009 0.04 – 0.1 2 0.045 0.03 1 24.0–26 19.0–22 . . . . . . . . . . . .   . . .
TP310H S31035 0.04 – 0.1 0.6 0.025 0.015 0.4 21.5–23.5 23.5–26.5 . . . . . . 0.40- 0.6 0.20- 0.3 2.5- 3.5 . . . 0.002- 0.008
TP316 S31600 0.08 2 0.045 0.03 1 16.0–18 10.0–14 2.00–3 . . . . . . . . . . . . . . .
TP316L S31603 0.035 2 0.045 0.03 1 16.0–18 10.0–14 2.00–3 . . . . . . . . . . . . . . .
TP316H S31609 0.04 – 0.1 2 0.045 0.03 1 16.0–18 10.0–14 2.00–3 . . . . . . . . . . . . . . .
TP317 S31700 0.08 2 0.045 0.03 1 18.0–20 11.0–15 3.0–4 . . . . . . . . . . . . . . .
TP317L S31703 0.035 2 0.045 0.03 1 18.0–20 11.0–15 3.0–4 . . . . . . . . . . . . . . .
TP321 S32100 0.08 2 0.045 0.03 1 17.0–19 9.0–12 . . . Ti 5 × (C+N) min, 0.70 max . . . 0.1 . . . . . .
TP321H S32109 0.04 – 0.1 2 0.045 0.03 1 17.0–19 9.0–12 . . . 4(C+N) min; 0.70 max . . . 0.1 . . . . . .
TP321H S32654 0.02 2.0-4 0.03 0.005 0.5 24.0–25 21.0–23 7.0-8 . . . . . . 0.45- 0.55 0.30-0.6 . . .
TP321H S33228 0.04 – 0.08 1 0.02 0.015 0.3 26.0–28 31.0–33 . . . . . . 0.60- 1 . . . . . . 0.05 – 0.1   0.025
TP321H S34565 0.03 5.0-7 0.03 0.01 1 23.0–25 16.0–18 4.0-5 . . . 0.1 0.40- 0.6 . . . . . .
TP347 S34700 0.08 2 0.045 0.03 1 17.0–19 9.0–13 . . . . . . See Spec . . . . . . . . .
TP347H S34709 0.04 – 0.1 2 0.045 0.03 1 17.0–19 9.0–13 . . . . . . See Spec . . . . . . . . .
Alloy 20 N08020 0.07 2 0.045 0.035 1 19.0–21 32.0–38 2.0–3 . . . See Spec . . . 3.0– 4 . . . . . . . . .
Alloy 20 N08367 0.03 2 0.04 0.03 1 20.0–22 23.5–25.5 6.0–7 . . . . . . 0.18–0.25 0.75 . . . . . . . . .
Alloy 20 N08028 0.03 2.5 0.03 0.03 1 26.0–28 30.0–34 3.0–4       0.60–1.4
Alloy 20 N08029 0.02 2 0.025 0.015 0.6 26.0–28 30.0–34 4.0–5       0.6– 1.4


Applications
Gas Processing Industries, Petrochemical Industries, Power Generation Industries, Food Processing Industries,
Chemical Industries, Oil & Gas Industries, Fertilizers Industries, Sugar Industries, etc.
