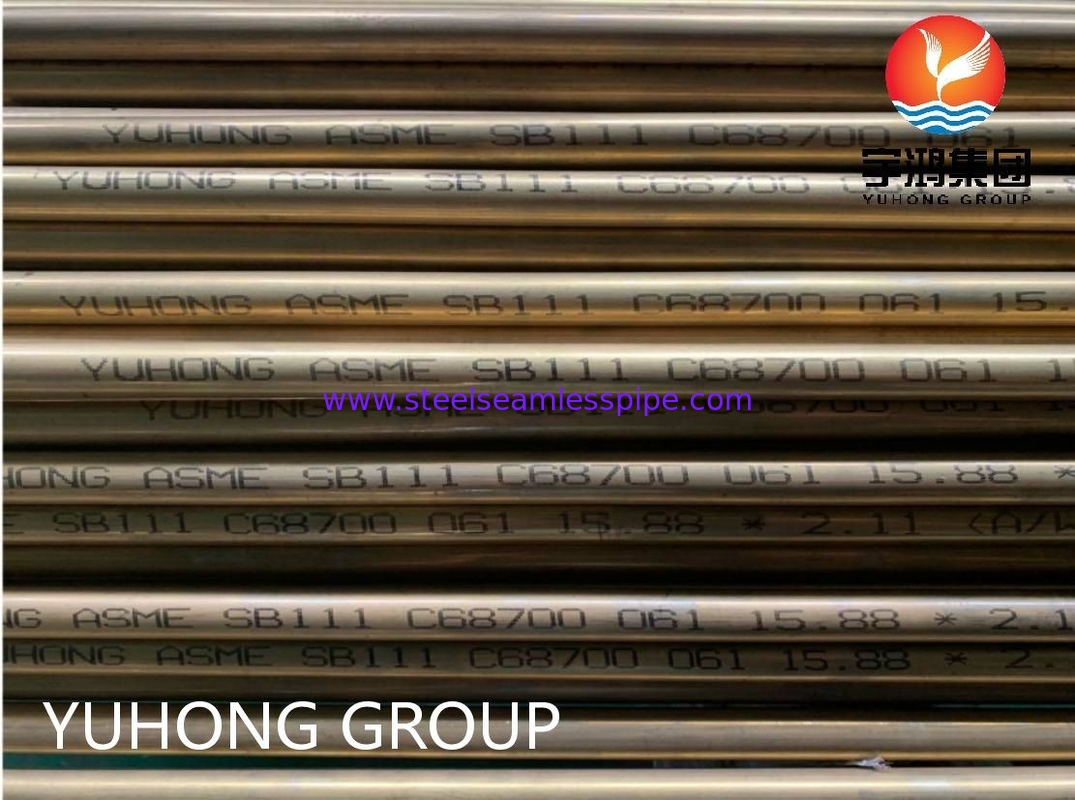

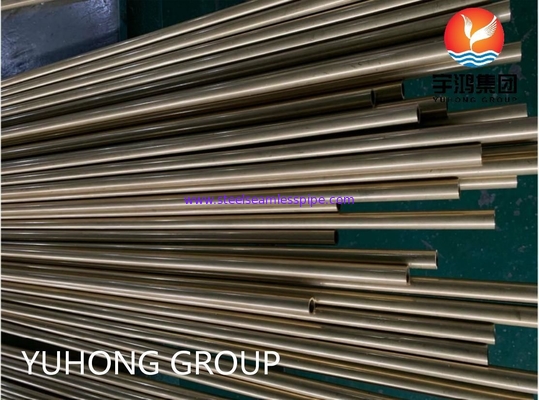

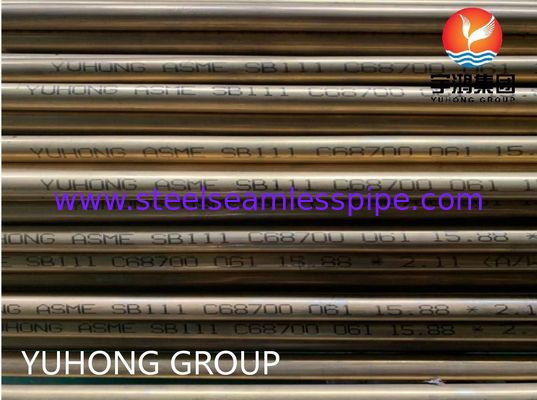

ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications

ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications

  • ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications
  • ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications
  • ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications
  • ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications
ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B111 C68700
Payment & Shipping Terms:
Minimum Order Quantity: 100 KGS
Price: NEGOTIABLE
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80 days
Payment Terms: T/T,L/C
Supply Ability: 1500 Tons Per Month
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM, AISI, GB, DIN, JIS Length: Customized
Thickness: 0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm Product Name: Stainless Steel Pipe, 304 304L 316 316L 321 310S Stainless Steel Welded/Seamless Tube, Factory Direct Sales Stainless Steel Pipe For Electric Heating Element, Seamless Stainless Steel Pipe/Tube
Material: Copper Alloy Outer Diameter: 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm
Surface: Annealing, 8K, Polishing Or Unpolishing, Morror/Satin Finish: Brush Polish, Cold Drawn, Pickled, Bright Annealed Or Un Annealed, Bright
Application: Industry Elongation: ≥25%
Hardness: ≤HV200 Outer Diameter: 6-50mm
Package: Wooden Case Processing Technology: Cold Drawn
Shape: Tube Surface Treatment: Polishing
Tensile Strength: ≥200MPa Tolerance: ±0.05mm
Wall Thickness: 0.5-3mm Yield Strength: ≥100MPa
Highlight:

astm b111 copper round tube

,

c68700 copper round tube

,

corrosion resistance round copper pipe

ASTM B111 C68700 Copper Round Seamless Tube for Heat Exchanger Condenser
We are one of the largest stainless steel, duplex and alloy steel pipe manufacturers in China. After more than 20 years of development, we have accumulated a large number of customers worldwide, and Yuhong products have earned unanimous praise from customers.
C68700 (C687) copper-nickel alloy offers excellent corrosion resistance, particularly in marine salt water environments. The main wrought copper-nickel alloys for seawater service contain 10% or 30% nickel. These alloys include important additions of iron and manganese, which are essential for optimal corrosion resistance. Common applications for C706 include copper-nickel fittings, condenser housings, and heat exchanger components.
As a leading pipeline products supplier in China, YUHONG GROUP provides a comprehensive range of C68700 tubes in various specifications including ASTM B111. This specification establishes requirements for ferrule stock and seamless tubes of copper alloys across specified diameter ranges.
Material Properties
UNS C68700 demonstrates exceptional corrosion resistance in seawater environments. Both C44300 and C68700 pipes offer superior corrosion protection. C68700 is supplied in O61 temper (annealed) condition with minimum tensile strength of 345 MPa and minimum yield strength of 125 MPa.
C68700 Tube Density: 8.33 g/cm³ (0.301 lb/in³)
Typical Applications for C68700 Aluminum Brass "Arsenic"
  • Industrial: condenser tubes, evaporator tubes, ferrules, distiller tubes, heat exchanger tubes
  • Seawater desalination plants
International Standards
Country Standard Name
ASTM ASTM B111 Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock
GB/T GB/T8890 Seamless Copper Alloy Heat Exchanger Tubes
BS BS 2871 CZ110 Copper and Copper Alloys Tubes
JIS JIS H3300 Copper and Copper Alloy-Seamless Pipes and Tubes
DIN DIN1785 Wrought Copper and Copper Alloy Tubes for Condensers and Heat Exchangers
Chemical Composition (%)
UNS No. Copper Tin Al Nickel Lead Iron Zinc Mn. Arsenic
C68700 76.0-79.0 - 1.8-2.5 - 0.07 max 0.06 max remainder 0.02-0.10 -
Mechanical Properties
UNS No. Temper Annealing Temp (°C) Tensile Strength (min) Yield Strength (min) HV
C68700 O61 (Annealed) above 650 345 MPa 125 MPa 150
Copper Alloy Descriptions
UNS No. Description
C44300 Admiralty Metals, B, C, and D
C68700 Aluminum Brass, B
C70600 90-10 Copper-Nickel
C71500 70-30 Copper-Nickel
ASTM B111 C68700 tubes are extensively used in surface condensers, heat exchangers, and evaporators. They provide high strength, excellent corrosion resistance, and superior creep resistance at elevated temperatures.

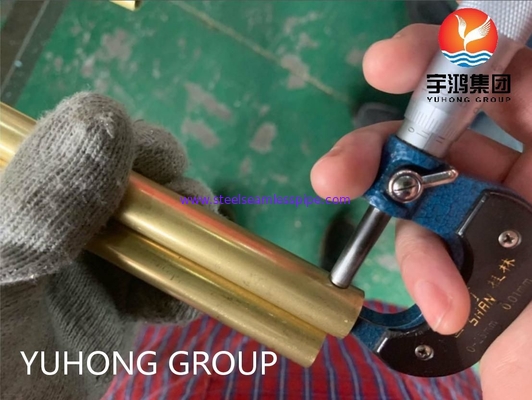

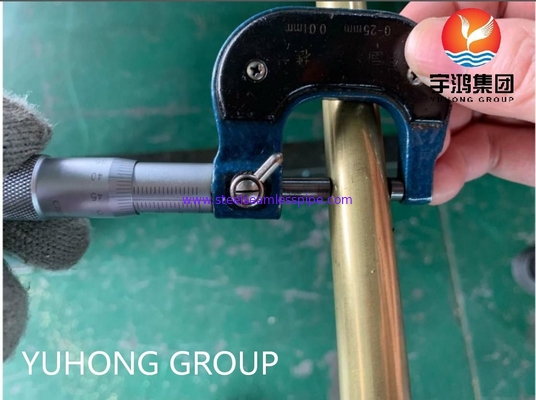

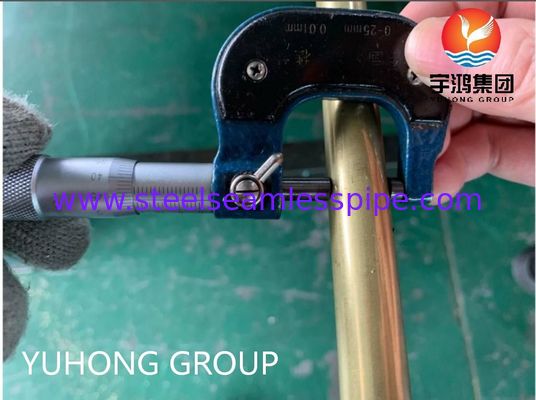

Material Testing
  • Mechanical Testing (Tensile of Area)
  • Hardness Test
  • Chemical Analysis - Spectro Analysis
  • Positive Material Identification - PMI Testing
  • Flattening Test
  • Micro and Macro Test
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
ASTM B111 C68700 Seamless Copper Alloy Tube for Heat Exchanger Condenser Applications 0
