ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar

ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar

  • ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar
  • ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar
  • ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar
  • ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar
ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: JIS, AISI, ASTM, GB, DIN, EN
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 20-80
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Product Name: Stainless Steel Flat And Angle Bar Standard: JIS, AISI, ASTM, GB, DIN, EN
Material: 304, 304L, 304H, 309S, 310S, 316L, Etc. Dimension: Equal Or Unequal
Shape: Flat, Angle Technique: Hot Rolled, Cold Drawn
Surface: Bright,black,sand Blast,polishing,pickling,etc Additional Service: Welding,bending,cutting,punching,etc
Package: Standard Seaworthy Package Application: Electric Tower, Bridge Manufacturing, Chemical Engineering, Railway Construction, Etc.
High Light:

astm a276 hot rolled flat bar

,

tp304 hot rolled flat bar

,

astm a276 hot rolled angle bar

ASTM A276 TP304 Stainless Steel Flat and Angle Bar For Engineering





We are one of the biggest manufactures of stainless steel & duplex steel & alloy steel tubes and pipes in China. With development more than 20 years, we have accumulated a great many clients all around the world and Yuhong products also won the great praise among the customers.





Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:

1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),

B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)

C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.

Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.

Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.

2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...

3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.





Product name Stainless Steel Flat and Angle Bar
Place of origin China
Brand name YUHONG
Standard JIS, AISI, ASTM, GB, DIN, EN
Grade 304, 304L, 304H, 309S, 310S, 316L, etc.
Technique Hot rolled, Cold drawn
Dimension
Equal or Unequal
Thickness as your request
Length as your request
Surface Bright,black,sand Blast,polishing,pickling,etc
Application Electric Tower, Bridge Manufacturing, Chemical Engineering, Railway Construction, Building Structure, Workshop Building, etc.





What does AISI 304 mean?

AISI 304 (1.4301) is a widely-used austenitic chromium-nickel stainless steel. ... Typical uses of 304 stainless steel include sinks, kitchen equipment such as pans, tubing and much more. Type 304 is sometimes also referred to as 18/8, a moniker that comes from its typical composition of 18% chromium and 8% nickel.





Product Features

1. Corrosion resistant

2. Accurate dimensions

3. Can sustain high pressure & temperature load

4. Rust proof finish

5. Smooth transition from flange thickness to pipe

6. Ensure excellent stress distribution





A276 Stainless Steel 304 Chemical Compositions

Grade C Mn Si P S Cr Ni N
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11 -
SS 304L 0.035 max 2.0 max 1.0 max 0.045 max 0.03 max 18 – 20 8 – 13 -
SS 304H 0.10 max 2.0 max 0.75 max 0.045 max 0.03 max 18 – 20 8 – 10.5 -





A276 Stainless Steel 304 Mechanical Properties

Grade Tensile Strength ksi (min) Yield Strength 0.2% ksi (min) Elongation % Hardness (Brinell) MAX Hardness (Rockwell B) MAX
304 75 30 40 201 92
304L 70 25 40 201 92
304H 75 30 40 201 92





A276 Stainless Steel 304 Physical Properties

SS 304/304L
Density lbm/in3 Thermal Conductivity (BTU/h ft. °F) Electrical Resistivity (in x 10-6) Modulus of Elasticity (psi x 106 Coefficient of Thermal Expansion (in/in)/°F x 10-6 Specific Heat BTU/lbm -°F Melting Range(°F)
at 68°F: 0.285 9.4 at 212°F 28.3 at 68°F 28 9.4 at 32 – 212°F 0.1200 at 68°F to 212°F 2500 to 2590
  12.4 at 932 °F 39.4 at 752°F   10.2 at 32 – 1000°F
    49.6 at 1652 °F   10.4 at 32 – 1500°F
SS 304H
Density lbm/in3 Thermal Conductivity (BTU/h ft. °F) Electrical Resistivity (in x 10-6) Modulus of Elasticity (psi x 106 Coefficient of Thermal Expansion (in/in)/°F x 10-6 Specific Heat BTU/lbm -°F Melting Range(°F)
at 68 °F at 68 – 212°F at 68 – 1600°F at 212°F at 932°F at 32 – 212°F in tension (E)
0.285 9.2 11 9.4 12.4 0.12 29 x 106





Applications

1. Electric Tower

2. Bridge Manufacturing

3. Chemical Engineering

4. Railway Construction

5. Building Structure

6. Workshop Building





Packing

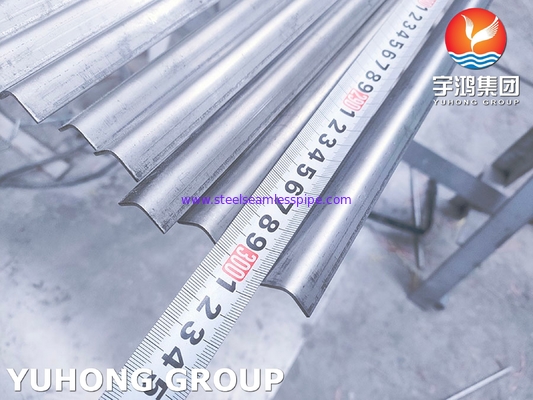

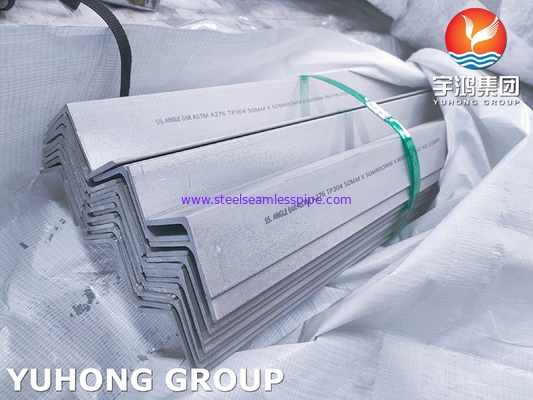

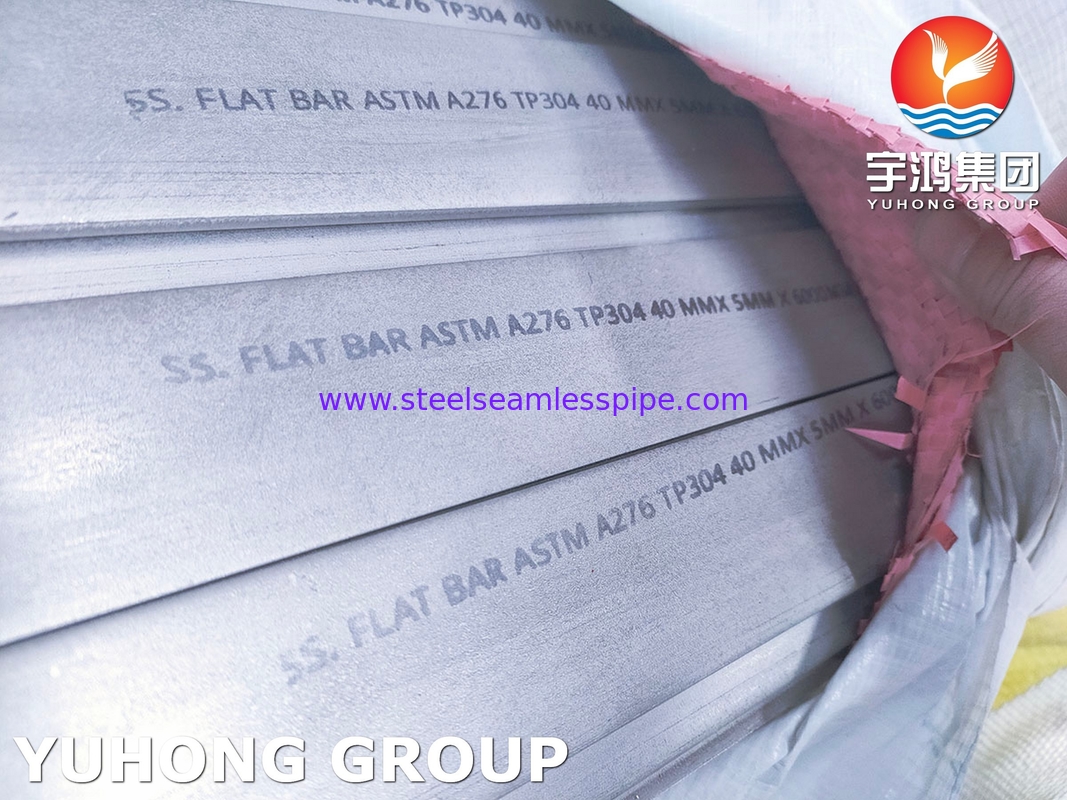

ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar 0

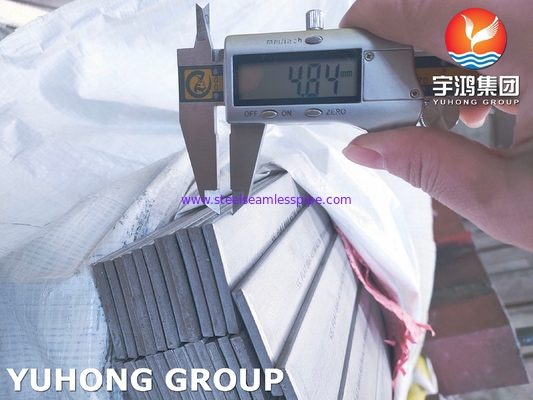

PMI Test

ASTM A276 Stainless Steel TP304 Hot Rolled Flat and Angle Bar 1
