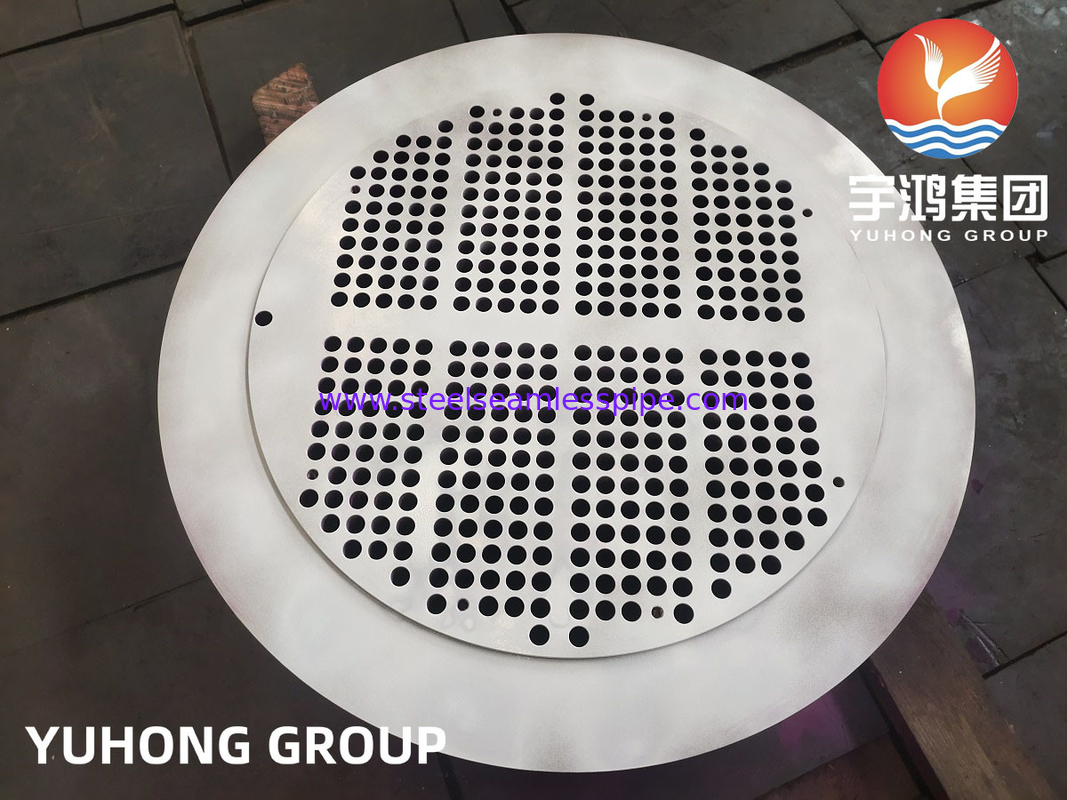

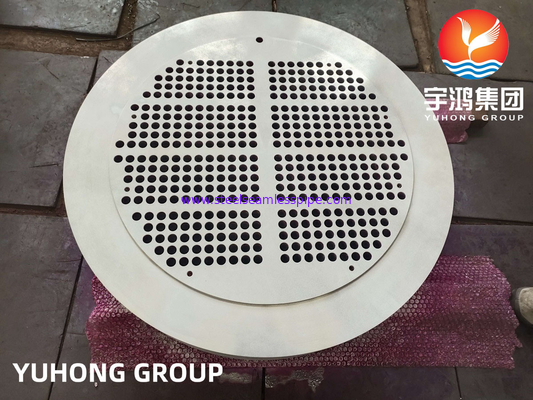

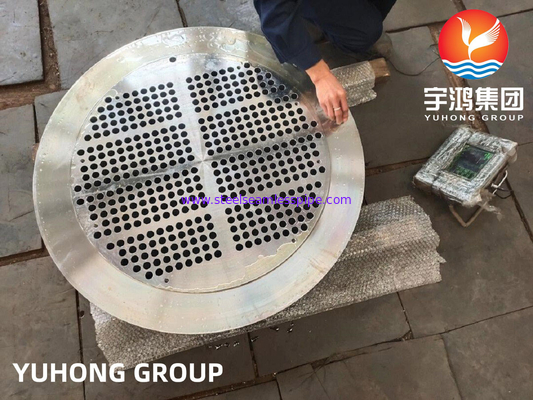

ASTM A182 F304 F316L Tubesheet For Heat Exchanger PT Avaiable

Tube sheets have holes drilled to accept a series of tubes inside of an enclosed tubular pressure vessel. These pressure vessels, commonly referred to as shell and tube heat exchangers, are the most common heat exchangers used in oil refineries and large chemical plants. The tube sheet itself serves as a supporting element in heat exchangers and boilers. The tube sheet is called this because the tubes–which are carefully arranged in a specific pattern–penetrate the tube sheet in multiple places to allow the fluid within these tubes to flow in and out of the heat exchanger. The fluid flowing through the tubes within the shell exchanges heat with the fluid that flows into the shell but flows past the outside of the tubes exchanging the heat with the tube fluid.

Tubesheet Analysis Method

Displays the standard to use for analysis:

• TEMA - Tubular Exchanger Manufacturers Association

• ASME - ASME Section VIII, Division 1, Section UHX or ASME Section VIII, Division 2, Part 4

• The option selected in Design Code determines whether the software uses Division 1 or Division 2.

• PD 5500 (British Code) - British Pressure Vessel Code, Section 3.9, Flat Heat Exchanger Tubesheets

• EN-13445

Exchanger Type

Select the type of heat exchanger.

• U-Tube has only one tubesheet. The tubes are bent in the form of a "U." The bundle can removed for maintenance, but the inside of the tube is harder to clean because of the bend.



• Fixed has two tubesheets that are fixed at each end of the exchanger and are connected to each other by straight tubes. Both the tubesheets are stationary, so differential thermal expansion can develop between the shell and the tubes. An expansion joint is sometimes required to absorb the thermal growth. You must select a fixed type of tubesheet exchanger to perform finite element analysis (YUHONG) on expansion joints.



• Floating has one tubesheet that is fixed (stationary) and one that is free to move. Because one tubesheet floats, any differential thermal expansion between the shell and tubes is absorbed. This category of exchangers is the most versatile and also the costliest. Tubes can also be cleaned easily compared to U-tube exchangers.

Advantage :

1️⃣ Corrosion resistance: ASTM A182 F304 is a stainless steel material known for its excellent corrosion resistance. It is resistant to various corrosive substances such as acids, alkalis, and chloride solutions, making it suitable for use in harsh environments.

2️⃣ High strength: F304 stainless steel has good mechanical properties, including high tensile strength and yield strength. This makes tubesheets made from F304 capable of withstanding high pressure and mechanical stress.

3️⃣ Heat resistance: ASTM A182 F304 exhibits good heat resistance, allowing tubesheets to maintain their mechanical properties and structural integrity at elevated temperatures.

4️⃣ Versatility: F304 stainless steel is a versatile material and finds applications in a wide range of industries, including chemical processing, oil and gas, petrochemicals, power generation, and more. Its compatibility with various fluids and substances adds to its versatility.

5️⃣ Fabrication flexibility: ASTM A182 F304 is a readily weldable material, allowing for easy assembly and fabrication of tubesheets according to specific requirements. It can be formed, machined, and welded to achieve the desired shape and dimensions.
