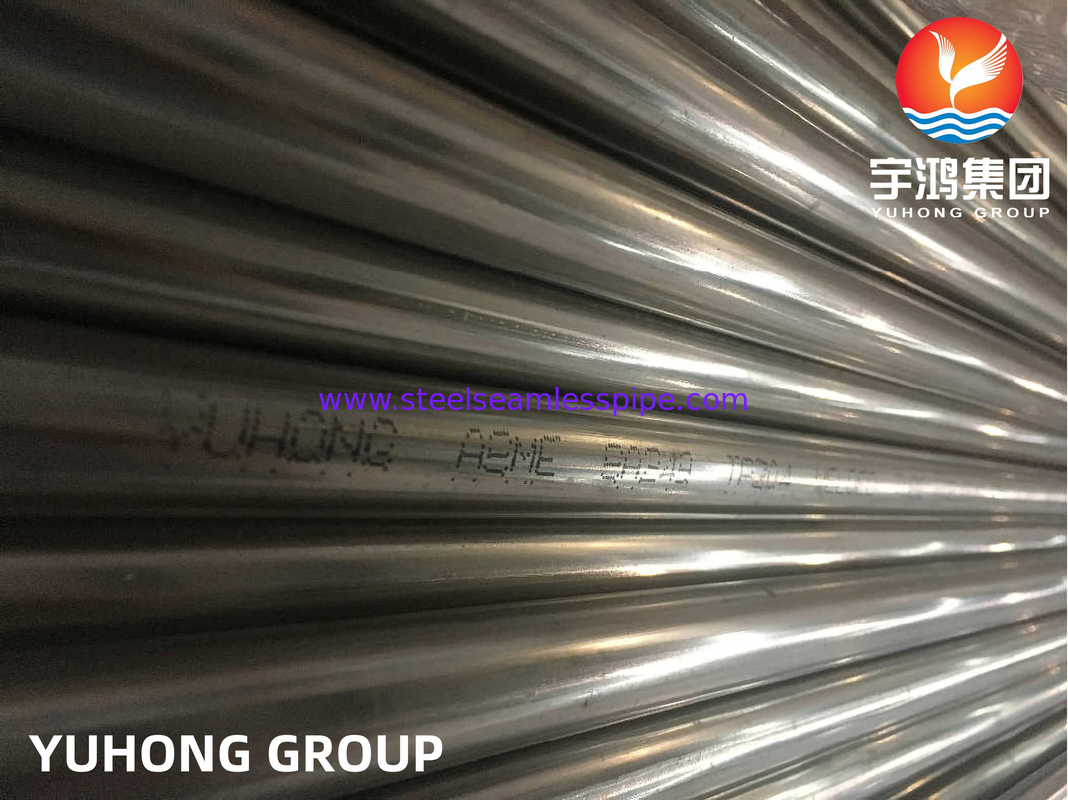

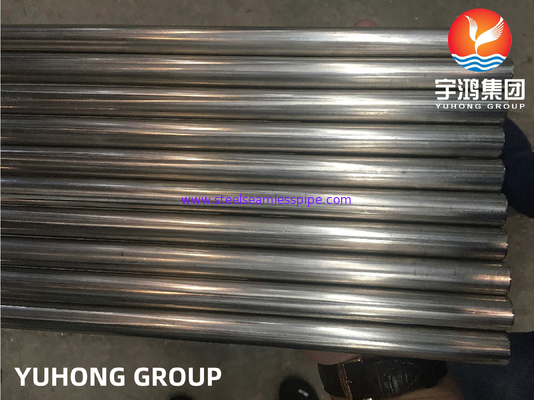

ASTM A249 TP316L Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed

ASTM A249 TP316L Stainless Steel Welded Tube For Heat Exchanger Tube Bright Annealed

Stainless Steel Welded Tube ASTM A249 and ASME SA249 TP316L For Heat Exchanger

YUHONG Group deal with Stainless steel pipe and tube already more than three decades, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 45 countries.

ASME SA249 TP316L Tube Mechanical Properties

ASME SA249 TP316L Tube Chemical Composition

ASME SA249 TP316L Equivalent

Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger and Condenser Tubes oF A249 / SA249
1.1 This specification covers nominal-wall-thickness welded tubes made from the austenitic steels listed in Table 1, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes.

1.2 Grades TP304H, TP309H, TP309HCb, TP310H, TO310HCb, TP316H, TP321H, TP347H, and TP348H are modifications of Grades TP304, TP309S, TP309Cb, TP310S, TP310Cb, TP316, TP321, TP347, and TP348, and are intended for high-temperature service such as for superheaters and reheaters.

1.3 The tubing sizes and thicknesses usually furnished to this specification are 1/8 in. [3.2 mm] in inside diameter to 5 in. [127 mm] in outside diameter and 0.015 to 0.320 in. [0.4 to 8.1 mm], inclusive, in wall thickness. Tubing having other dimensions may be furnished, provided such tubes comply with all other requirements of this specification.

1.4 Mechanical property requirements do not apply to tubing smaller than 1/8 in. [3.2 mm] in inside diameter or 0.015 in. [0.4 mm] in thickness.

1.5 Optional supplementary requirements are provided and, when one or more of these are desired, each shall be so stated in the order.

1.6 The values stated in either inch-pound units or SI units are to be regarded separately as standard. (A combination of values from the two systems may result in nonconformance with the specification.) The inch-pound units shall apply unless the "M" designation of this specification is specified in the order.

Uses and Applications

1. Common industrial services (Petroleum, chemical, paper, fertilizer, fabric, aviation and nuclear)
2. Fluid, gas and oil industry
3. Heat transmission and pressure service
4. Construction and ornamental
5. Boilers and Heat exchangers
6. Decoration purpose, boiler, auto parts, medical device, food industry, building materials)
