Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS. |
| Model Number: | DIN 17660 CuZn20Al2 |
| Minimum Order Quantity: | 500kgs |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7days |
| Payment Terms: | L/C, T/T |
| Product Name: | Copper Alloy Seamless Tubes | Standard: | DIN 17660 |
|---|---|---|---|
| Material: | Copper Alloy CuZn20Al2 | OD: | 2mm To 350mm |
| WT: | 0.3mm To 50mm | Length: | As Required |
| End: | Plain Ends / Beveled Ends | Type: | Seamless |
| Testing: | ET, HT, PMI, | Application: | Heat Exchangers, Condensers, Equipments, Etc. |
| High Light: | Copper Aluminum Brass Tube Seamless,CuZn20Al2 Aluminum Brass Tube,Seamless Copper Alloy Tube F39 |
||

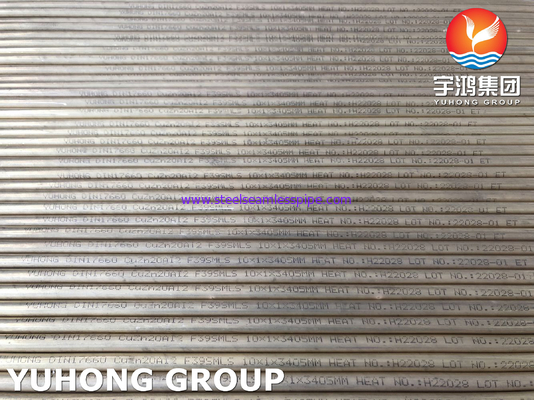

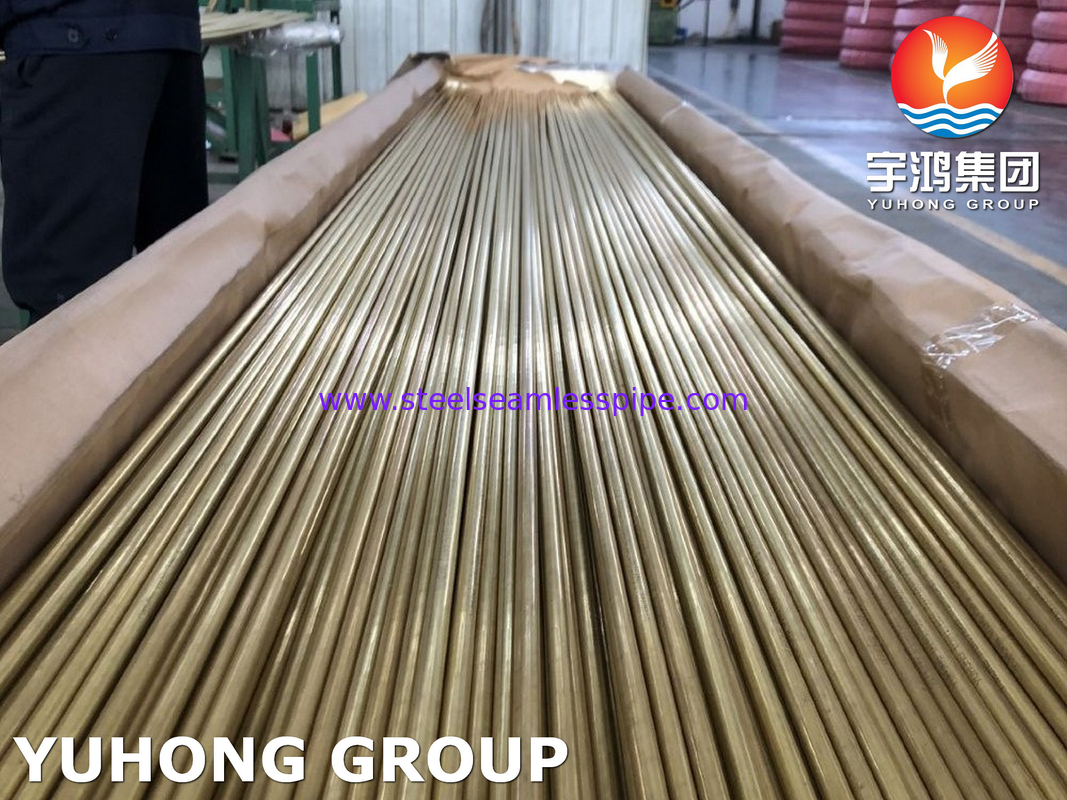

DIN 17660 Aluminum Brass tube CuZn20Al2 F39 Copper Alloy Seamless Tube for Heat Exchanger / Condenser
Aluminum Brass tubes – CuZn20AL2/C68700 - resists the action of high-velocity salt and brackish water and are commonly used for condenser tubes. The main characteristic of CuZn20AL2/C68700 is its high resistance to impingement attack. Tubes of these alloys are recommended for use in Marine and Land Power Stations, in which cooling water velocities are high.
The aluminium brass tubes are basically a combination of high strength as well as general corrosion resistance with low susceptibility having stress corrosion cracking, making it a highly preferred material for different types of applications. The tubes can also be used in hard drawn conditions and can be heat treated which in turn ensures freedom from the stress corrosion cracking.
DIN 17660 CuZn20Al2 Copper Alloy Seamless Tube
| Al(%) | Mn(%) | Pb(%) | Fe(%) | Ni(%) | Zn(%) | Cu(%) |
|---|---|---|---|---|---|---|
| 1.8-2.3 | ≦0.1 | ≦0.07 | ≦0.07 | ≦0.1 | ≧15 | 76.0-79.0 |
DIN 17660 Other Grades Or Similar Grades
| Grade | Standard | Area | Content |
|---|---|---|---|
| CuZn 44 Pb 2 | DIN 17660 | Germany | Wrought copper alloys; copper-zinc alloys (brass); (special brass); chemical composition |
| CuZn35Ni2 | DIN 17660 | Germany | Wrought copper alloys; copper-zinc alloys (brass); (special brass); chemical composition |
| CuZn 40 Al 2 | DIN 17660 | Germany | Wrought copper alloys; copper-zinc alloys (brass); (special brass); chemical composition |
| 2.0360 | DIN 17660 | Germany | Wrought copper alloys; copper-zinc alloys (brass); (special brass); chemical composition |
| CuZn 15 | DIN 17660 | Germany | Wrought copper alloys; copper-zinc alloys (brass); (special brass); chemical composition |
| 2.0240 | DIN 17660 | Germany | Wrought copper alloys; copper-zinc alloys (brass); (special brass); chemical composition |
| Standard Grade | ASTM B 111 C68700 |
EN 12451 CuZn20Al2As |
DIN 17660/1785 CuZn20Al2 |
BS 2871 CZ 110 |
JIS H3300 C6870 |
GB/T8890 HAL77-2 |
| Cu | 76.0-79.0 | 76.0-79.0 | 76.0-79.0 | 76.0-78.0 | 76.0-79.0 | 76-79 |
| Al | 1.8-2.5 | 1.8-2.3 | 1.8-2.3 | 1.8-2.3 | 1.8-2.5 | 1.8-2.5 |
| Fe | 0.06 max | 0.07 max | 0.07 max | 0.06 max | 0.06 max | 0.06 max |
| Pb | 0.07 max | 0.05 max | 0.07 max | 0.07 max | 0.07 max | 0.03 max |
| Zn | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. |
| As | 0.02-0.10 | 0.02-0.06 | 0.02-0.035 | 0.02-0.06 | 0.02-0.06 | 0.03-0.06 |
| P | - | 0.01 max | 0.01 max | - | - | 0.02 max |
| Mn | - | 0.1 max | 0.1 max | - | - | - |
| Total impurities | - | 0.3 max | 0.1 max | 0.3 max | - | 0.3 max |
|
Condition |
O61 | R390 | F39 | M | O | M |
| - | R340 | F34 | TA | - | Y2 | |
| - | - | O | - | - | ||
| Yield Strength N/mm2 |
125 min | 150 min | 150-230 | - | - | - |
| - | 120 min | 120-180 | - | - | - | |
| - | - | - | - | - | - | |
| Tensile Strength N/mm2 |
345 min. | 390 min | - | - | 373 min | 370 min |
| - | 340 min | - | - | - | 350 min | |
| - | - | - | - | - | - | |
| Elongation (%) | - | 45 min | 45 min | - | 40 min | 40 min |
| - | 55 min | 55 min | - | - | 50 min | |
| - | - | - | - | - | - | |
| Hardness Hv5 | - | - | - | 150 min | - | - |
| - | - | - | 85-110 | - | - | |
| - | - | - | 75 max | - | - | |
|
Typical use
|
Most used copper alloy for heat exchanger tubes application. |
|||||
