Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | JIS, AISI, ASTM, GB, DIN, EN |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to client requirements/wooden case packing |
| Delivery Time: | Depends on quantity |
| Payment Terms: | L/C AT SIGHT, T/T |
| Supply Ability: | 100 tons per month |
| Product Name: | Stainless Steel Flat Bar | Standard: | JIS, AISI, ASTM, GB, DIN, EN |
|---|---|---|---|
| Material: | 304, 304L, 304H, 309S, 310S, 316L, Etc. | Shape: | Flat |
| Technique: | Hot Rolled, Cold Drawn | Package: | Standard Seaworthy Package |
| Application: | Electric Tower, Bridge Manufacturing, Chemical Engineering, Railway Construction, Etc. | ||
| High Light: | Stainless Steel Flat Bar Astm A276,Hot Rolled Stainless Steel Flat Bar,Hot Rolled Flat Bar 304l |
||
Stainless steel bars include stainless steel black bars, stainless steel bright bars. stainless steel round bars. stainless steel square bars. stainless steel hexagonal bars. stainless steel special-shaped bars, stainless steel free-cutting bars, etc
The surface of the stainless steel bright rod is bright, that is. the hot-rolled stainless steel black rod is cold-drawn through a cold rolling mill to remove the black color on the surface. Stainless steel bright rods are generally cold drawn. finely ground or polished, with good surface brightness and wide applications.
Stainless steel black bar is our customary name. The proper term is stainless steel hot-rolled bar, which is a stainless steel bar that is hot-rolled Since the stainless steel bar comes out of the hot rolling furnace. the temperature will be very high, and the surface will be black when it is naturally cooled.
Difference between flat bar and steel plate
The main difference for both of flat bar and steel plate is about technology craft. The flat bar steel belongs to structural steel such as angle bar and steel channel, etc. with molding method of hot rolled and cold drawn. Its hot rolled flat bar is width with max 150mm, and thickness with max 60mm. However flat bar's edge is circular arc.
The flat bar steel is widely used. It looks like a slab cut from a common steel plate, but it is actually hot rolled. The edge of flat steel is called rolling edge. Rolling edge guarantees the strength of its edge.
Specifications
| Product name | Stainless Steel Flat and Angle Bar |
| Place of origin | China |
| Brand name | YUHONG |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Grade | 304, 304L, 304H, 309S, 310S, 316L, etc. |
| Technique | Hot rolled, Cold drawn |
| Dimension |
Equal or Unequal
|
| Thickness | as your request |
| Length | as your request |
| Surface | Bright,black,sand Blast,polishing,pickling,etc |
| Application | Electric Tower, Bridge Manufacturing, Chemical Engineering, Railway Construction, Building Structure, Workshop Building, etc. |
A276 Stainless Steel 304 Chemical Compositions
| Grade | C |
Mn |
Si | P | S | Cr | Ni | N |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 | - |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 13 | - |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 10.5 | - |
A276 Stainless Steel 304 Mechanical Properties
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
A276 Stainless Steel 304 Physical Properties
| SS 304/304L | ||||||
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat BTU/lbm -°F | Melting Range(°F) |
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
| SS 304H | ||||||
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat BTU/lbm -°F | Melting Range(°F) |
| at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
| 0.285 | 9.2 | 11 | 9.4 | 12.4 | 0.12 | 29 x 106 |
Product Features
Applications

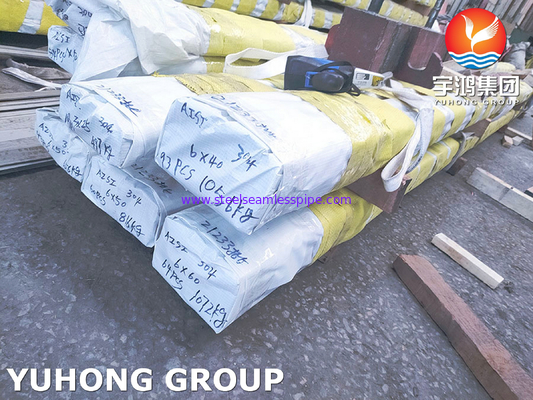

Packing
