Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | SA516 GR.70 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | According to client requirements/wooden case packing |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C AT SIGHT |
| Supply Ability: | 100 pcs per month |
| Name: | Baffle Plate | Material: | GR.70(CARBON STEEL) |
|---|---|---|---|
| USAGE: | Heat Exchanger,boiler, Pressure Vessel,steam Burbine,air Conditioning | PACKAGE: | PLYWOOD CASE |
| High Light: | Baffle Condenser Tube Sheet,Heat Exchanger Baffle Plate,Carbon Steel Condenser Tube Sheet |
||

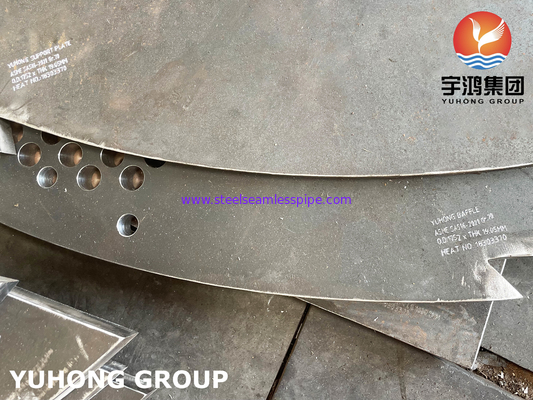

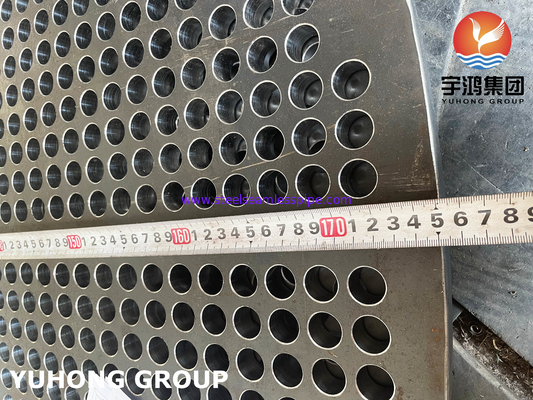

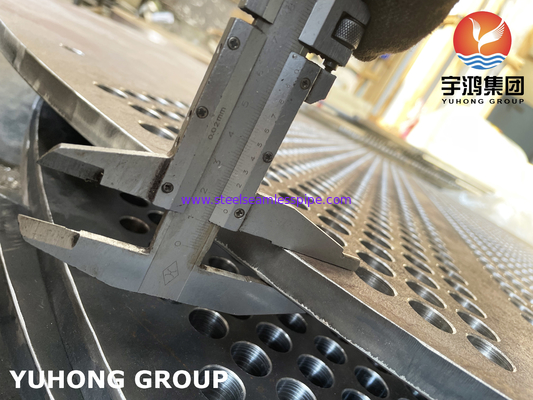

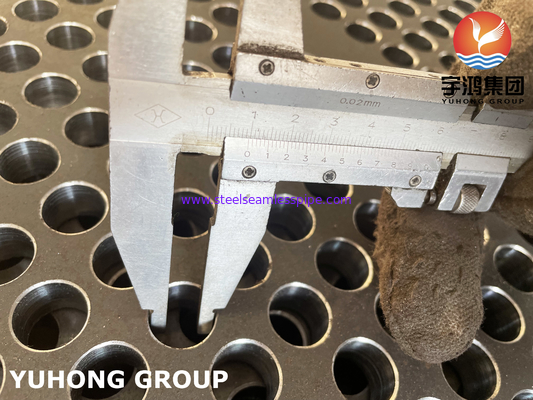

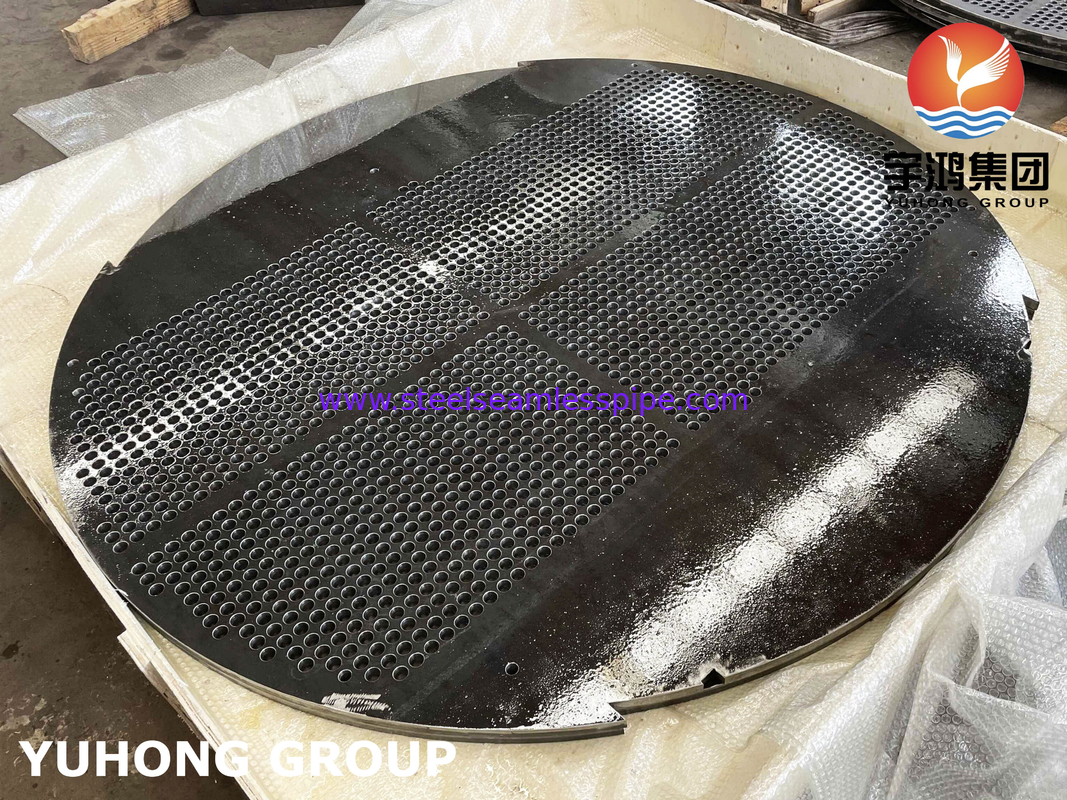

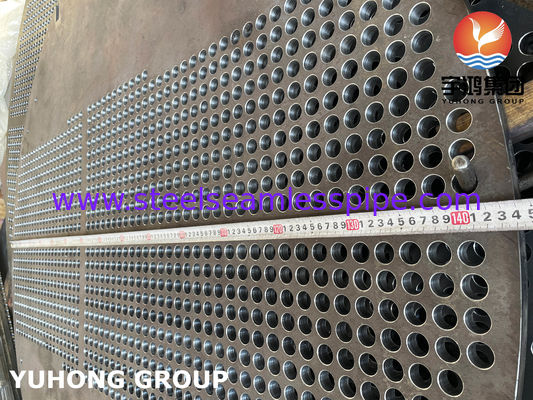

Introduction of baffle plate

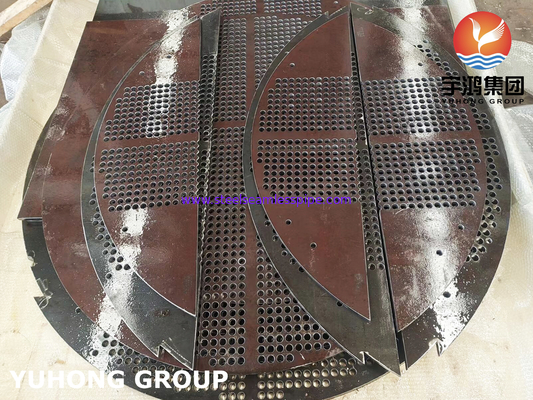

Baffles are components of shell and tube heat exchangers which are used to support and fix the tubes in a defined position. There are different types of baffle configurations. The most popular type is the perforated plate in the form of a segmented circle. The segmental baffles are arranged so that the segmented section faces are disposed opposite to each other along a bundle of tubes at specified interval. No Tube in Window (NTIW) baffles, Helically-shaped baffles, full support baffle are other types that can be fabricated in our company.
Baffle plate is widely used in shell and tube heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning,etc. The baffle sheet is mainly used for chemical containers, such as shell and tube heat exchanger, boiler, pressure vessel, condenser, central air conditioning, evaporator, water desalination with the function of supporting the tube bundle and improving heating efficiency.
The material of metal makes it not only has the very strong rigidity, and has a great deal of heat conduction performance.
Materials of Baffle Plates
| Type of materials | Technical Requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ ASME A 105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ ASME SA 182 F1, FS, F9, F11, F12, F22, F51, A350-LF3 |
| Titanium | ASTM/ASME SB381, Gr.1,Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ ASME SB151, UNS 70600(Cu-Ni 90/10), 71 SOO(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ ASME SB564, UNS10276 (C276) |
|
Claded materials |
ASTM/ ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1 |
| Titanium- Steel, Nickel-Steel.Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc |
Specification and technical parameters of baffle,tube sheet (For reference, not limited)
