| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | API , ABS, DNV, GL , LR, NK |
| Model Number: | ASTM A240 UNS N08904 DIN1.4539 904L Stainless Steel Plate, Sheet |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Water proof and Seaworthy Package |
| Delivery Time: | 7 DAYS |
| Payment Terms: | LC, TT |
| Product Name: | Stainless Steel Plate, Sheet | Standard: | ANSI, ASTM, ASME, JIS, DIN, EN |
|---|---|---|---|
| Material: | Stainless Steel 904L, 316L, 316, 321, 304, 304L, Etc. | Width: | As Resquest |
| Processing: | Bending, Welding, Decoiling, Punching, Cutting | Technique: | Cold Rolled, Hot Rolled |
| Finish: | Polished, Mirror, Bright, Hairline, Satin, Brushed, Ect. | Packing: | Water Proof And Seaworthy Package |
| High Light: | Polished Waterproof Precision Steel Strip,904L Precision Ground Stainless Steel Plate,Cold Rolled Stainless Steel Sheet 904L |
||
ASTM A240 TP904L SS904L Stainless Steel Plate, Sheet and Coils
ASTM A240, this specification covers chromium, chromium-nickel, and chromium-manganese-nickel stainless steel plate, sheet, and strip for pressure vessels and for general applications. It is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture, and ship components. It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen mesh etc.
Our main products: Stainless/Duplex/Nickel Alloy Pipe/Tube/Fitting/Flange:
1>.A:Stainless Steel Grade: TP304/304L/304H, TP310S/310H, TP316/316L/316Ti/316H, TP317L/317LN, TP321/321H, TP347/347H, NO8904(904L),
B:PH Stainless Steel:17-4PH(1.4542), 17-7PH(1.4568),15-7PH(1.4532)
C:Duplex Steel Grade: S31803(2205), S32750(2507), S32760, S32304, S32101, S31254(254Mo), 235Ma, UNS NO8926, NO8367.
D:Nickel Alloy Steel Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500.
Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840.
Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105.
2>.Standards: ASTM A213, A249, A269, A312, A789,A790, B163,B167, B444, B677,... and ASME,DIN, EN, JIS, BS, GOST,...
3>.Out diameter sizes range: 0.5mm~650mm. Wall thickness:0.05mm~60mm. Max. length under 26 meters/PC.
4>.Seamless & welded, Solution Pickling/Bright Annealed / Polished.
ASTM A240 SS904L Stainless Steel Plate Specification
Standard : ASTM A240 / ASME SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
ASTM A240 SS904L Stainless Steel Plate Chemical Composition
| Element | SS 904L |
| C | 0.020 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 19 – 23 |
| Ni | 23 – 28 |
| Mo | 4 – 5 |
| Cu | 1 – 2 |
ASTM A240 SS904L Stainless Steel Plate Mechanical Properties
| Element | SS 904L |
| Density | 7.95 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 71000 , MPa – 490 |
| Yield Strength (0.2%Offset) | Psi – 32000 , MPa – 220 |
| Elongation | 35% |
ASTM A240SS904L Stainless Steel Plate Application Industries
ASTM A240 TP904L Stainless Steel Plate Test Certificates

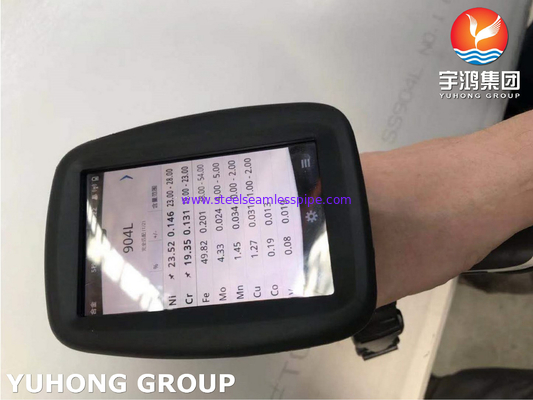

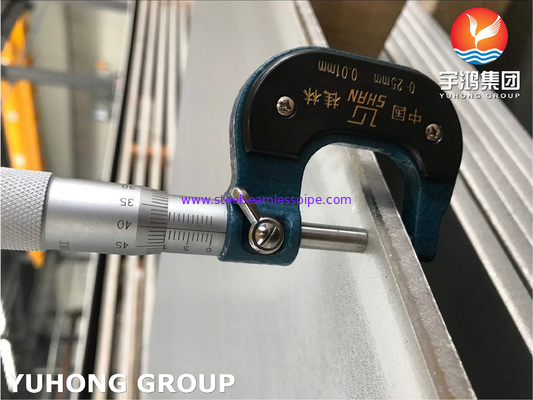

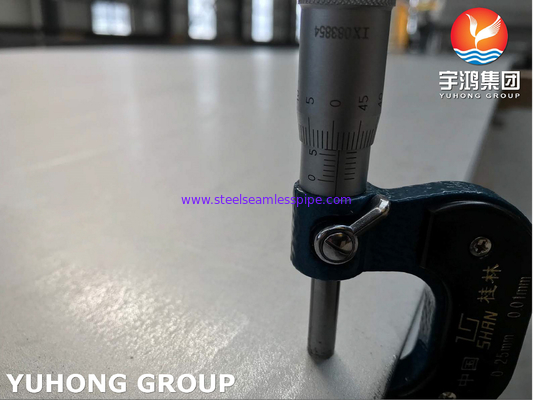

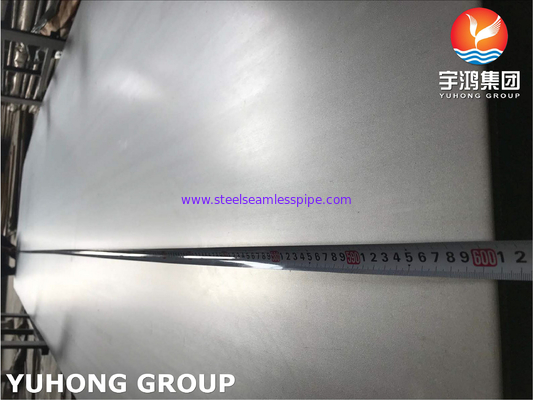

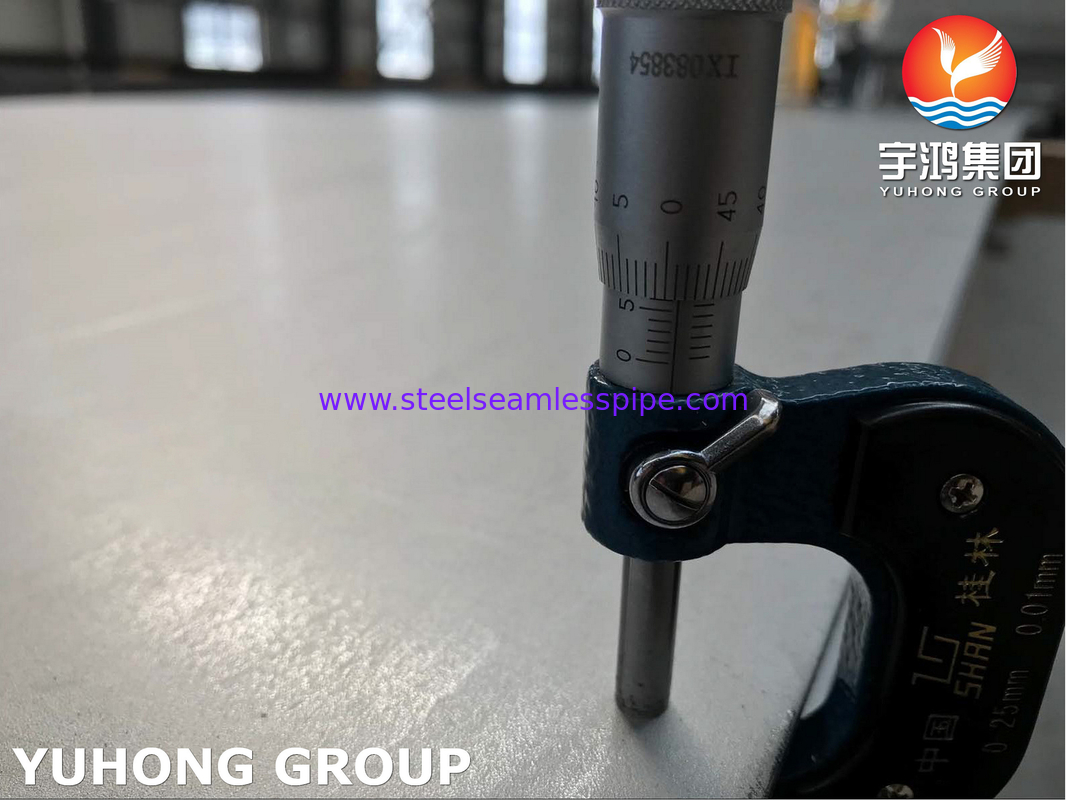

Material Testing
