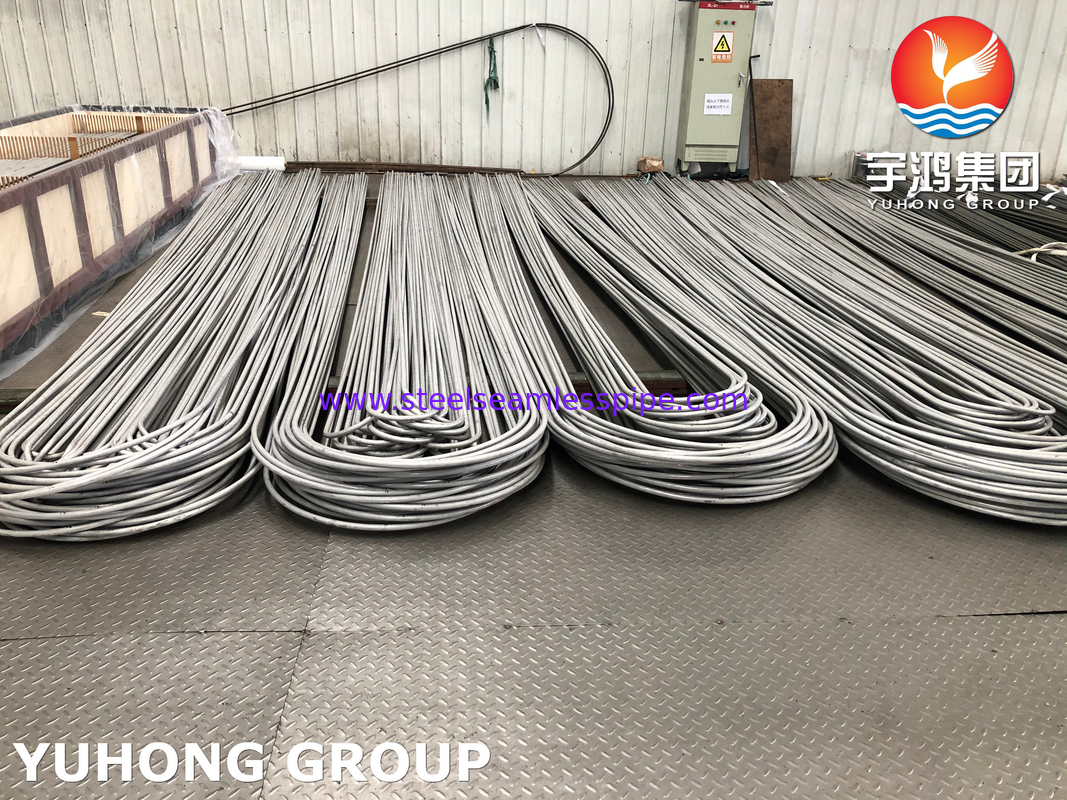

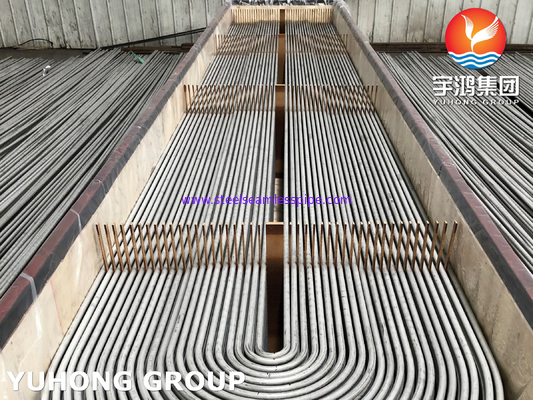

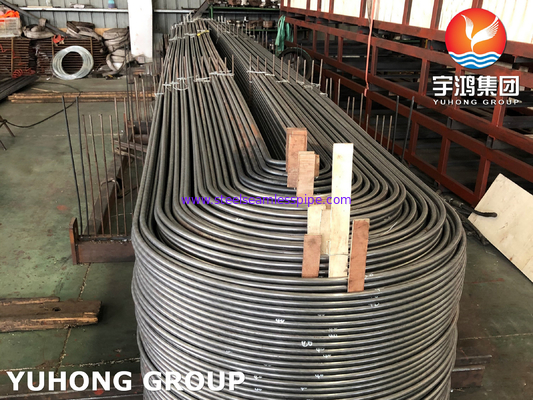

ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed

ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed

  • ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed
  • ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed
  • ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed
ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed
Product Details:
Place of Origin: China
Brand Name: Yuhong Group
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: A213 TP316L/304L
Payment & Shipping Terms:
Minimum Order Quantity: 100 kgs
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle
Delivery Time: 7 days
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Material Grade: TP304, TP304L ,TP304H, TP304N, TP309S, TP310S, TP310H, TP316, TP316L, TP316H, TP316Ti, TP316LN , TP317, TP317L , TP321, TP321H, TP347, TP347H, TP904L, S31254 , S30815 Standard: ASTM A213, ASME SA213, ASTM A269 , ASTM A270, ASTM A688
Surface: Pickled And Annealed, Bright Annealed , Polished NDT: HT, ET, UT , PT
High Light:

U Bend Stainless Steel Seamless Pipe

,

Pickled Annealed Seamless U Bend Tube

,

TP304L Stainless Steel U Bend Pipe

ASME SA213 TP304 Stainless Steel Seamless U Bend Tube for Heat Exchange application
After U bend (cold forming), heat treatment of bending portion may be required. nitrogen generating machine (to protect stainless steel tube surface during annealing). Temperature is controlled through the entire heat-treated area by fixed and portable infrared pyrometers.


ASTM A213 / A213M - 11a:Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A511 / A511M - 12:Standard Specification for Seamless Stainless Steel Mechanical Tubing
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe
DIN 17456-2010:GENERAL PUROSE SEAMLESS CIRCULAR STAINLESS STEEL TUBES.
DIN 17458-2010:Seamless Circular of Austenitic Stainless Steel Tube
EN10216-5 CT 1/2 : Stainless Steel Seamless Pipe & Tube
GOST 9941-81:SEAMLESS COLD- AND WARM-WORKED TUBES MADE OF CORROSION RESISTANT STEEL.
Others like BS, JIS standard or can supply
Material Grade:

American Standard Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Russia Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ


Size Range:

Production Outside Diameter Wall Thickness
Seamless Pipe 6.00mm to 830mm 0.5mm to 48mm


Final Finishing:
Solution Annealed & Pickled
Some of the quality tests carried out by us includes:

Corrosion Test Conducted only when specially requested by the client
Chemical Analysis Test done as per required quality standards
Destructive / Mechanical Testing Tensile | Hardness | Flattening | Flare | Flange
Reverse-bend and Re. flat tests Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections


Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

  • Eddy Current Testing
  • O.P Testing
  • Radiography Testing
  • Corrosion Testing
  • Micro Testing
  • Macro Testing
  • IGC Testing
  • Ultrasonic testing
  • Liquid Penetrate testing




ASTM A213 TP304L Stainless Steel Seamless U Bend Tube Pickeled And Annealed 0
