Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, BV, ISO, ASTM, SGS |
| Model Number: | ASTM B861 GR.2 / UNS R50400 / 3.7034 |
| Minimum Order Quantity: | 500KG |
|---|---|
| Packaging Details: | Ply-wooden Case / Iron Case |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Titanium Alloy Seamless Pipe | Standard: | ASTM B861 / ASME SB861 |
|---|---|---|---|
| Material: | GR.1, GR.2, GR.3, GR.7 , GR.7H, GR.9, GR.11, GR.12 | W.T.: | Schedule 10 To Schedule 160 |
| End: | Plain Ends / Beveled Ends | Length: | Single Random Length, Double Random Length And Customize Size |
| Type: | Seamless | Test: | ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. |
| Application: | Power Generation, Chemical Processing, Medical Industry, Etc. | ||
| High Light: | Alloy Titanium Seamless Pipe,Gr2 Titanium Alloy Pipe,Seamless Titanium Alloy Tube |
||

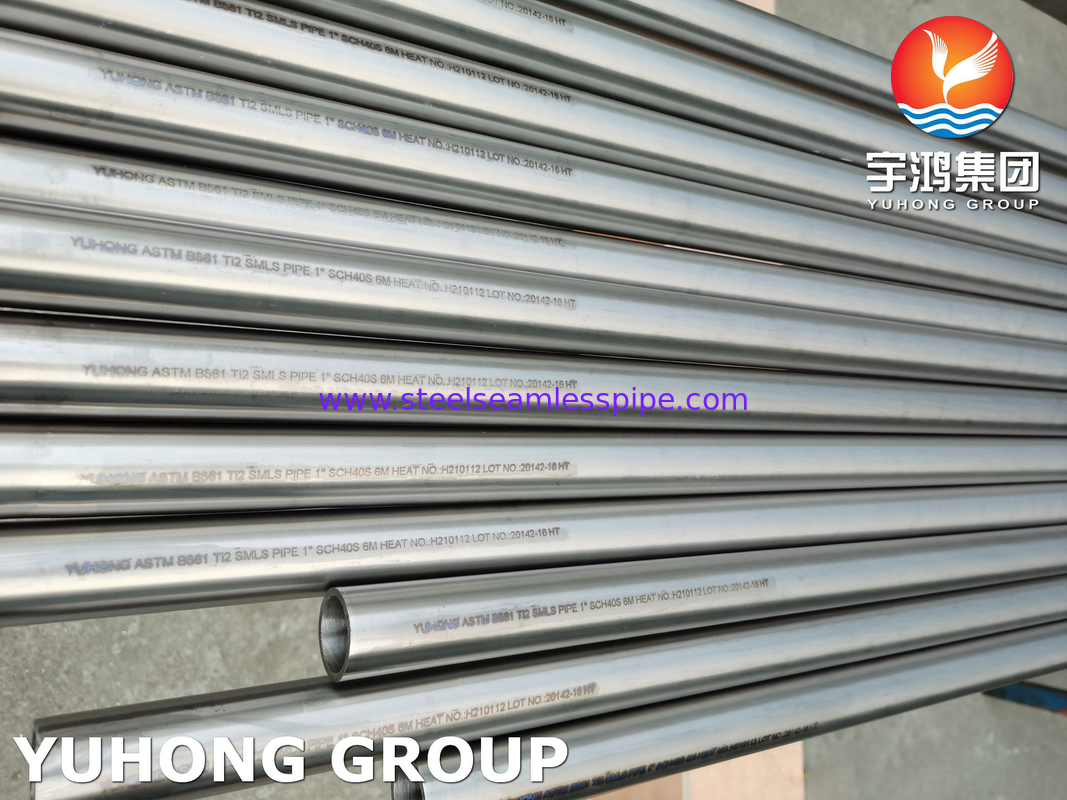

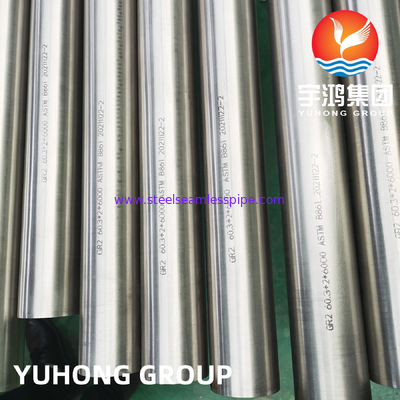

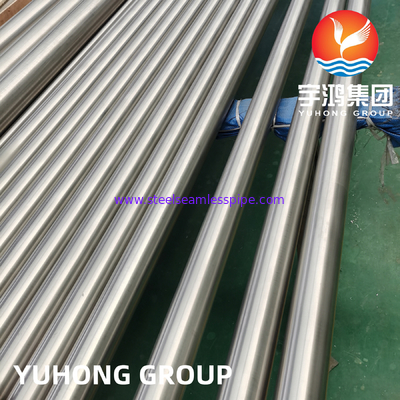

ASTM B861 Gr. 2 (UNS R50400 / 3.7034) Titanium and Titanium Alloy Seamless Pipe
ASTM B861 covers the requirements for 34 grades of titanium and titanium alloy seamless pipe intended for general corrosion resisting and elevated temperature service, Gr.1, Gr. 2, Gr.3, Gr.5 Gr. 7, etc. ASTM B861 Titanium Alloy Seamless Pipes is normally used in the solution – annealed condition, where this condition provides a coarse grain structure for the best creep – rupture strength. It also provides the best bend ductility at room temperature, where cooling should be by water quenching or rapid air cooling.
Grade 2 titanium is called the “workhorse” of the commercially pure titanium industry, thanks to its varied usability and wide availability. It shares many of the same qualities as Grade 1 titanium, but it is slightly stronger. Both are equally corrosion resistant. This grade possesses good weldability, strength, ductility and formability.
ASTM B861 Grade 2 Titanium Seamless Pipes Specification
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Specification | ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862 |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Grades | Grade 1 , Grade 2, Grade 3 , Grade 5 , Grade 7, Grade 8, Grade 9, Grade 11, Grade 12, Grade 23, UNS R50250, UNS R50400, UNS R56400, UNS R52400, UNS R56320, UNS R53400, Ti-6Al-4V, C-130AM, C-110M, Ti-4Al-3Mo-1V, Ti-6Al-2Sn-4Zr-2Mo, Ti-8Al-1Mo-1V, Ti-13V-11Cr-3Al, Ti-15V-3Cr-3Sn-3Al |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Type | Rolled / Cold Drawn / Welded / ERW |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Outer Diameter Size | Seamless - 1/4" NB to 12" NB (Nominal Bore Size) Welded / ERW- 1" NB to 16" NB (Nominal Bore Size) |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Wall Thickness | Schedule 10 to Schedule 160 |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Length | Single Random Length, Double Random Length And Customize Size. |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Ends | Plain Ends / Beveled Ends |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Delivery Conditions | As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM B861 Grade 2 Titanium Alloy Seamless Pipes Packaging | Bundle / Plywood case / Pallet / Plastic Cloth Wraps / Plastic End Caps |
ASTM B861 Grade 2 Titanium Seamless Pipe Chemical Compositions
| Element | Chemical Composition % | ||||||||
| Grade 1 | Grade 2 | Grade 3 | Grade 5 | Grade 7 | Grade 9 | Grade 11 | Grade 12 | Grade 23 | |
| Nitrogen, max | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
| Carbon, max | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 |
| Hydrogen, max | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 | 0.0125 |
| Iron, max | 0.20 | 0.30 | 0.30 | 0.40 | 0.30 | 0.25 | 0.20 | 0.30 | 0.25 |
| Oxygen, max | 0.18 | 0.25 | 0.35 | 0.20 | 0.25 | 0.15 | 0.18 | 0.25 | 0.13 |
| Aluminum | … | … | … | 5.5-6.75 | … | 2.5-3.5 | … | … | 5.5-6.5 |
| Vanadium | … | … | … | 3.5-4.5 | … | 2.0-3.0 | … | … | 3.5-4.5 |
| Tin | … | … | … | … | … | … | … | … | … |
| Ruthenium | … | … | … | … | … | … | … | … | … |
| Palladium | … | … | … | … | 0.12-0.25 | … | 0.12-0.25 | … | … |
| Molybdenum | … | … | … | … | … | … | … | 0.2-0.4 | … |
| Chromium | … | … | … | … | … | … | … | … | … |
| Nickel | … | … | … | … | … | … | … | 0.6-0.9 | … |
| Niobium | … | … | … | … | … | … | … | … | … |
| Ziconium | … | … | … | … | … | … | … | … | … |
| Silicon | … | … | … | … | … | … | … | … | … |
| Residuals, max each | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Residuals, max total | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Titanium | balance | balance | balance | balance | balance | balance | balance | balance | balance |
ASTM B861 Grade 2 Titanium Seamless Pipes Mechanical Properties
| Grade | Tensile Strength, min | Yield Strength (0.2% Offset) | Elongation 2 in. or 50 mm | |||||
| min | max | |||||||
| Ksi | (Mpa) | Ksi | (Mpa) | Ksi | (Mpa) | gage length min % | ||
| Grade 1 | 35 | (240) | 25 | (170) | 45 | (310) | 24 | |
| Grade 2 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
| Grade 3 | 65 | (450) | 55 | (380) | 80 | (550) | 18 | |
| Grade 5 | 130 | (895) | 120 | (828) | … | … | 10 | |
| Grade 7 | 50 | (345) | 40 | (275) | 65 | (450) | 20 | |
| Grade 9 | 90 | (620) | 70 | (483) | 45 | … | 15 | |
| Grade 11 | 35 | (240) | 25 | (170) | … | (310) | 24 | |
| Grade 12 | 70 | (483) | 50 | (345) | … | … | 18 | |
| Grade 23 | 120 | (828) | 110 | (759) | … | … | 10 | |
ASTM B861 Grade 2 Titanium Seamless Pipes Applications
